XCalibur1331
Freescale MPC8640D Processor-Based Conduction- or Air-Cooled 6U VME Module
The XCalibur1331 is a high-performance 6U VME single board, multiprocessing computer that is ideal for ruggedized systems requiring high-bandwidth processing and low power consumption. With dual PowerPC e600 cores running at up to 1.25 GHz, the MPC8640D delivers enhanced performance with AltiVec technology and IEEE 754 dual-precision floating point and efficiency for today's network information processing and other embedded computing applications.
The XCalibur1331 provides two separate channels of up to 4 GB DDR2-533 ECC SDRAM, two PrPMC/XMC slots, as well as 256 MB of NOR flash (with redundancy). The XCalibur1331 also supports four Gigabit Ethernet ports, I²C, PMC I/O, XMC I/O, and RS-232/422/485 serial ports out the front panel and/or P2/P0 connectors.
The XCalibur1331 is a powerful, feature-rich solution for the next generation of compute intensive embedded applications. Operating system support for Wind River VxWorks, Green Hills INTEGRITY, QNX Neutrino, and Linux is available.
- Freescale MPC8640D processor with dual PowerPC e600 cores at up to 1.25 GHz
- VME 6U module
- Conduction or air cooling
- Up to 4 GB DDR2-533 ECC SDRAM in two channels
- Up to 256 MB of NOR flash (with redundancy)
- Up to 4 GB of NAND flash
- Four Gigabit Ethernet ports
- Double-precision FPU
- Integrated AltiVec unit
- x8 PCI Express XMC sites
- One SATA 3.0 Gb/s port
- Three USB 2.0 ports (one configurable to the front panel and two to P0)
- Two RS-232/422/485 serial ports
- Two PrPMC/XMC interfaces
- Linux BSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP

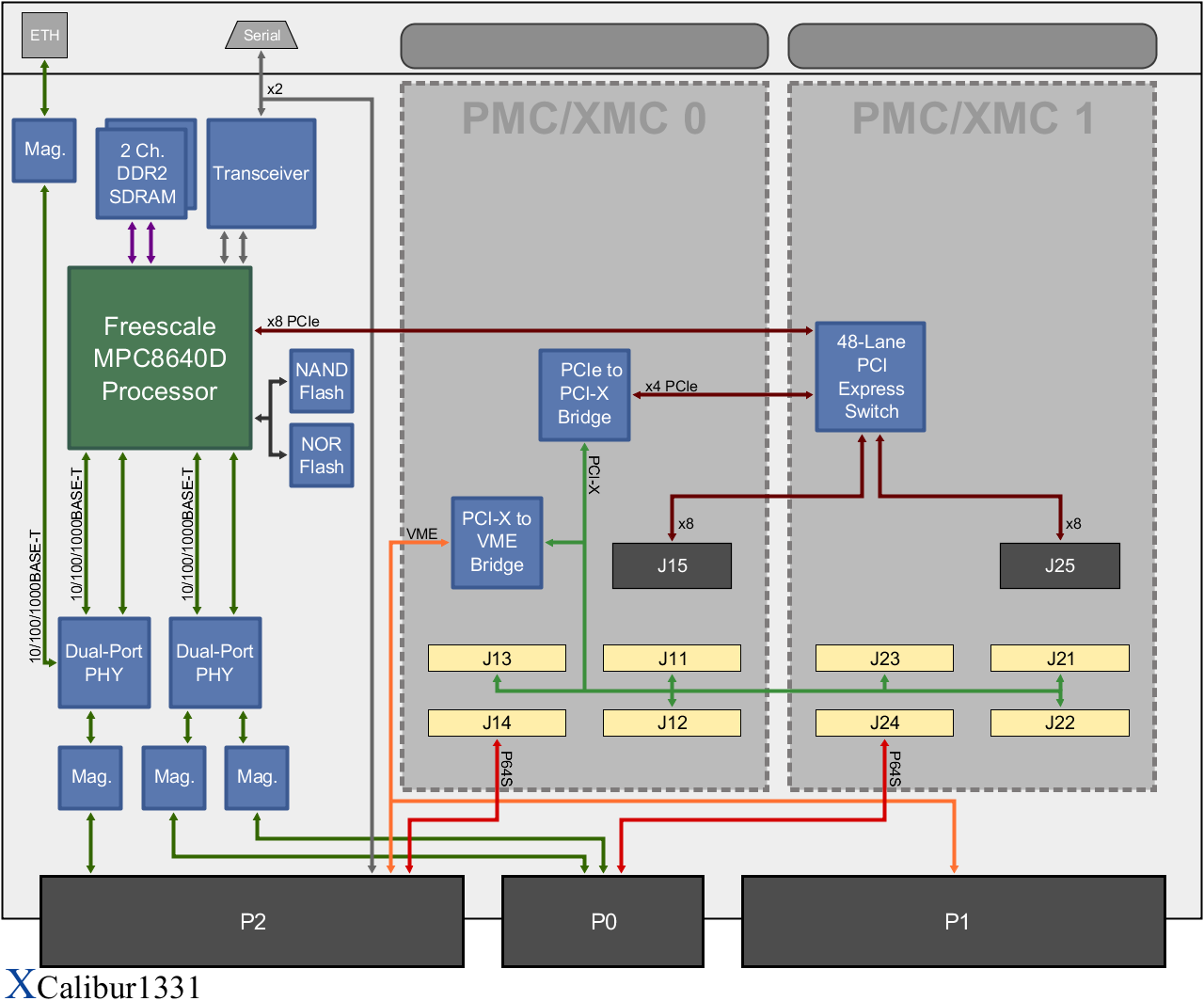

Click on the image above to view a larger version.
Processor
- Freescale MPC8640D processor
- Dual PowerPC e600 cores at up to 1.25 GHz
- 1 MB of L2 cache per core
- Integrated AltiVec
- IEEE 754 floating point unit
Memory
- Two channels of DDR2 ECC SDRAM, up to 4 GB
- Up to 4 GB of NAND flash
- Up to 256 MB of NOR flash (with redundancy)
- 16 kB I²C SEEPROM
VME
- VME64 (VITA 1-1994 R2002)
- VME64x (VITA 1.1-1997 R2003)
- 2eSST (VITA 1.5-2003)
- Ethernet on VME64x (VITA 31.1-2003)
- PMC I/O on VME (VITA 35-2000)
PrPMC/XMC
- PCI-X (64/32 bit, 100/66 MHz)
- PCI (64/32 bit, 66/33 MHz)
- x8 PCIe port to P15 and P25 (XMC)
Front Panel
- Two RS-232 serial ports
- One Gigabit Ethernet port
- One USB 2.0 port
- General purpose LEDs
Back Panel
- Dual RS-232/485 serial ports
- Three Gigabit Ethernet ports
- SATA 3.0 Gb/s port
- PMC I/O
- Two USB 2.0 ports
Software Support
- Linux BSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Greens Hills INTEGRITY BSP
Environmental Requirements
- Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
- Conformal coating available as an ordering option
Power Requirements
- Power will vary based on CPU frequency and application. Please consult factory.
Accessories
- Cable (90000075) - Serial, Micro D to DB-9, F to M, 3 ft.
- XTend300 (90070180) - 1x Female DB-9 to 2x Male DB-9 Serial Port Converter
