XCalibur1501

The XCalibur1501 is a high-performance 6U CompactPCI single board, multiprocessing computer that is ideal for ruggedized systems requiring high bandwidth processing and low power consumption. With dual PowerPC e500 cores running at up to 1.5 GHz, the MPC8572E delivers enhanced performance and efficiency for todayXCalibur1501s embedded computing applications.

The XCalibur1501 provides two separate channels of up to 4 GB (2 GB each) DDR2-800 ECC SDRAM, two PrPMC/XMC slots, as well as 256 MB of NOR flash (with redundancy). The XCalibur1501 also supports four Gigabit Ethernet ports, I²C, PMC I/O, XMC I/O, and RS-232/422/485 serial ports out the front panel or J5 connector.

The XCalibur1501 is a powerful, feature-rich solution for the next generation of compute intensive embedded applications. Operating system support for Wind River VxWorks, Green Hills INTEGRITY, QNX Neutrino, and Linux is available.

• Freescale MPC8572E PowerQUICC™ III processor with dual PowerPC e500 cores at up to 1.5 GHz
• Conduction or air cooling
• Up to 4 GB DDR2-800 ECC SDRAM in two channels
• Up to 256 MB of NOR flash (with redundancy)
• Up to 4 GB of NAND flash
• Four Gigabit Ethernet ports
• x8 PCI Express to XMC sites
• Two SATA 3.0 Gb/s ports to J5
• Three USB 2.0 ports (one configurable to front panel and two to J5)
• Two RS-232/422/485 serial ports
• Two PrPMC/XMC interfaces
• Linux BSP
• Wind River VxWorks BSP
• QNX Neutrino BSP
• Green Hills INTEGRITY BSP

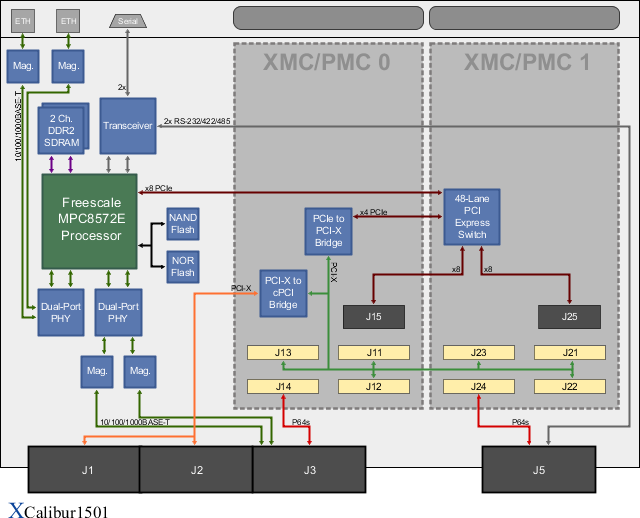

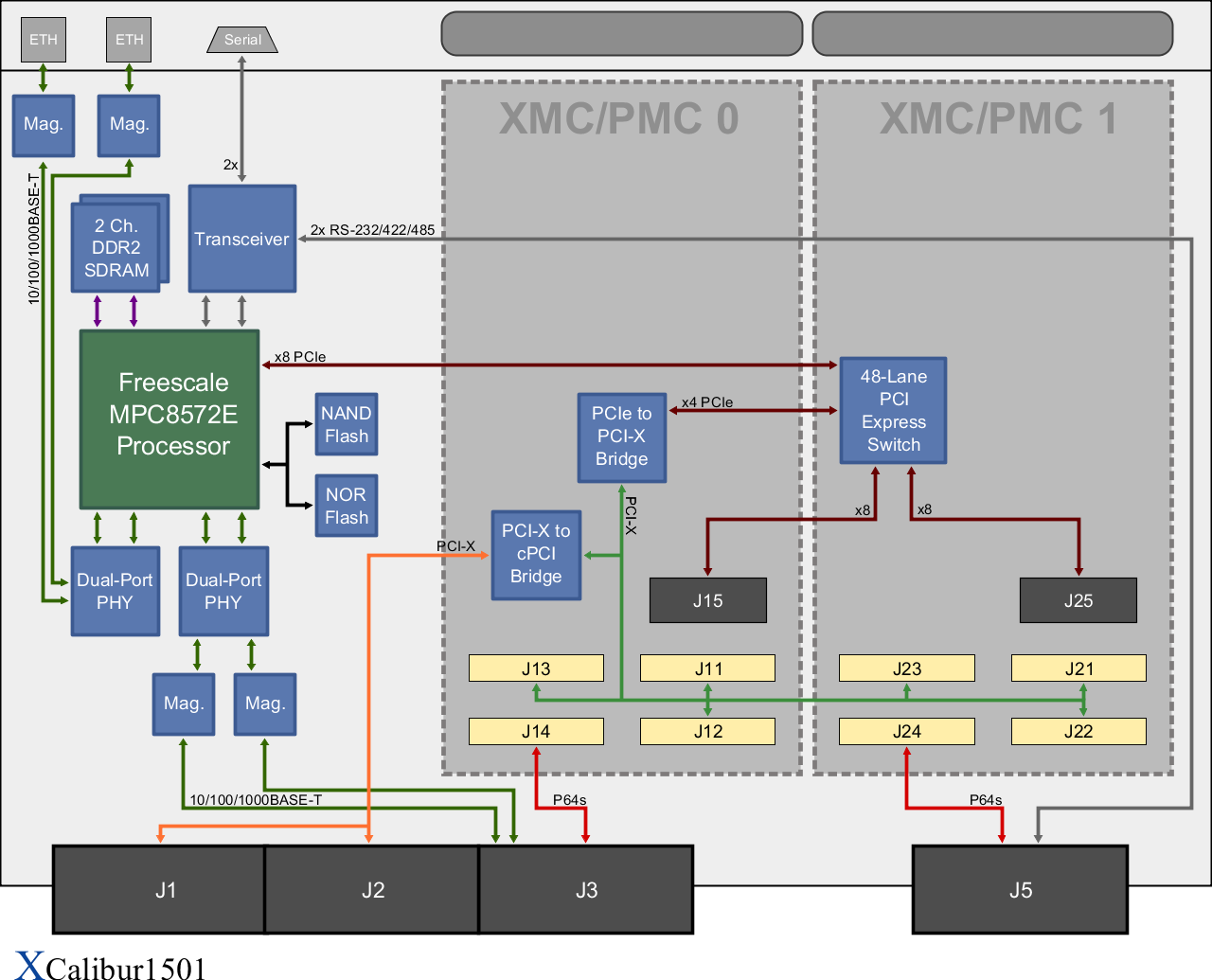

Click on the image above to view a larger version.

Processing Nodes

• Freescale MPC8572E PowerQUICC III processor
• Dual PowerPC e500 cores at up to 1.5 GHz
• 1 MB of shared L2 cache

Memory

• Two channels of DDR2 ECC SDRAM, up to 4 GB (2 GB each)
• Up to 4 GB of NAND flash
• Up to 256 MB of NOR flash (with redundancy)
• 16 kB I²C SEEPROM
• Trusted Platform Module (optional)

cPCI

• 66 MHz 64-bit PCI interface to J1 and J2
• PICMG 2.1 (hot swap support)
• PICMG 2.3 (PMC I/O to J3 and J5)
• PICMG 2.9 (dedicated IPMI controller)
• PICMG 2.16 (two 10/100/1000BASE-T Ethernet ports)

Front Panel

• Two RS-232 serial ports
• One or two Gigabit Ethernet ports
• One USB 2.0 port
• General purpose LEDs

Back Panel

• Two RS-232/485 serial ports
• Two Gigabit Ethernet ports
• Two SATA 3.0 Gb/s ports
• PMC I/O
• Two USB 2.0 ports

Software Support

• Linux BSP
• Wind River VxWorks BSP
• QNX Neutrino BSP
• Greens Hills INTEGRITY BSP

Environmental Requirements

• Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
• Conformal coating available as an ordering option

Power Requirements

• Power will vary based on CPU frequency and application. Please consult factory.

Accessories

• Cable (90000075) - Serial, Micro D to DB-9, F to M, 3 ft.
• XTend300 (90070180) - 1x Female DB-9 to 2x Male DB-9 Serial Port Converter
