XCalibur1541

The XCalibur1541 is a high-performance 6U VPX single board, multiprocessing computer that is ideal for ruggedized systems requiring high bandwidth processing and low power consumption. With dual PowerPC e500 cores running at up to 1.5 GHz, the MPC8572E delivers enhanced performance and efficiency for today's embedded computing applications.

The XCalibur1541 provides two separate channels of up to 4 GB DDR2-800 ECC SDRAM, two PrPMC/PrXMC slots, as well as 256 MB of NOR flash (with redundancy). The XCalibur1541 also supports four Gigabit Ethernet ports, PMC I/O, XMC I/O, and RS-232/422/485 serial ports out the front panel and/or VPX backplane connectors.

The XCalibur1541 is a powerful, feature-rich solution for the next generation of compute intensive embedded applications. Operating system support for VxWorks, Windows, QNX and Linux is available.

• Freescale MPC8572E PowerQUICC III processor with dual PowerPC e500 cores at up to 1.5 GHz
• 6U VPX module
• Conduction or air cooling
• Up to 4 GB DDR2-800 ECC SDRAM in two channels
• Up to 256 MB of NOR flash (with redundancy)
• Up to 16 GB of NAND flash
• Four Gigabit Ethernet ports
• x8 PCI Express lanes from switch to CPU, J15, and J25
• Four x4 (x16 total) PCI Express lanes from switch to P1
• Four SATA 3.0 Gb/s ports
• Three USB 2.0 ports
• Two RS-232/422/485 serial ports
• Two PrPMC/PrXMC interfaces
• Linux BSP
• Wind River VxWorks BSP
• QNX Neutrino BSP
• Green Hills INTEGRITY BSP

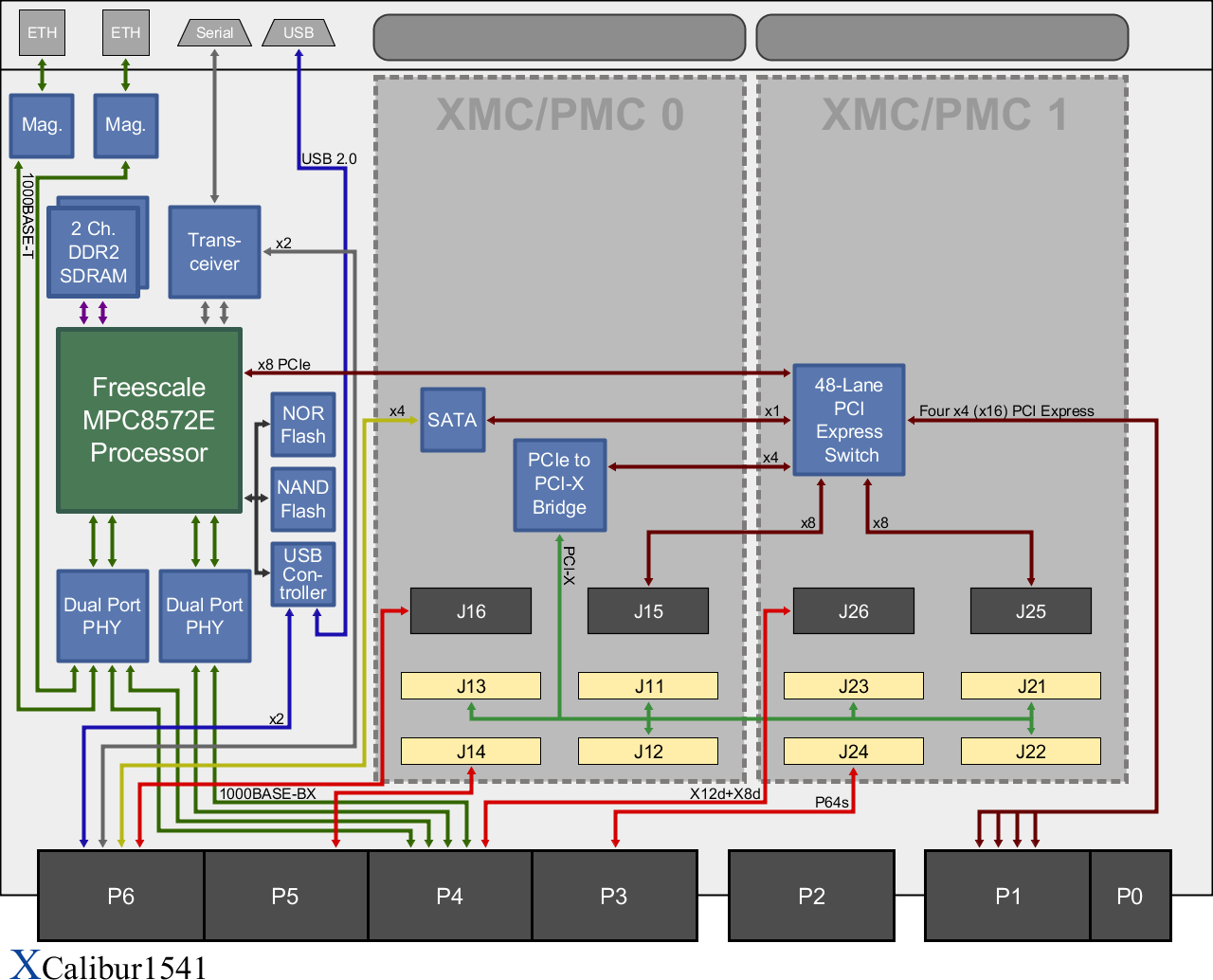

Click on the image above to view a larger version.

Processor

• Freescale MPC8572E PowerQUICC III processor
• Dual PowerPC e500 cores at up to 1.5 GHz
• 1 MB of shared L2 cache

Memory

• Up to 4 GBof DDR2 ECC SDRAM in two channels
• Up to 16 GB of NAND flash
• Up to 256 MB of NOR flash (with redundancy)
• 16 kB I²C EEPROM

VPX

• VITA 46.0
• VITA 46.4 (Four x4 PCIe lanes to P1)
• VITA 46.7 (Four 1000BASE-BX Ethernet ports to P4)
• VITA 46.9 (PMC and XMC I/O to P3, P4, P5, P6, mapping P3w1P4-P64s+X12d+X8d)

PrPMC

• PCI-X (64/32 bit, 100/66 MHz)
• PCI (64/32 bit, 66/33 MHz)

PrXMC

• x8 PCIe port to J15 and J25

IPMI

• Onboard management controller

Software

• Linux BSP
• Wind River VxWorks BSP
• QNX Neutrino BSP
• Greens Hills INTEGRITY BSP

Environmental Requirements

• Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
• Conformal coating available as an ordering option

Power Requirements

• Power will vary based on CPU frequency and application. Please consult factory.

Accessories

• Cable (90000075) - Serial, Micro D to DB-9, F to M, 3 ft.
• XTend300 (90070180) - 1x Female DB-9 to 2x Male DB-9 Serial Port Converter
