Dual PrPMC CompactPCI Carrier Card with PICMG 2.16 Switched Ethernet
Features
  • 100-MHz PCI-X CompactPCI and Local Bus Interfaces
  • Hot Swap Support
  • Two 10/100/1000 Mbs PICMG 2.16 Backplane Ethernet Ports
  • Complies with PICMG 2.0, 2.1, 2.3, 2.9, 2.16
  • VxWorks Driver and BSP
  • Linux LSP
  • IPMI Satellite Management Controller
Typical Applications
  • LAN/WAN Networking
  • Telecommunication Management Network
  • Data and Process Control
Description

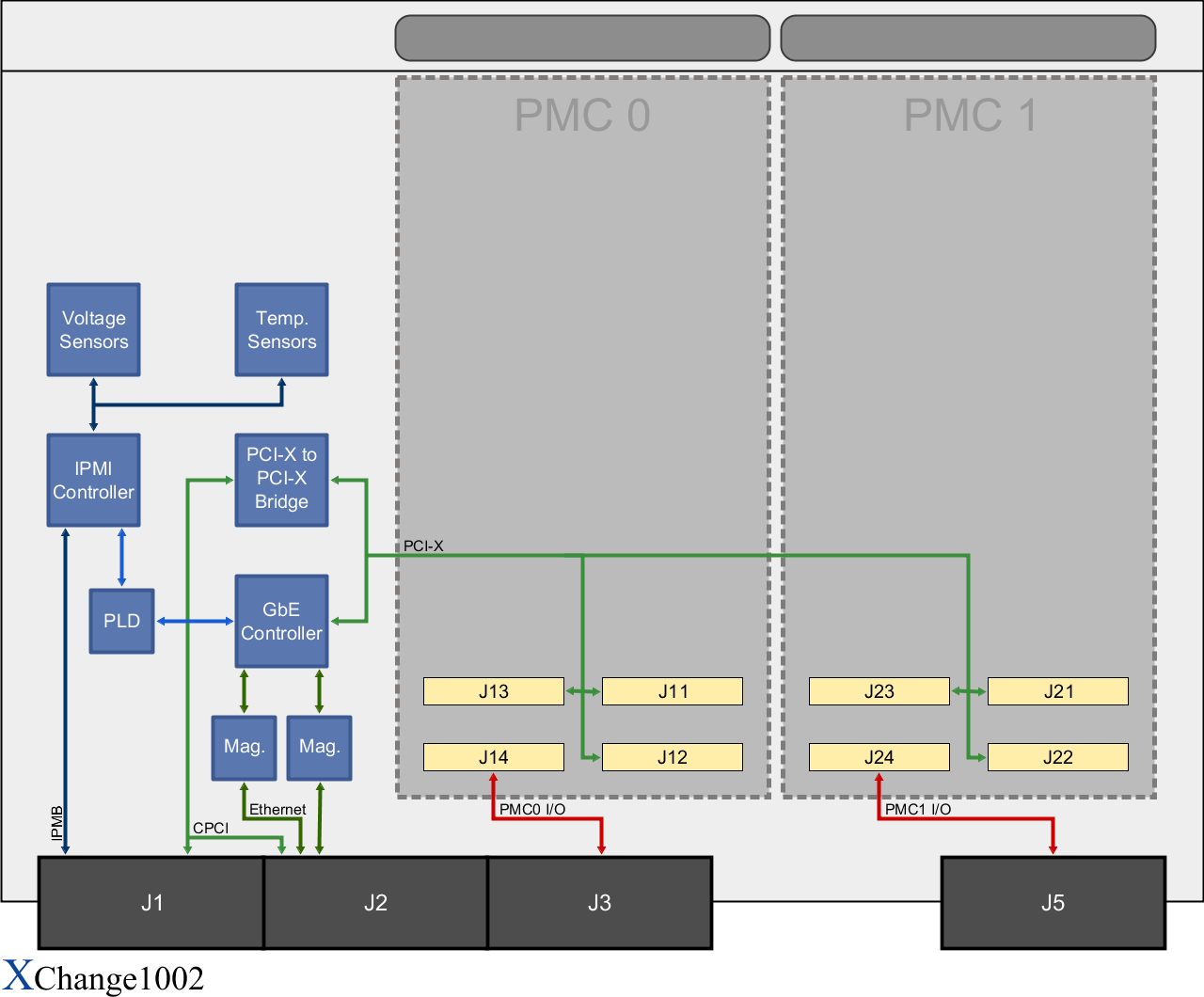

The XChange1002 is a versatile 6U CompactPCI dual PMC carrier card with a PICMG 2.16 Gigabit Ethernet backplane interface. The XChange1002 supports 100-MHz PCI-X on both the CompactPCI and local bus interfaces **.

PICMG 2.1 Hot Swap support allows XChange1002 to be installed into a live system without disrupting CompactPCI bus activity. In addition, the system management bus support allows the card to be powered down and reset remotely through the PICMG 2.9 IPMI interface. The IPMI interface also allows for the monitoring of voltage and temperature levels on the cards attached to the two PrPMC slots.

** XChange1002 uses a transparent bridge which allows the XChange1002 to operate as a peripheral carrier card in a CompactPCI environment.

PICMG 2.1
  • Hot Swap Support Allows Insertion and removal from an active CompactPCI bus
PICMG 2.3
  • Routes PMC I/O to P3 and P5
PICMG 2.9
  • Dedicated IPMI Microcontroller
  • Ability to control power and reset to the PMC slots
  • Monitors 1.5V, 2.5V, 3.3V, 5V, +12V, -12V
  • Monitors Board Temperature
PICMG 2.16
  • Auto negotiates between 10/100/1000 Mbps
  • High Bandwidth PCI-X Controller
PCI-X PMC Slots
  • Maximum Aggregate Bandwidth of 1GBps
  • PrPMC (Processor PMC) Support
Software
  • VxWorks Driver
  • Linux Driver
  • IPMI Drivers
Physical
  • 6U CompactPCI Form Factor
  • 233.35mm x 160mm
Power Requirements
  • +3.3V 0.61A 2.0W
  • +5.0V 0.00A 0.0W
  • +12.0V 0.00A 0.0W
  • -12.0V 0.00A 0.0W
Operating Temperature
  • 0º to +55ºC ambient, at board
  • -40º to 85ºC ambient, at board, for optional Industrial rating
Humidity
  • 0% to 85%
Storage Temperature
  • -40º to +70ºC
