Dual PrPMC CompactPCI Carrier Card with PICMG 2.16
Switched Ethernet
Features
- 100-MHz PCI-X CompactPCI and Local Bus Interfaces
- Autosense System / Peripheral Slot
- Hot Swap Support
- Two Gigabit PICMG 2.16 Backplane Ethernet Ports
- Complies with PICMG 2.0, 2.1, 2.3, 2.9, 2.16
- VxWorks Driver and BSP
- Linux LSP
- IPMI
Typical Applications
- LAN/WAN Networking
- Telecommunications Management Network
- Data and Process Control
Description

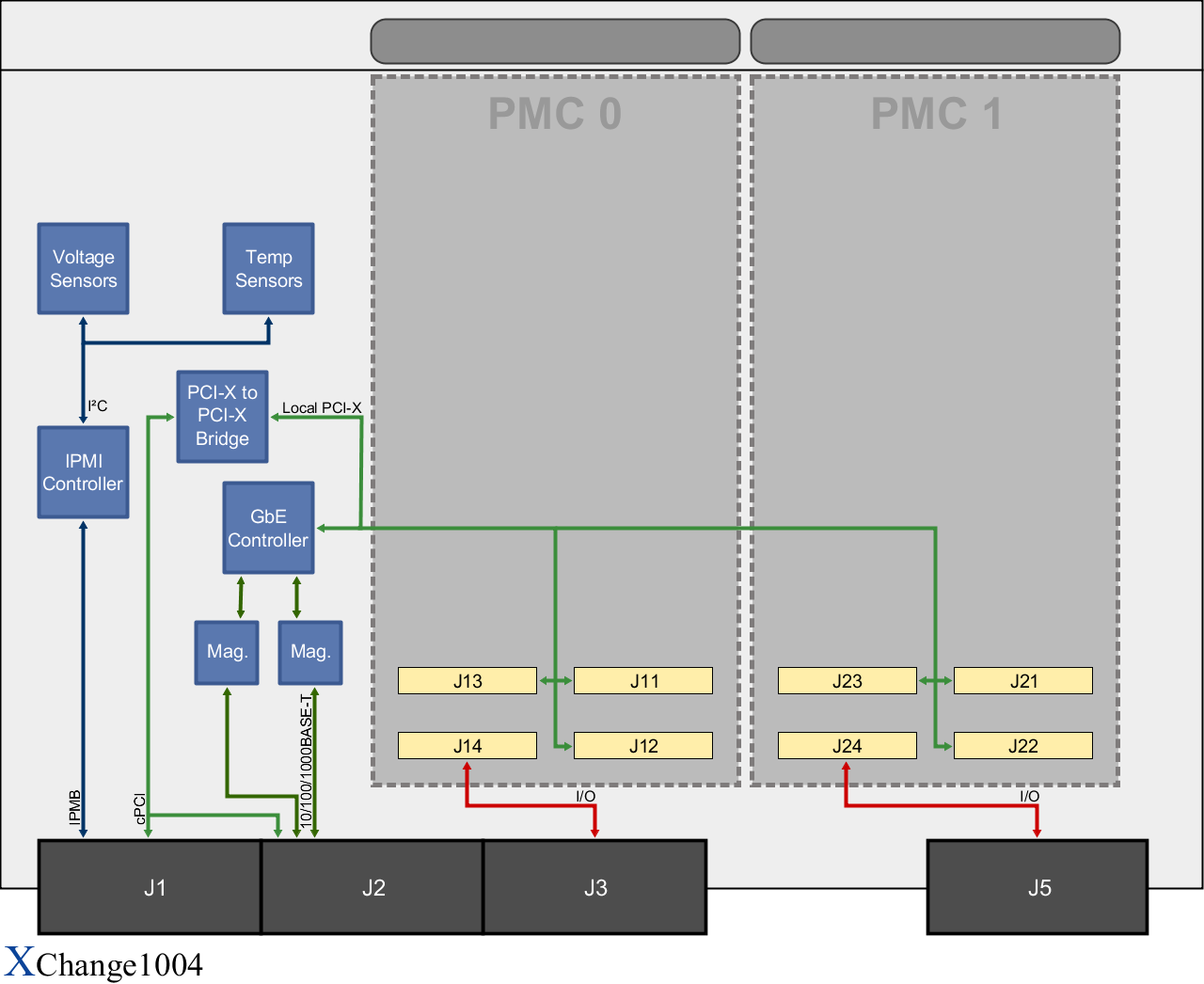

The XChange1004 is a 6U CompactPCI dual PMC carrier card with a PICMG
2.16 Gigabit Ethernet interface. The XChange1004 detects if it is a
system controller and configures the cPCI bridge to operate in
transparent mode.** As a peripheral, the cPCI bridge operates in
non-transparent mode which offers address isolation in addition to
electrical isolation.
PICMG 2.1 Hot Swap support allows the XChange1004 to be installed in a live system without disrupting CompactPCI bus activity. The XChange1004's Intelligent Platform Management Interface (IPMI) monitors on-board voltages and temperature levels.
** A PrPMC must be installed on the XChange1004 if it is used in the system slot, since there are no intelligent devices on the XChange1004.
PICMG 2.1
- Hot Swap support allows insertion and removal from an active CompactPCI bus
PICMG 2.3
- Routes PMC I/O to P3 and P5
PICMG 2.9
- Dedicated IPMI Microcontroller
- Ability to control power and reset to the PMC slots
- Monitors 1.5V, 2.5V, 3.3V, 5V, +12V, -12V
- Monitors Board Temperature
PICMG 2.16
- Auto negotiates between 10/100/1000 Mbps
- High Bandwidth PCI-X Controller
PCI-X PMC Slots
- Maximum Aggregate Bandwidth of 1 GB/s
- PrPMC (Processor PMC) Support
- 10 mm Stacking Height
Software
- VxWorks Driver and BSP
- Linux LSP
- Ethernet and IPMI Drivers
Physical
- 6U CompactPCI Form Factor
- 233.35 mm x 160 mm
- Board Weight: 13.5 oz
Power Requirements (Preliminary)
- +3.3V 0.61 2.0W
- +5.0V 0.00A 0.0W
- +12.0V 0.00A 0.0W
- -12.0V 0.00A 0.0W
Operating Temperature
- 0 to +55º C ambient
Humidity
- 0% to 85%
Storage Temperature
- -40º to +85º C
