Dual PrPMC Ruggedized cPCI Carrier With AMCC PowerPC 440GX and PICMG 2.16
In Extended Temp
Features
- AMCC PowerPC 440GX 533-800MHz Processor
- 133MHz PCI-X CompactPCI and Local Bus Interfaces
- Autosense System / Peripheral Slot
- Hot Swap Support
- Up to 512MB 266MHz DDR SDRAM
- 16-144MB Soldered Flash
- 512KB Socketed Flash
- Up to 1GB CompactFlash
- Front Panel 10/100 Mbps Ethernet and Serial Port
- Two 10/100/1000 Mbps PICMG 2.16 Backplane Ethernet Ports
- Complies with PICMG 2.0, 2.1, 2.3, 2.9, 2.16
- VxWorks Driver and BSP
- Linux LSP
Typical Applications
- LAN/WAN Networking
- Telecommunication Management Network
- Data and Process Control
Description

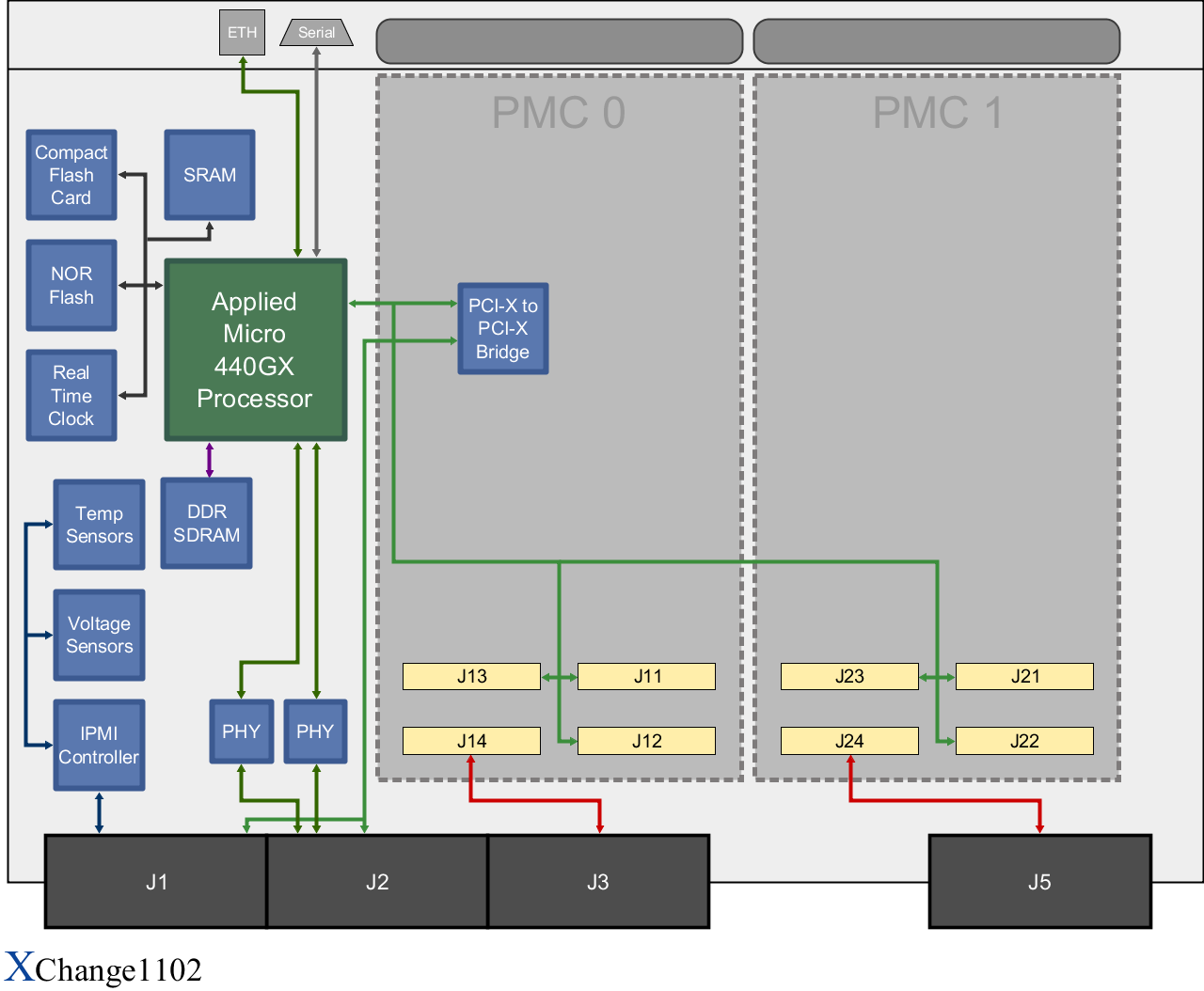

XChange1102 is a versatile 6U CompactPCI dual PrPMC carrier
card with a PICMG 2.16 Gigabit Ethernet backplane interface
supported in extend termperature range from -40 to +85C. With
PCI-X support on both CompactPCI and local bus interfaces,
XChange is ideal for applications requiring high bandwidth and
the flexibility that PMC modules offer in ruggedized systems
industry demands today.
Based on the AMCC PowerPC 440GX Embedded Processor, XChange1102 is armed with the processing power needed for demanding applications. With integrated PCI-X, DDR SDRAM, and Ethernet interfaces, the 440GX offers a highly optimized yet cost effective solution for packet processing and general computing.
Hot Swap support allows XChange1102 to be installed into a live system without disrupting CompactPCI bus activity. In addition, system management bus support allows the card to be powered down and reset remotely through the IPMI interface.
Processor
- AMCC PowerPC 440GX
- 533-800MHz Processor Speed
- 133MHz PCI-X Interface
- 32K L1 Instruction/Data Caches
- 256KB L2 Cache/SRAM
- 266MHz DDR SDRAM Interface
- Two 10/100/1000Mbps Ethernet Controllers and Two 10/100 Ethernet Controllers
Memory
- Up to 512MB DDR SDRAM
- 16-144MB Surface Mount Flash
- 512KB Socketed Flash
- Up to 1GB CompactFlash
- 512 Byte Serial EEPRMO
PICMG 2.1
- Hot Swap support allows insertion and removal from an active CompactPCI bus
PICMG 2.3
- Routes PMC I/O to P3 and P5
PICMG 2.9
- Dedicated IPMI Controller
- Ability to control power and reset to the PMC slots
- Monitors 1.2V, 1.25V, 1.5V, 2.5V, 3.3V, 5V
- Monitors Board Temperature
PICMG 2.16
- Auto negotiates between 10/100/1000Mbps
PCI-X PMC Slots
- Maximum Aggregate Bandwidth of 1GB/s
- PrPMC (Processor PMC) Support
- 10mm Stacking Height
Software
- VxWorks BSP
- Linux LSP
- Ethernet and IPMI Drivers
Front Panel
- Serial Interface
- 10/100 Ethernet
Physical
- 6U CompactPCI Form Factor
- 233.35mm x 160mm
- Board Weight: 10.2 oz
Power Requirements (*)
- +3.3V 2.94A 9.72W
- +5.0V 0.1A 0.5W
- +12.0V 0.00A 0.0W
- -12.0V 0.00A 0.0W
Operating Temperature
- -40 to +85C ambient
Humidity
- 0% to 85%
Storage Temperature
- -40 to +85C
Test Configuration*
- CPU at 533MHz, Memory at 266MHz. All onboard interfaces operating.
