Features
- VPX (VITA 46) 3U module
- Ruggedized Enhanced Design Implementation (REDI)
- Conduction or air cooling
- Supports four VPX PCI Express x4 lanes
- Supports three CompactPCI peripheral cards when used with the XTend4010
- Supports four CompactPCI peripheral cards if no PrPMC is placed and is used with the appropriate backplane
- Any XMC/PrPMC card may be used as a system controller
- Supports +5V/+3.3V PCI VIO power
Description

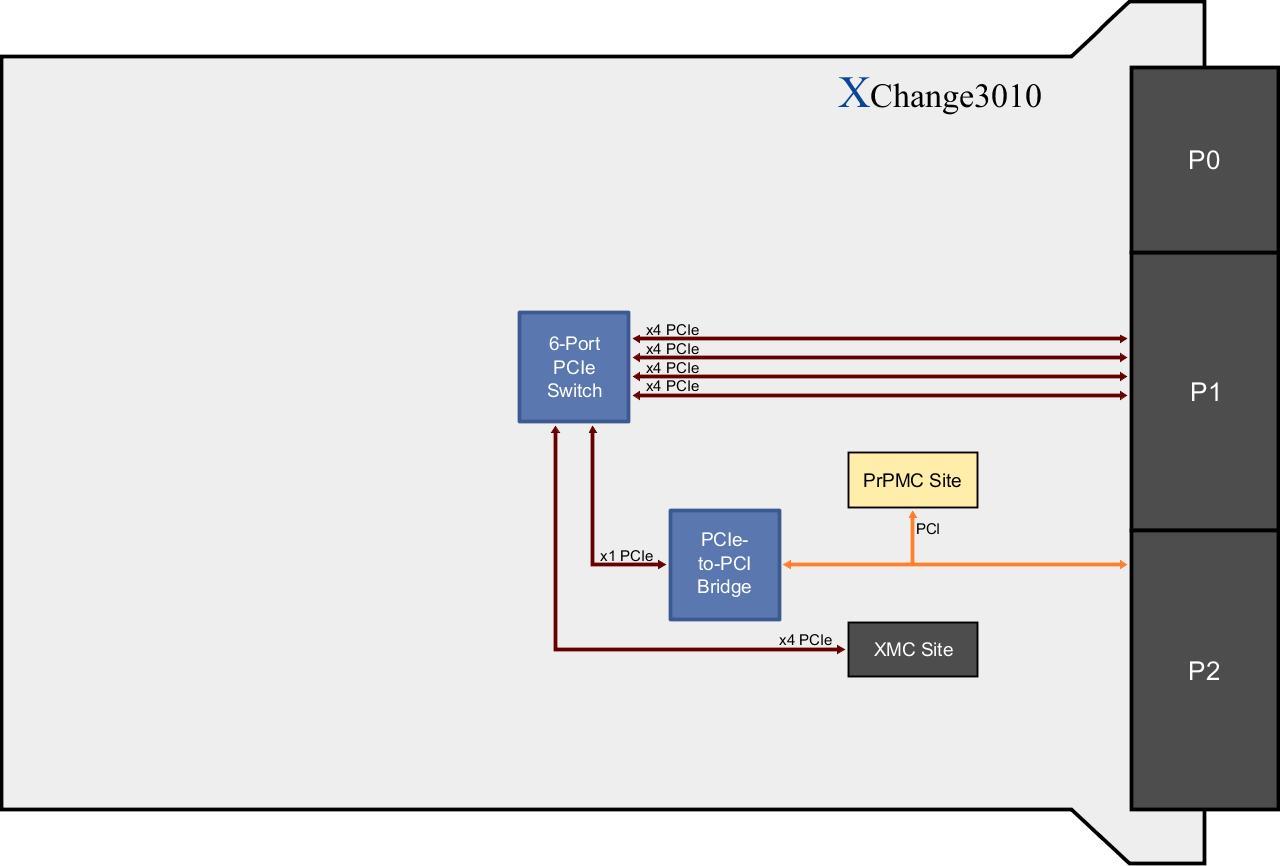

The XChange3010 is a 3U conduction- or air-cooled VPX-REDI module that provides a means of bridging from a serial PCI Express VPX fabric and parallel 32-bit PCI bus. This allows a system designer to migrate to VPX processor cards or other modern VPX devices without forcing the redesign of existing CompactPCI peripheral cards.
The PCI Express switch may be configured so that any one of the four VPX ports, the XMC site, or the PCI bus is the root complex.
Technical Specifications
VPX
- Provides the switch for a star PCI Express fabric
Compact PCI
- Supports three CompactPCI peripheral slots when used on the XTend4010
- Supports four CompactPCI peripheral slots if no PrPMC is placed and is used with the appropriate backplane
- 32-bit wide PCI bus
- 33-MHz or 66-MHz frequency operation
Ethernet
- Two 10/100-Mbps Ethernet lanes may be routed from either the XMC or the PMC site
Serial
- Serial I/O may be routed to either the XMC or the PMC site
Environmental Requirements
- Air-cooled operating temperature: -40 to 70 șC (ambient, with 200-LFM airflow)
- Conduction-cooled operating temperature: -40 to 85 șC (at thermal interface)
- Humidity: 0% to 95% non-condensing
- Storage temperature: -55 to 105 șC
Ruggedization
- Air-cooled: VITA 47 Class V1 vibration, Class OS1 shock
- Conduction-cooled: VITA 47 Class V3 vibration, Class OS2 shock
Power Requirements
- +3.3 V, 0.60 A, 2.0 W
- +5.0 V, 1.24 A, 6.2 W
- +12.0 V, 0.00 A, 0.0 W
- -12.0 V, 0.00 A, 0.0 W
