XChange4000

6U VME64x with Dual PrPMC Sites

XChange4000

Features

  • 6U VME64x - supporting VME64, VME64x and 2eSST
  • Two Processor PCI Mezzanine Card (PrPMC) sites
  • Conduction-cooled or air-cooled
  • 32-bit / 64-bit local PCI operation bus
  • 33-MHz or 66-MHz PCI operation
  • 66 MHz or 100 MHz PCI-X operation
  • P4V0-64 and P4V2-64ac I/O routing
  • VITA 31.1 Gigabit Ethernet backplanes

Description

The XChange4000 is a versatile 6U conduction- or air-cooled VME64x dual PCI-X PrPMC carrier card. With PCI-X support between the two PrPMC slots and the VME64x 2eSST bridge, the XChange4000 is ideal for applications requiring high bandwidth and the flexibility that PrPMC modules offer.

The XChange4000 includes a local +3.3 V power supply, so backplane +3.3 V is not required. When high-powered PrPMCs (beyond 12 W of 3.3 V per PrPMC) are required, the XChange4000 may be built up to use backplane 3.3 V power instead of the local supply.

Technical Specifications

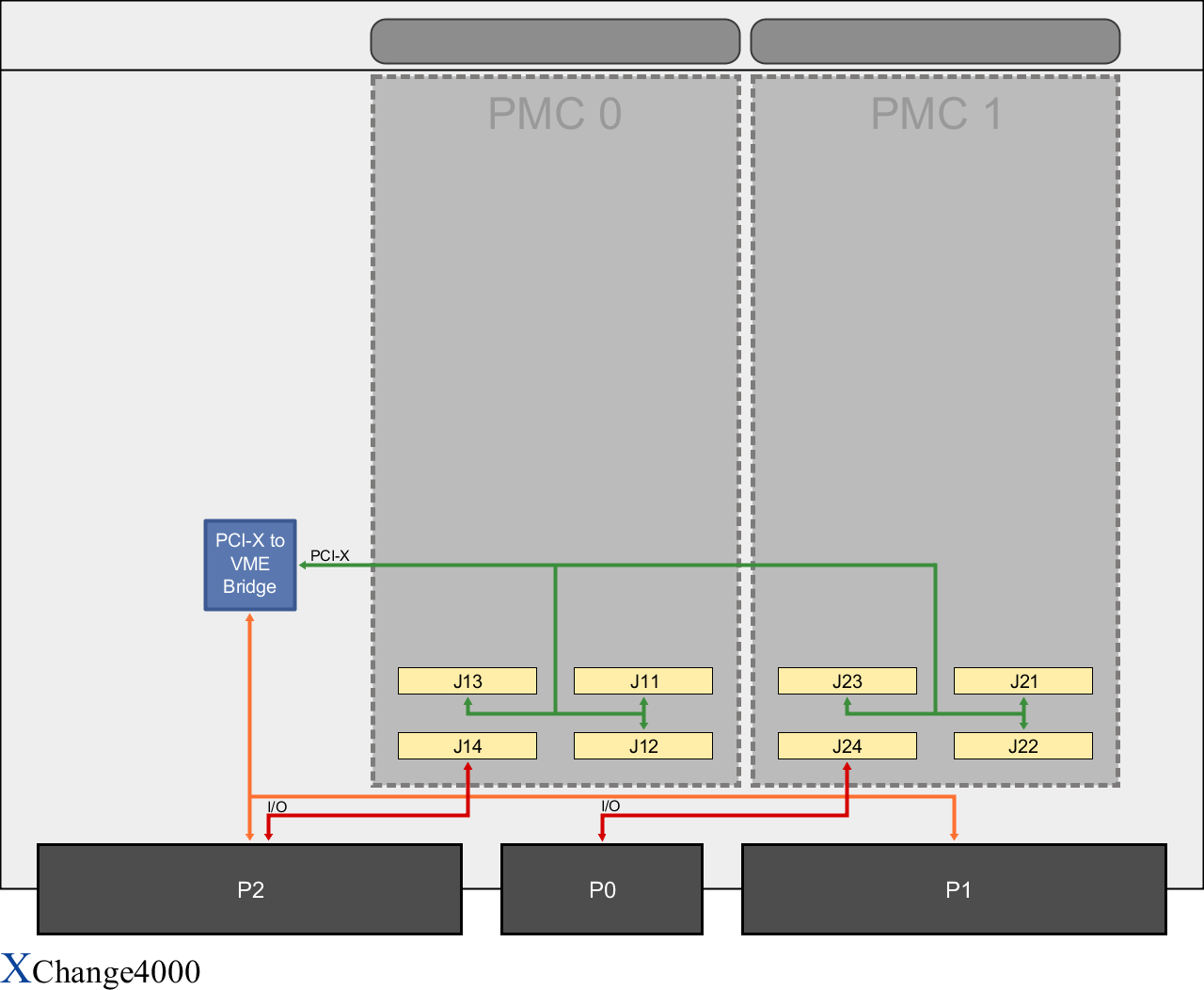

XChange4000 Block Diagram

VME

  • VME64 (ANSI/VITA 1-1994 R2002)
  • VME64x (ANSI/VITA 1.1-1997 R2003)
  • 2eSST (ANSI/VITA 1.5-2003)

PCI

  • Either PrPMC may be monarch
  • 64 or 32-bit wide PCI bus
  • 33-MHz or 66-MHz frequency PCI operation
  • 66-MHz or 100-MHz frequency PCI-X operation
  • 133-MHz PCI-X operation possible when a single, supported PrPMC is used
  • +3.3 V PCI VIO

IPMI

  • IPMI system management support options are available

Environmental Requirements

  • Operating temperature: 0 to 70 șC (ambient when air cooled)
  • Operating temperature: -40 to 85 șC (at thermal rail when conduction cooled)
  • Humidity: 0% to 85%
  • Storage temperature: -40 to 85 șC

Ruggedization

  • Air-cooled: VITA 47 Class V1, 20g shock
  • Conduction-cooled: VITA 47 Class V3, 40g shock

Power Requirements

  • +3.3 V, 0 A, 0 W
  • +5.0 V, 0.6 A, 3.0 W
  • +12.0 V, 0 A, 0 W
  • -12.0 V, 0 A, 0 W
