XIt1003

The XIt1003 is a 6U cPCI transition module that hosts two PIM interfaces and supports backplane I/O for several devices in X-ES's product line.

The XIt1003 supports two PIM interfaces to bring P14 I/O from two PMC modules out the rear panel. The PIM interfaces can support all standard PMC I/O Modules.

The transition module also breaks out PICMG 2.16 Gigabit Ethernet ports via RJ-45 connectors. Isolation on the Ethernet signals is a configurable option.

• 6U cPCI Rear Transition Module (VITA 46.10)
• Supports breakout of two PICMG 2.16 Gigabit Ethernet ports
• Supports two PMC I/O Module (PIM) interfaces to route PMC I/O out the rear panel
• One RS-232 RJ-45 interface

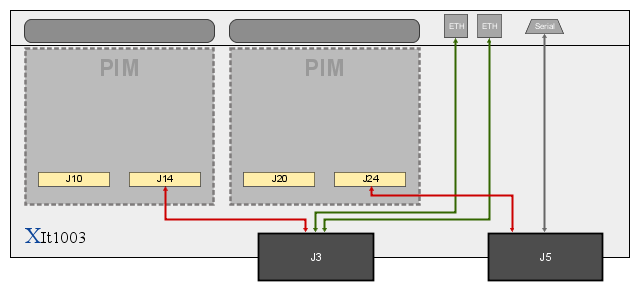

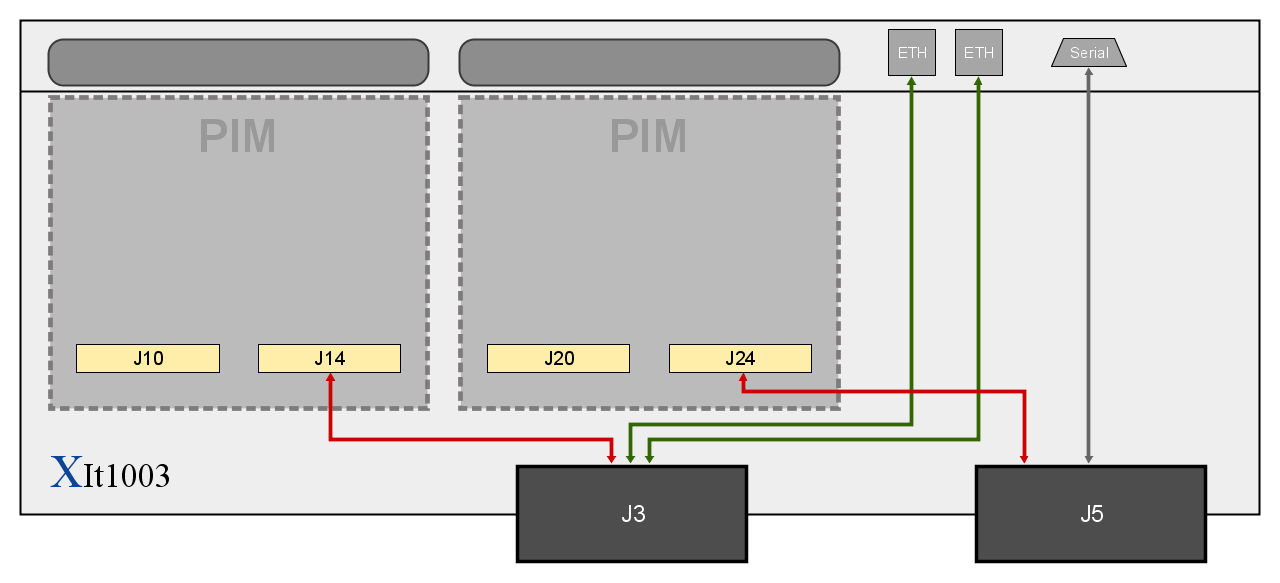

Click on the image above to view a larger version.

PIM Support

• Supports up to two PIMs

6U Backplane I/O Support

• Two PICMG 2.16 Gigabit Ethernet ports via RJ-45 connectors

Physical Characteristics

• 6U cPCI
• Dimensions: 233.35 mm x 85.5 mm

Environmental Requirements

• Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
• Conformal coating available as an ordering option
