PMC I/O Module (PIM) For the XPort1000 PrPMC Module
Features
  • PIM Module
  • Two PMC Connectors
  • One 120-pin Connector
Typical Applications
  • For Use With XIt1003
  • XPort1000 Series Rear I/O
Description

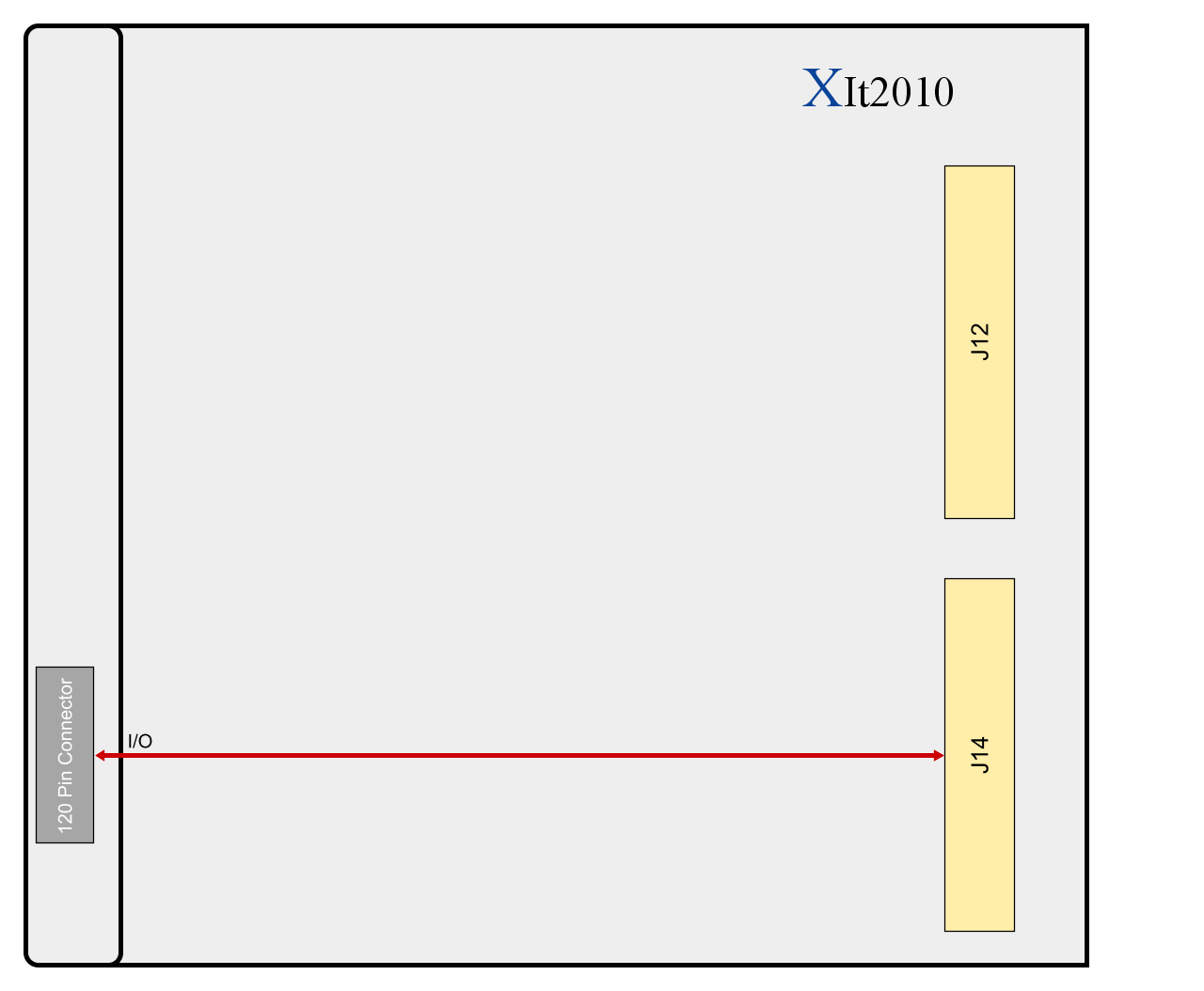

XIt2010 is a PMC I/O Module (PIM) that supports P14 I/O for the XPort1000 PrPMC module. It is intended to be mated with an XIt1003 to route P14 I/O from the XPort1000.

XIt2010 routes four 7 wire serial interfaces, consisting of TXD, RXD, TXC, RXC, RTS, CTS, and DCD, from the XPort1000 P14 connector to the XIt2010’s front panel. Additionally, either two RS-232 SMC interfaces or one RS-232 SMC and one 10/100 Ethernet interface can also be routed. Contact X-ES for cabling options for the XPort1000 and the XIt2010 front panel connectors.

XIt1003 Support
  • Mated with the XIt2010, the XPort1000’s P14 Serial Interface is provided out the rear panel of the XIt1003
XPort1000
  • One 120-pin Connector
  • 4 Serial Ports
  • 7 wire interface
  • Optional two RS-232 ports or one RS-232 port and one 10/100 Ethernet Port
  • Serial Cabling available
Physical
  • PMC I/O Module Form Factor
  • 74mm x 69mm
Operating Temperature
  • 0 to +55C ambient, at board
Humidity
  • 0% to 85%
Storage Temperature
  • -40 to +70C
