Features
- Supports two conduction-cooled 3U VPX slots
- Integrated heatsink fins
- Built-in cooling fans
- Reset switch
- J1 fabric A and B routed between slots
- J1 and J2 I/O RJ45 Gigabit Ethernet connectors
- J2 I/O micro DB-9 serial connectors
Description
The XPand1000 system is a low-cost debug, development, and display platform for 3U conduction-cooled VPX cards. It supports up to two 3U VPX boards with direct Ethernet and serial I/O access to each slot.

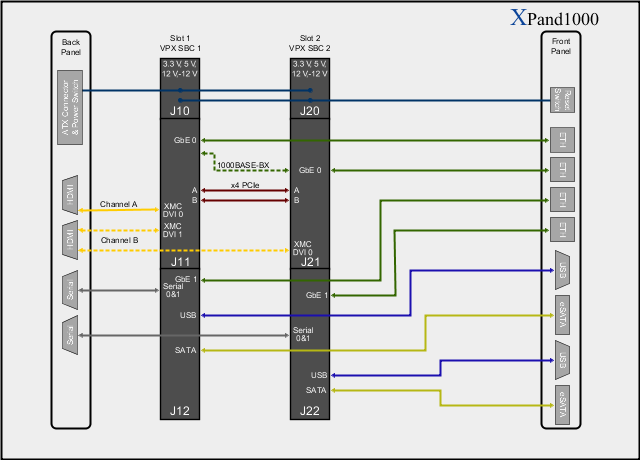

The XPand1000 backplane provies high-speed differential routing between the two slots. The J1 fabric slots A and B are cross-connected between the two VPX slots. Ethernet and RS-232 serial I/O are routed to RJ45 and micro DB-9 connectors for easy access.
The XPand1000 is the ideal solution for rapid prototyping of next generation VPX designs. Please contact X-ES sales for additional information.
Technical Specifications
Connectors
- Two 3U VPX slots
- ATX power supply connector
- Four RJ45 Ethernet connectors
- Two USB Type A connectors
- Two eSATA connectors
- Two micro DB-9 connectors (Molex p/n 83611-9006)
- Two mini HDMI connectors for XMC video
Utility Functions
- Front panel reset switch
- Back panel power switch
- Back panel power rail LED indicators
Fabric Routing
- J1 fabric A and B routed between slots
- Optional J1.D 1000Base-BX routed between slots
I/O Routing
- J1 fabric D ethernet routed to RJ45 ports
- J2 serial routed to micro DB-9 ports
- J2 Ethernet routed to RJ45 ports
- Contact X-ES for module compatibility
External Power Supply
- ATX power supply
Maximum Power
- 75W total
