Dual Gigabit Ethernet Conduction-Cooled PrPMC Based on the AMCC 440GX PowerPC Processor.
Features
  • AMCC PowerPC 440GX 533-800 MHz Processor
  • Conduction-Cooled Mezzanine Card without Faceplate I/O
  • Extended Shock and Vibration Tolerance
  • 133-MHz PCI-X PrPMC Interface
  • Up to 256 MB DDR333 SDRAM
  • Up to 128 MB NOR Flash
  • Up to 2 GB NAND Flash
  • Two 10/100/1000-Mbps Ethernet Ports
  • Two RS232 Serial Ports
  • Rear I/O
  • Integrated 256-KB SRAM or L2 Cache
  • VxWorks BSP
  • Linux LSP
Typical Applications
  • LAN/WAN Networking
  • Processing Node
  • Baseboard Controller
Description
The XPedite1002 is a high-performance, conduction-cooled Processor PMC Module (PrPMC) that dissipates less than 7.5W and is capable of operating at up to 85șC without faceplate I/O. The XPedite1002 is tolerant of extended shock up to 40g peak sawtooth for 11ms and vibration of 0.1g2/Hz from 5 to 2000 Hz. A PCI-X PMC interface provides the system designer with ample bandwidth for I/O intensive applications. Two rear panel Ethernet ports provide a flexible I/O interface by auto-negotiating between 10, 100, and 1000 Mbps operation. Ample flash for flash file systems is provided via NAND flash.

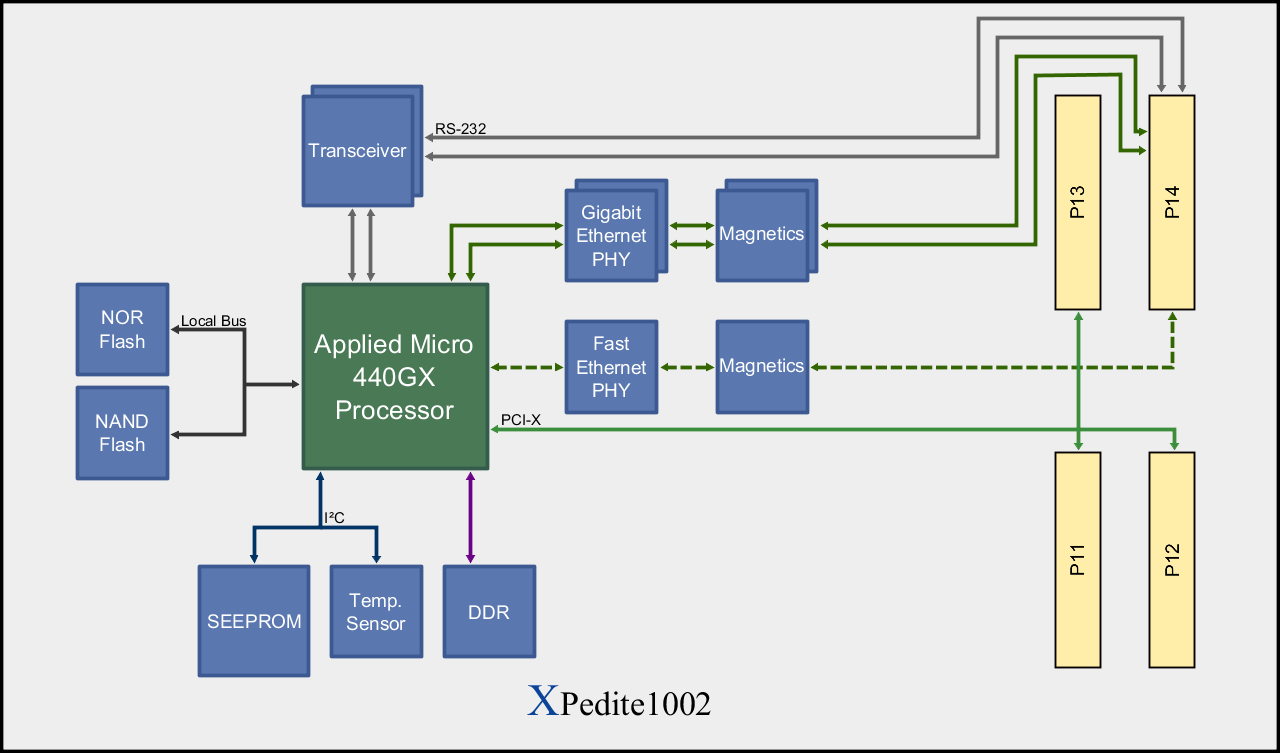

The XPedite1002 utilizes the low-power AMCC PowerPC 440GX embedded Processor. With integrated PCI-X, DDR SDRAM, and Ethernet interfaces, the 440GX offers a highly optimized solution for packet processing and general computing applications. The serial and Gigabit Ethernet interfaces are accessible through P14 I/O.

The XPedite1002 is ideal for PrPMC applications in extended temperature, shock, and vibration environments that require high bandwidth and processing performance. The 440GX processor dissipates only 3 Watts while operating at 667 Mhz and provides 1334 DMIPs of processing power.

Processor
  • AMCC PowerPC 440GX
  • 533-800 MHz Processor Speed
  • 133-MHz PCI-X Interface
  • 32K L1 Instruction/Data Caches
  • 256 KB SRAM or L2 Cache
  • DDR333 SDRAM Interface
  • 2 Gigabit Ethernet Controllers
  • 2 Serial Controllers
  • 2 I2C Controllers
Conduction Cooled
  • Dissipates less than 7.5W
  • Operates at up to 85șC without Faceplate I/O
Non-Volatile Storage
  • 32-128 MB NOR Flash
  • 512MB-2GB NAND Flash
  • 2 KB Serial EEPROM
Ethernet
  • Autonegotiates between 10/100/1000 Mbps
  • Rear I/O
DDR SDRAM
  • Supports up to 256 MB
  • Operates at up to 166 MHz
  • Peak memory bandwidth of 2.6 GBps
Rear I/O
  • Two Gigabit Ethernet Ports
  • One Fast Ethernet Port
  • Two RS232 Serial Ports
  • One I2C Port
Software
  • VxWorks BSP
  • Linux LSP
  • LynxOS 4.0
Physical
  • PMC Form Factor
  • 143.75mm x 74mm
  • Board Weight: 3.6 oz.
  • 10mm PMC Stacking height
Power Requirements (*)
  • +3.3V 2.27A 7.5W
  • +5.0V 0.00A 0.0W
  • +12.0V 0.00A 0.0W
  • -12.0V 0.00A 0.0W
Operating Temperature
  • -40 to +85șC ambient, at thermal interface
Storage Temperature
  • -40 to +125șC
Humidity
  • 0% to 85%
Shock
  • 40g peak sawtooth, 11ms
Vibration
  • 0.1g2/Hz from 5 to 2000 Hz
*Test Configuration
  • CPU at 533 MHz
  • DDR at 133 MHz clock rate
  • All Interfaces Active
