IBM 750GX PowerPC Processor PMC Module with Two Gigabit Ethernet Ports
Features
  • IBM 750GX PowerPC Processor running at up to 1.0 GHz
  • 133 MHz PCI-X PrPMC Interface
  • Up to 1 GB 400 MHz DDR SDRAM
  • 32-128 MB Soldered Flash
  • Two Gigabit Ethernet Ports
  • PTMC Configuration 5 P14 Ethernet
  • Two RS232 Serial Ports
  • Front or Rear I/O
  • Integrated 1MB L2 Cache
  • VxWorks BSP
  • Linux LSP
  • QNX BSP
  • INTEGRITY BSP
Typical Applications
  • LAN/WAN Networking
  • Processing Node
  • Baseboard Controller
Description
The XPedite4002 is a high-performance Processor PMC Module (PrPMC). A PCI-X PMC interface provides the system designer with ample bandwidth for I/O intensive applications. A total of two Ethernet ports provide a flexible I/O interface by auto-negotiating between 10, 100, and 1000 Mbps operation.

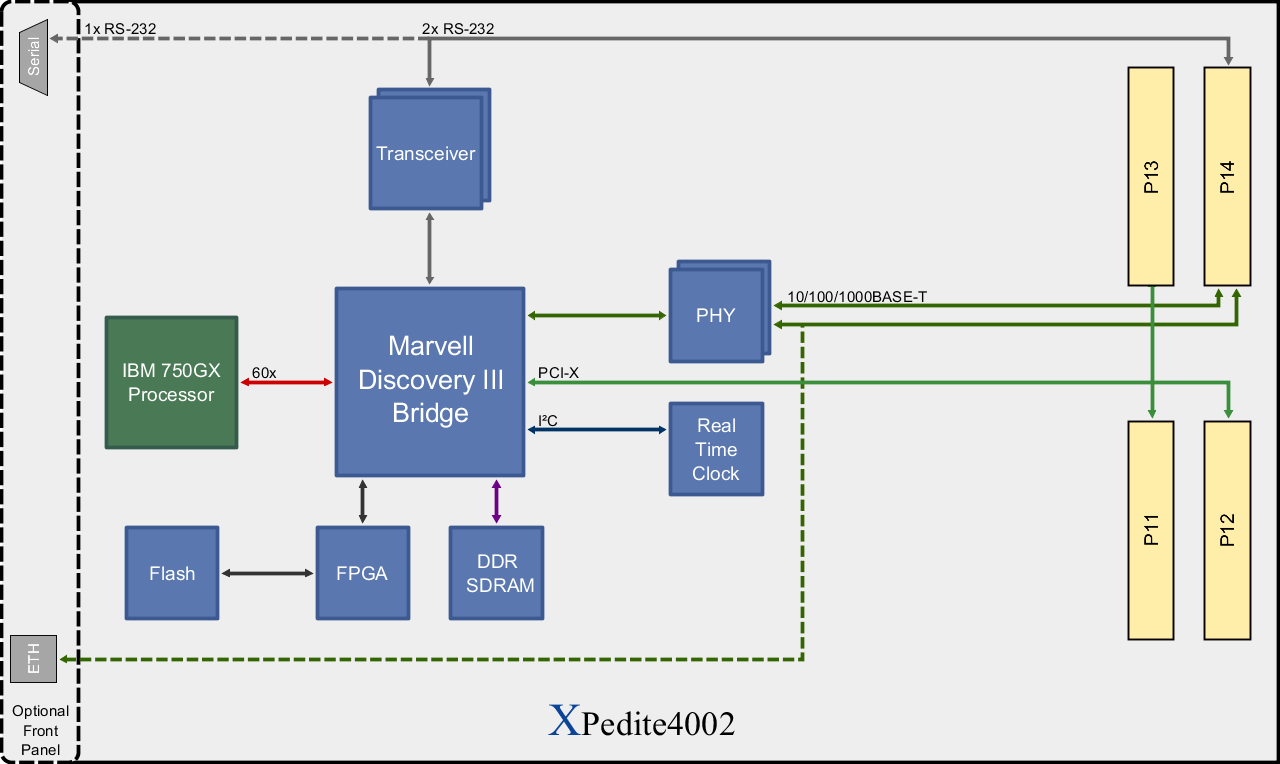

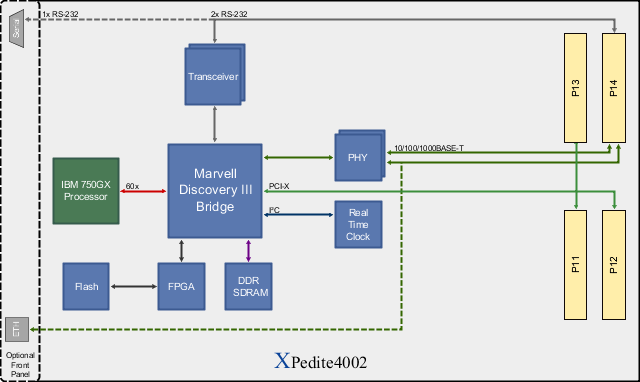

The XPedite4002 utilizes the IBM PowerPC 750GX microprocessor and Marvell Discovery III system controller. With integrated PCI-X, DDR SDRAM, and Ethernet interfaces, the XPedite4002 offers a highly optimized solution for packet processing and general computing applications. A serial and a Gigabit Ethernet interface are accessible through the front panel. One or Two Gigabit Ethernet interfaces, two serial interfaces, and two GPIO pins are accessible through the standard PTMC Configuration 5 (PICMG 2.15) P14 pinout. The XPedite4002 is available in both 10mm and 15mm PMC stacking heights.

The XPedite4002 is ideal for PrPMC applications requiring low cost and power yet high bandwidth and processing performance. The 750GX processor, while operating at 1.0 GHz, provides 2320 DMIPs of processing power.

Processor
  • IBM PowerPC 750GX
  • up to 1 GHz Processor Speed
  • 200 MHz 60x Bus
  • 32 KB L1 Instruction/Data Caches
  • 1 MB L2 Cache
Non-Volatile Storage
  • 16-128 MB Flash
  • 512 Byte Serial EEPROM
Ethernet
  • Two Ethernet Controllers
  • Autonegotiates between 10/100/1000Mbps
  • Front Panel / Rear I/O
DDR SDRAM
  • 400MHz Data Rate
  • Supports up to 1GB
Front Panel I/O
  • One Gigabit Ethernet Port
  • One RS232 Serial Port
  • Link and Activity LEDs
Rear I/O
  • PTMC Configuration 5 Pinout
  • One or Two Gigabit Ethernet Ports
  • Two GPIO pins
  • Two RS232 Serial Ports
RTC
  • M41T00 I2C TimeKeeper
  • 60 hour clock retention
Software
  • VxWorks BSP
  • Linux LSP
  • QNX BSP
  • INTEGRITY BSP
  • OSE BSP
Physical
  • PMC Form Factor
  • 10mm or 15mm stacking height
  • 149mm x 74mm
Power Requirements(*)
  • +3.3V 6.00A 19.8W
  • +5.0V 0.00A 0.0W
  • +12.0V 0.00A 0.0W
  • -12.0V 0.00A 0.0W
Operating Temperature
  • 0 to +55C ambient, at board
  • 200 LFM Airflow (15mm)
  • 300 LFM Airflow (10mm)
Humidity
  • 0% to 85%
Storage Temperature
  • -40 to +70C
(*)Tested Configuration
  • 750GX at 1.0 GHz
  • 55C Ambient Temperature
  • 300 LFM Airflow
  • 10mm Stacking Height
  • Both Ethernet Ports Linked at 1Gbps
  • All Interfaces Active
