Features
- Freescale MPC 8640D with dual e600 cores at up to 1.25 GHz
- Two rear-panel Gigabit Ethernet interfaces
- x8 PCI Express on P15
- x4 PCI Express on P16
- Two channels of up to 4 GB of DDR2-533 SDRAM
- 1 MB L2 cache
- Double-precision FPU
- Integrated AltiVec Unit
- Up to 256 MB soldered NOR flash
- Up to 4 GB NAND flash
- Two UARTs
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
- Linux LSP
Description

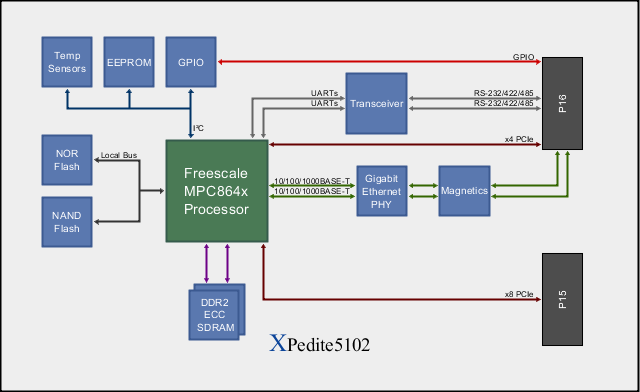

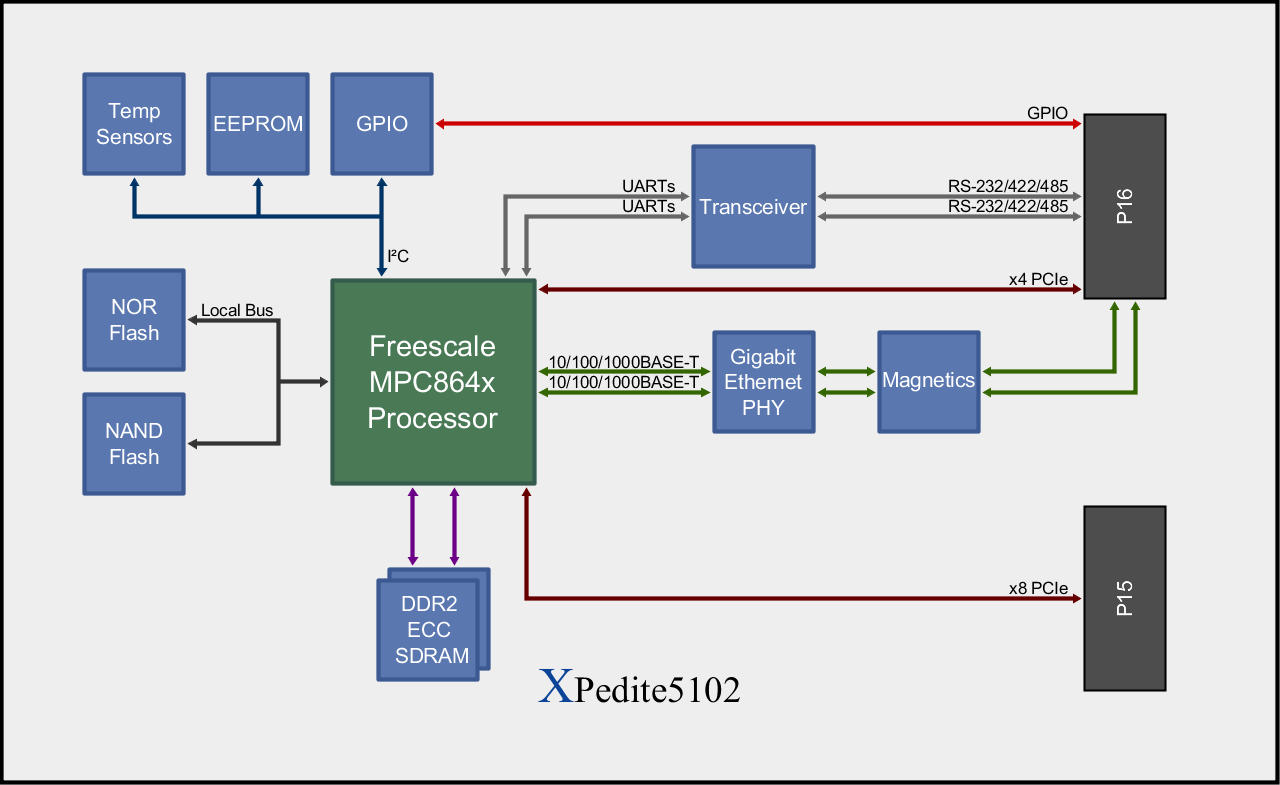

The XPedite5102 is a high-performance short form XMC featuring the Freescale MPC8640D processor. With dual PowerPC e600 cores running at up to 1.25 GHz, the processor delivers enhanced performance with AltiVec technology and IEEE 754 dual-precision floating point. The on-board processor provides dual channel DDR2-533 SDRAM, PCI Express, and dual Gigabit Ethernet interfaces, making the XPedite5102 an optimal solution for both communications processing and general computing applications.
The XPedite5102 provides dual ports of PCI Express on the XMC connectors to supply more I/O support without the cost of a switch. With software supplied by Extreme Engineering Solutions, the XPedite5102 can be installed on standard VME and CompactPCI (cPCI) platforms as well as custom motherboards that support XMC sites.
The XPedite5102 provides two Gigabit Ethernet interfaces and two RS-232/RS-485 serial ports conforming to the XMC.10 pinout on P16.
Technical Specifications
Processor
- Freescale MPC 8640D processor
- Embedded PowerPC dual e600 core at 1.067 to 1.25 GHz
- 2.3 MIPS/MHz
- 32 KB L1 instruction/data caches
- 1 MB L2 cache per e600 core
- Double-precision floating point unit
- Integrated MMU
- Dual x8 PCI Express
- Four 10/100/1000-Mbps, IEEE 802.3-compliant Ethernet controllers
- Two serial controllers
- Two I²C controllers
- Integrated AltiVec
Memory
- Two channels of up to 4 GB of DDR2-533 SDRAM
- Up to 256 MB NOR flash
- Up to 4 GB NAND flash
- 16 KB serial EEPROM
XMC
- x8 PCI Express (VITA 42.3) on P15
- Dual x4 PCI Express on P16
- IPMI support
- GPIO on user data
RTC
- M41T00 I²C Timekeeper
- 60-hour clock retention
Rear I/O
- Two Gigabit Ethernet ports
- Four GPIO pins
- Two RS-232/RS-485 serial ports
Software Support
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
- Linux LSP
Physical Characteristics
- XMC short form factor
- Dimensions: 139 mm x 74 mm, 10-mm stacking height
Environmental Requirements
- Supported ruggedization levels (see chart): Level 1, Level 2, Level 3, Level 4, Level 5
- Humidity: 0% to 95% non-condensing
Power Requirements
- 30 W per board
