Features
- Freescale MPC8572E PowerQUICC III processor with dual PowerPC e500 cores at up to 1.5 GHz
- Conduction cooling
- Extended shock and vibration tolerance
- Two channels of DDR2-667 ECC SDRAM, up to 2 GB (1 GB each)
- Up to x4 PCI Express or Serial RapidIO interface to P15
- PCI PrPMC interface
- Two Gigabit Ethernet ports to P14 or P16
- Two RS-232/422/485 serial ports to P14 or P16
- Up to 256 MB of NOR flash (with redundancy)
- Up to 4 GB of NAND flash
- Detachable front panel for development
- Linux BSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
Description

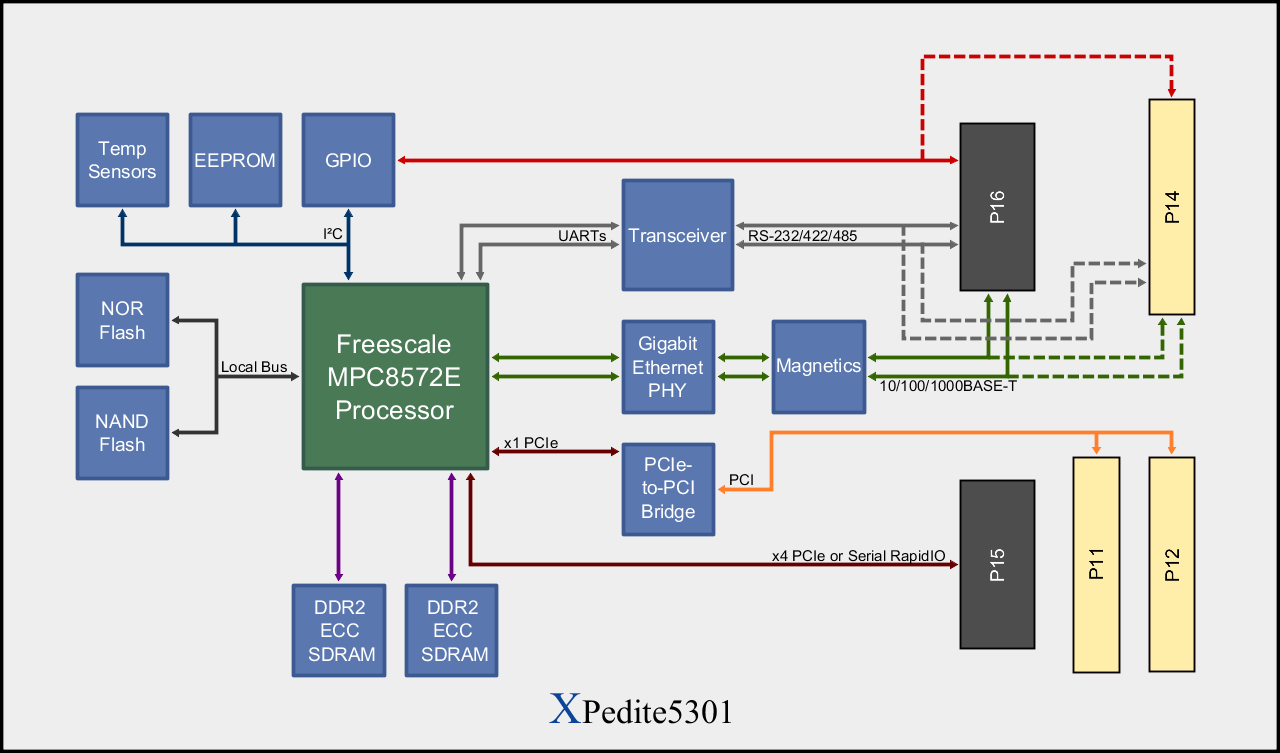

The XPedite5301 is a conduction-cooled XMC single-board computer based on the Freescale MPC8572E PowerQUICC III processor. With dual PowerPC e500 cores running at up to 1.5 GHz, the MPC8572E delivers enhanced performance and efficiency for today's network information processing and other embedded computing applications.
Complementing processor performance, the XPedite5301 features two separate channels of up to 1 GB each of DDR2-800 ECC SDRAM. A software-configurable SerDes interface (PCI Express or Serial RapidIO) to the XMC connector and a conventional PCI interface to the PMC connectors provide ample bandwidth to the MPC8572E. Two Gigabit Ethernet ports and two RS-232/422/485 ports are routed to P14 or P16 for additional system flexibility. A detachable front panel provides one 10/100/1000 Mbps Ethernet port and one RS-232 serial port for development.
The XPedite5301 provides a high-performance, feature-rich solution for current and future generations of embedded applications. Operating system support packages for the XPedite5301 include Wind River VxWorks, QNX Neutrino, Green Hills INTEGRITY, and Linux 2.6.
Technical Specifications
Processor
- Freescale MPC8572E PowerQUICC III processor
- Dual PowerPC e500 cores at up to 1.5 GHz
- 1 MB of shared L2 cache
Memory
- Two channels of DDR2-800 ECC SDRAM, up to 2 GB (1 GB each)
- Up to 256 MB of NOR flash (with redundancy)
- Up to 4 GB of NAND flash
PrPMC Interface
- 66/33-MHz PCI
- 32-bit bus interface
P15 XMC Interface
- Up to x4 configurable PCI Express or Serial RapidIO
P14/P16 PMC/XMC Interface
- Two 10/100/1000-Mbps Ethernet ports
- Two RS-232/422/485 ports
- 3.3V GPIO
Software Support
- Linux BSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
Physical Characteristics
- Conduction-cooled P/XMC form factor
- Dimensions: 143.75 mm x 74 mm
Environmental Requirements
- Supported ruggedization levels (see chart below):
Level 4, Level 5 - Humidity: 0% to 95% non-condensing
Power Requirements
- Maximum power consumption:
26 W (with 1.5-GHz processor),
23 W (with 1.33-GHz processor)
