Features
- Freescale MPC8572E PowerQUICC™ III processor with dual PowerPC e500 cores at up to 1.5 GHz
- Conduction or air cooling
- Extended shock and vibration tolerance
- Two channels of up to DDR2-800 ECC SDRAM, up to 4 GB (2 GB each)
- Configurable as system controller or peripheral
- Hosts a PrPMC or XMC
- PrPMC P14 I/O out J2
- Two 10/100/1000Base-T Ethernet ports out J2
- Two RS-232/422/485 serial ports out J2
- Up to 256 MB of NOR flash (with redundancy)
- Up to 4 GB of NAND flash
- Front I/O available via plugover module
- Linux LSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
Description

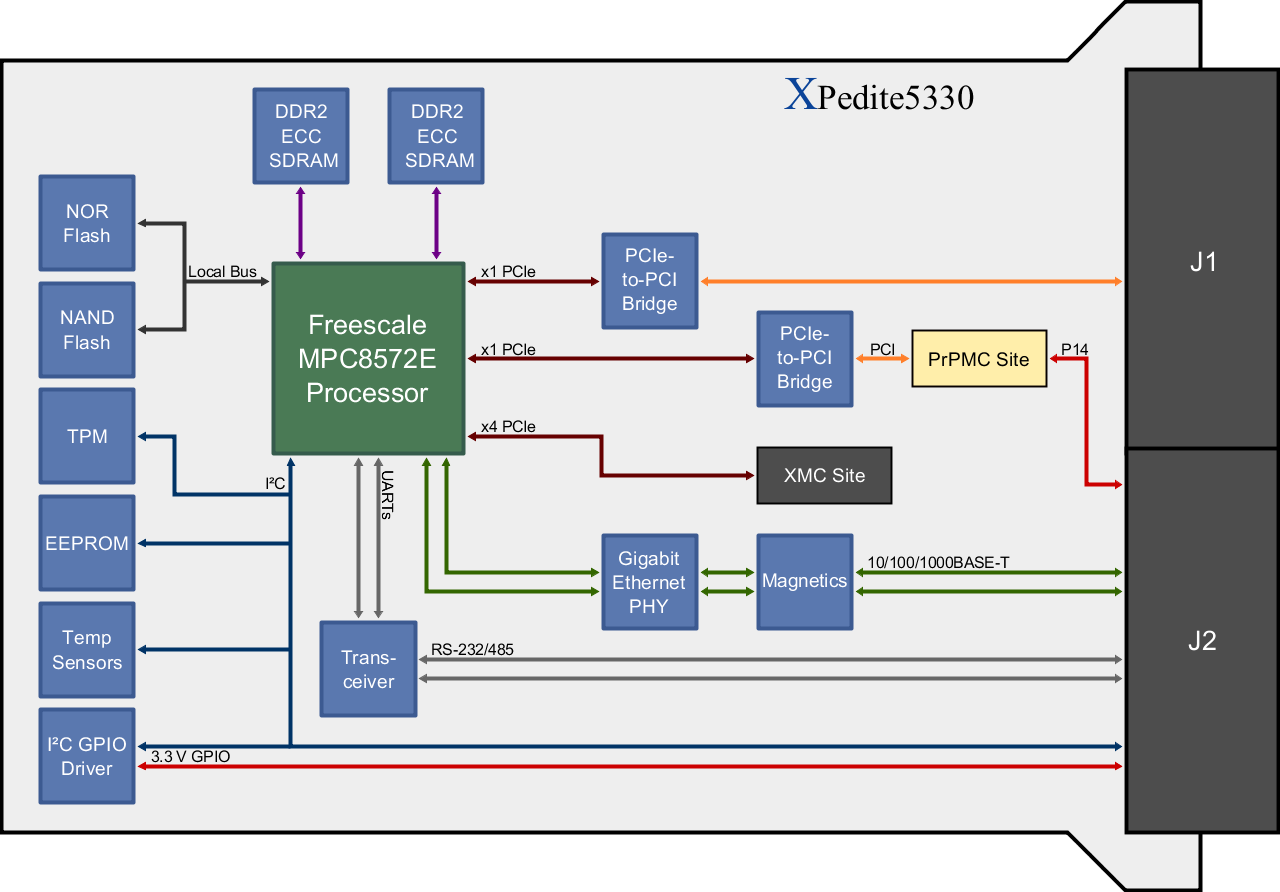

The XPedite5330 is a 3U conduction- or air-cooled CompactPCI (cPCI) single-board computer based on the Freescale MPC8572E PowerQUICC III processor. With dual PowerPC e500 cores running at up to 1.5 GHz, the MPC8572E delivers enhanced performance and efficiency for today's network information processing and other embedded computing applications.
Complementing processor performance, the XPedite5330 features two separate channels of up to 2 GB each of DDR2-667/800 ECC SDRAM, multiple PCI Express interfaces, PrPMC/XMC support, up to 256 MB of NOR flash (with redundancy), and up to 4 GB of NAND flash. Two Gigabit Ethernet ports, two RS-232/422/485 ports, and P14 I/O from the PrPMC are routed to J2 for additional system flexibility.
The XPedite5330 provides a high-performance, feature-rich solution for current and future generations of embedded applications. Operating system support packages for the XPedite5330 include Wind River VxWorks, Linux, QNX Neutrino, and Green Hills INTEGRITY.
Technical Specifications
Processor
- Freescale MPC8572E PowerQUICC III processor
- Dual PowerPC e500 cores at up to 1.5 GHz
- 1 MB of shared L2 cache
Memory
- Two channels of up to DDR2-800 ECC SDRAM, up to 4 GB (2 GB each)
- Up to 256 MB of NOR flash (with redundancy)
- Up to 4 GB of NAND flash
J1 cPCI Interface
- 32-bit PCI inferace operating at 33 or 66 MHz
- System controller capable with onboard clocking and arbitration
- Peripheral slot capable
J2 cPCI Interface
- Two 10/100/1000Base-T Ethernet ports
- Two RS-232/422/485 serial ports
- PrPMC P14 I/O
- Four GPIO signals
PrPMC/XMC Site
- 32-bit, 66-MHz PCI bus (PMC interface)
- x4 PCIe port (XMC interface)
Front Panel I/O
- Front-panel dual RJ45 Ethernet and mini-DB9 RS-232 serial ports available via optional plugover module
Software Support
- Linux LSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
Physical Characteristics
- 3U conduction- or air-cooled CompactPCI form factor
- Dimensions: 100 mm x 160 mm
Environmental Requirements
- Supported ruggedization levels (see chart below): Level 1, Level 2, Level 3, Level 4, Level 5
- Humidity: 0% to 95% non-condensing
Power Requirements
- Maximum power consumption: 33 W (with 1.5-GHz processor), 28 W (with 1.2-GHz processor)
