Features

Typical Applications

Description

XPedite6032 is a high-performance Conduction or Air Cooled 3U CompactPCI (cPCI) module that dissipates less than 18 Watts and is capable of operating at up to 85C at the external thermal interface, without forced air flow (Conduction Cooled version) or up to 55 C ambient air temperature with 300LFM airflow (Air Cooled Version). The XPedite6032 can also host one single width Conduction Cooled PMC (CCPMC) or standard Air Cooled PMC. The XPedite6032 is tolerant of 40g peak/6ms half sine shock, random vibration of 0.1g2/Hz from 50 to 2000Hz, and swept sinusoidal vibration of 0.06inch/10g peak amplitude from 10 to 500Hz.

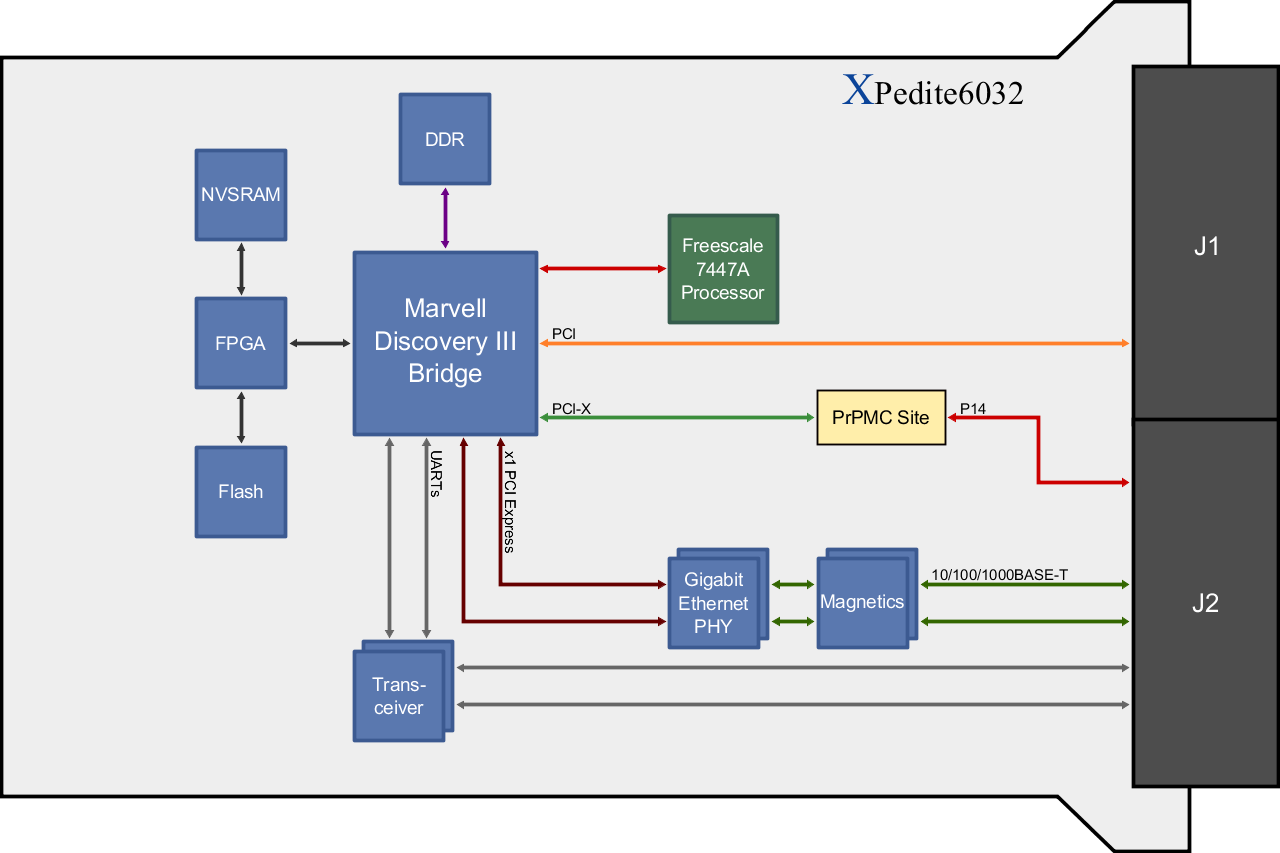

XPedite6032 utilizes the Freescale 7447A embedded PowerPC Processor and Marvell Discovery III System Controller. XPedite6032 provides up to 512MB DDR SDRAM, up to 128MB of AMD Mirrorbit (NOR) Flash, two RS232/422 serial ports, a 33/66MHz cPCI interface and 66/100/133MHz PCI-X PMC Interface. The serial and two Gigabit Ethernet interfaces are accessible through the backplane J2 connector along with a subset of the PMC's P14 I/O. XPedite6032 can be built as a system or peripheral cPCI module (specify when ordering).

XPedite6032 is ideal for 3U cPCI applications in commercial or extended temperature, shock, and vibration environments that require high bandwidth and processing performance.
