Dual Freescale 7447A/7448 PowerPC Processor PMC Module with Two Gigabit Ethernet Ports
Features
- Dual Freescale 7447A/7448 PowerPC Processors running at up to 1.4GHz
- Up to 1GB of DDR SDRAM
- Up to 128MB of Soldered Flash
- Two Gigabit Ethernet Ports
- PTMC Configuration 5 P14 Ethernet
- Bellcore 1089 Surge Protection
- Two RS-232 Serial Ports
- PCI-X Interface
- VxWorks 5.5.1 BSP
- Linux 2.6 LSP
- QNX Neutrino 6.3.0 BSP
- Green Hills INTEGRITY BSP
Typical Applications
- Data Processing
- General Computing Applications
Description
XPedite6201 is a high performance PrPMC single board computer. With dual Freescale
7447A/7448 PowerPC Processors running at up to 1.4 GHz, XPedite6201 is ideal for the high bandwidth processing
requirements of today’s blade and general computing applications.

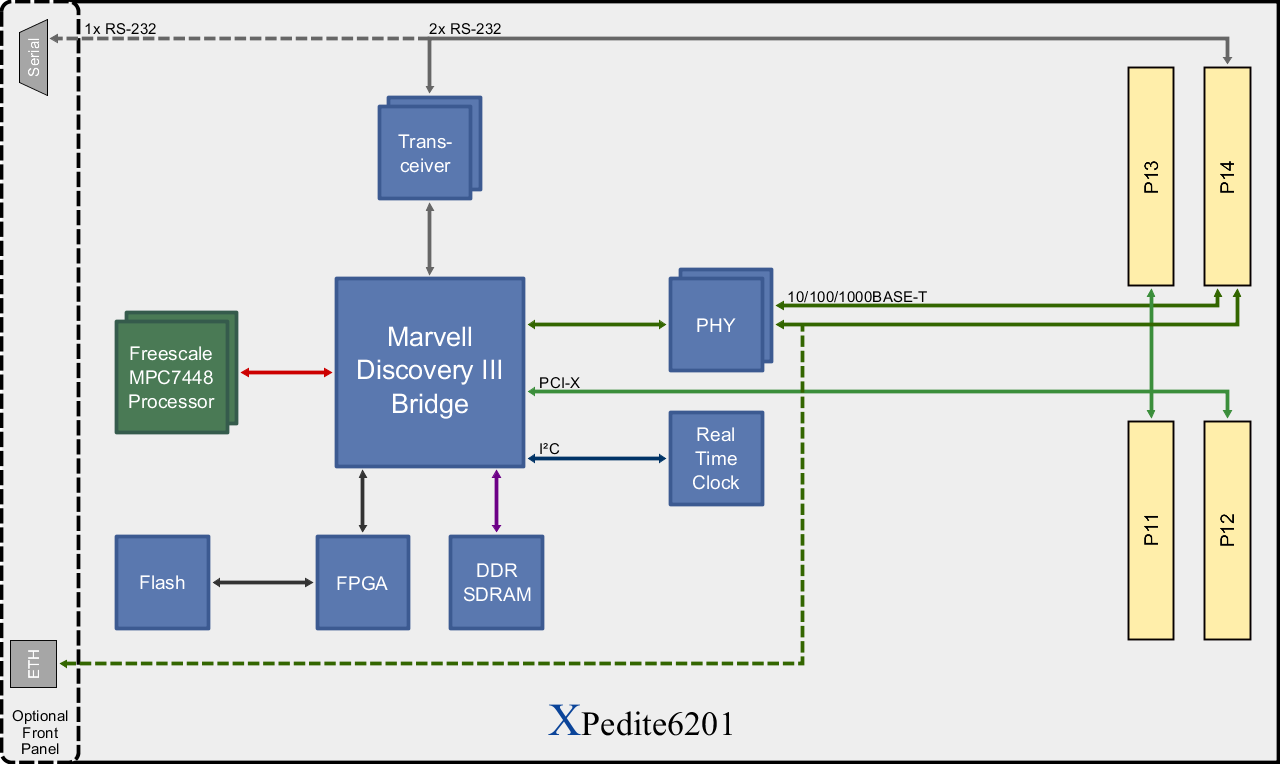

A Marvell Discovery III system controller provides a high performance communications
channel between the processor, a DDR SDRAM interface, two gigabit Ethernet interfaces,
and a PCI-X PMC interface. XPedite6201 supports up to 1GB of local DDR memory.
To the system designer, XPedite6201 provides a feature rich solution to support the next generation of embedded applications. A Linux Support Package (LSP), VxWorks Board Support Package (BSP), and QNX Board Support Package (BSP) are available.
Processor
- Dual Freescale PowerPC MPC7447A/7448 Processors
- 1.4GHz Max Processor Speed
- 133MHz Frontside Bus Speed
- 32K L1 Instruction/Data Caches
- 512KB L2 Cache/SRAM
PCI-X
- 133MHz Bus
- 64-bit interface
DDR SDRAM
- Operates at up to 266MHz
- Up to 1 GB of DDR SDRAM
- Peak memory bandwidth of 2.6GBps
Non-Volatile Memory
- Supports up to 128 MB of soldered Flash
Possible Ethernet Configurations
- 1 Front Panel Port, 1 P14 Port
- 2 P14 Ports
Possible RS-232 Serial Configurations
- 1 Front Panel Port, 1 P14 Port
- 2 P14 Ports
PTMC P14 I/O
- Supports PTMC Configuration 5 Ethernet
Bellcore 1089
- Front Panel Ethernet Surge Protection
Software
- VxWorks 5.5.1 BSP
- Linux 2.6 LSP
- QNX Neutrino 6.3.0 BSP
- Green Hills INTEGRITY BSP
Physical
- PMC Form Factor
- 149mm x 74mm
- 257g (9.1oz) Board Weight
- 15mm Stacking Height
Power Requirements(*)
- +3.3V 8.18A 27W
- +5.0V 0.00A 0.00W
- +12.0V 0.00A 0.00W
- -12.0V 0.00A 0.00W
Operating Temperature
- 0 to +70 ambient, at board
Humidity
- 0% to 85%
Storage Temperature
- -40 to +85C
*Tested Configuration
- Dual 7447A Processors running QNX
- 133MHz Bus
- 1.0GHz Processor Speed
- 1.0V Derated Core
- Both Ethernet Ports Linked @ 1Gbps
- 70C Ambient Temperature
