XPedite7101

Intel® Core™2 Duo Processor-Based PMC/XMC Module

The XPedite7101 is a high-performance, low-power PMC/XMC module based on the Intel Core 2 Duo processor. With a x4 PCI Express or 32-bit, 33/66-MHz PCI interconnect and a Gigabit Ethernet port, the XPedite7101 is ideal for high-bandwidth data-processing applications.

The XPedite7101 accommodates up to 2 GB of DDR2 SDRAM to support memory-intensive applications and hosts numerous I/O ports including Gigabit Ethernet, USB 2.0, SATA, and RS-232/RS-422/RS-485.

Linux 2.6, Wind River VxWorks, QNX Neutrino, and Green Hills INTEGRITY Board Support Packages (BSPs), as well as Windows drivers, are available for the XPedite7101.

  • Intel Core 2 Duo processor at up to 1.8 GHz
  • PMC/XMC module
  • Conduction- or air-cooled, ruggedized design
  • Up to 2 GB of DDR2-400 ECC SDRAM
  • 2 MB firmware hub flash (or 1 MB with redundancy)
  • 4 GB of NAND flash
  • x4 PCI Express XMC interface
  • 32-bit, 33/66-MHz PCI PMC interface
  • Gigabit Ethernet port with integrated magnetics
  • Two USB 2.0 high-speed ports
  • Two SATA ports
  • Two RS-232 ports or one RS-422/RS-485 port
  • Linux BSP
  • VxWorks BSP
  • QNX Neutrino BSP
  • Green Hills INTEGRITY BSP
  • Microsoft Windows drivers

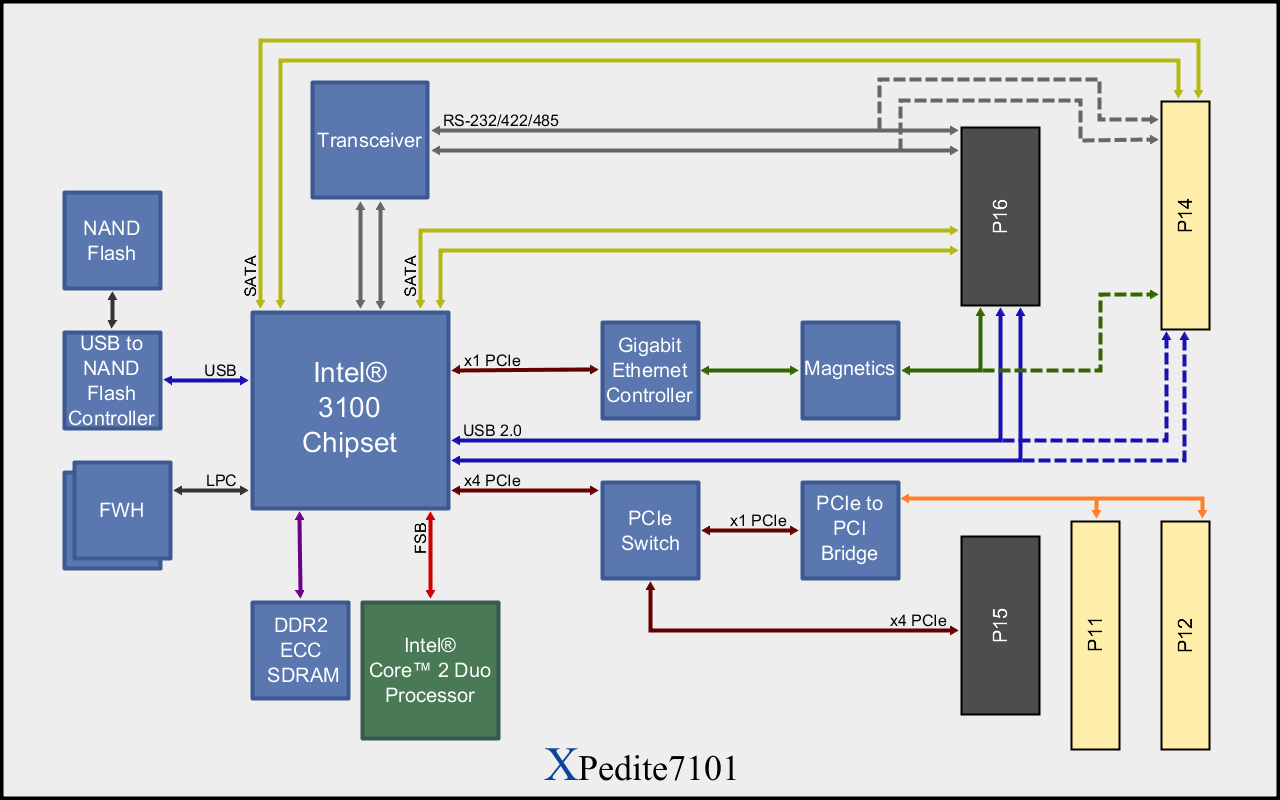

XPedite7101 Block Diagram

Click on the image above to view a larger version.

Processor

  • Intel Core 2 Duo at up to 1.8 GHz
  • 200 MHz (800 MT/s) FSB
  • Up to 6 MB of L2 cache

Memory

  • Up to 2 GB of DDR2-400 ECC SDRAM
  • 2 MB firmware hub flash (or 1 MB with redundancy)
  • 4 GB of NAND flash

PMC Interface

  • 33/66-MHz PCI
  • 32-bit Interface

P14 or P16 Mezzanine Interface

  • Two USB 2.0 ports
  • Two SATA ports
  • Two RS-232 ports or one RS-422/RS-485 port
  • One 10/100/1000BASE-T Ethernet port
  • Four GPIO Signals

P15 XMC Interface

  • x4 PCI Express

Software

  • Linux BSP
  • Wind River VxWorks BSP
  • QNX Neutrino BSP
  • Green Hills INTEGRITY BSP
  • Windows drivers

Physical Characteristics

  • PMC/XMC form factor
  • Dimensions: 149 mm x 74 mm
  • 10 mm stacking height

Environmental Requirements

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
  • Conformal coating available as an ordering option

Power Requirements

  • Maximum power consumption: 31 W (with 1.8-GHz processor), 26 W (with 1.4/1.2-GHz processor)

Accessories

  • XTend202 (90070170) - Debug Module with LPC Cable
  • XTend207 (90070400) - Debug Module with JTAG/Serial/Ethernet/USB Cable
