XPedite7201

The XPedite7201 is a high-performance, low-power, conduction- or air-cooled PMC/XMC module based on the Intel Atom Z530 processor. With a x1 PCI Express or 32-bit, 66-MHz PCI interconnect and a Gigabit Ethernet port, the XPedite7201 is ideal for high-bandwidth data-processing applications.

The XPedite7201 accommodates 1 GB of DDR2-533 SDRAM to support memory-intensive applications and hosts numerous I/O ports including Gigabit Ethernet, USB 2.0, IDE, RS-232/RS-422/RS-485, and dual DVI video.

Linux 2.6, Wind River VxWorks, QNX Neutrino, and Green Hills INTEGRITY Board Support Packages (BSPs), as well as Windows drivers, are available for the XPedite7201. The XPedite7201 also features a UEFI system firmware.

• Intel Atom Z530 processor at up to 1.6 GHz
• Conduction- or air-cooled PMC/XMC module
• 1 GB of DDR2-533 SDRAM
• Up to 4 GB of NAND flash
• x1 PCI Express XMC interface
• 32-bit, 66-MHz PCI PMC interface
• Gigabit Ethernet port with integrated magnetics
• Four USB 2.0 high-speed ports
• Two RS-232/RS-422/RS-485 serial ports
• Dual DVI-D video
• Audio line-in/out
• Linux BSP
• VxWorks BSP
• QNX Neutrino BSP
• Green Hills INTEGRITY BSP
• Microsoft Windows XP/Vista drivers

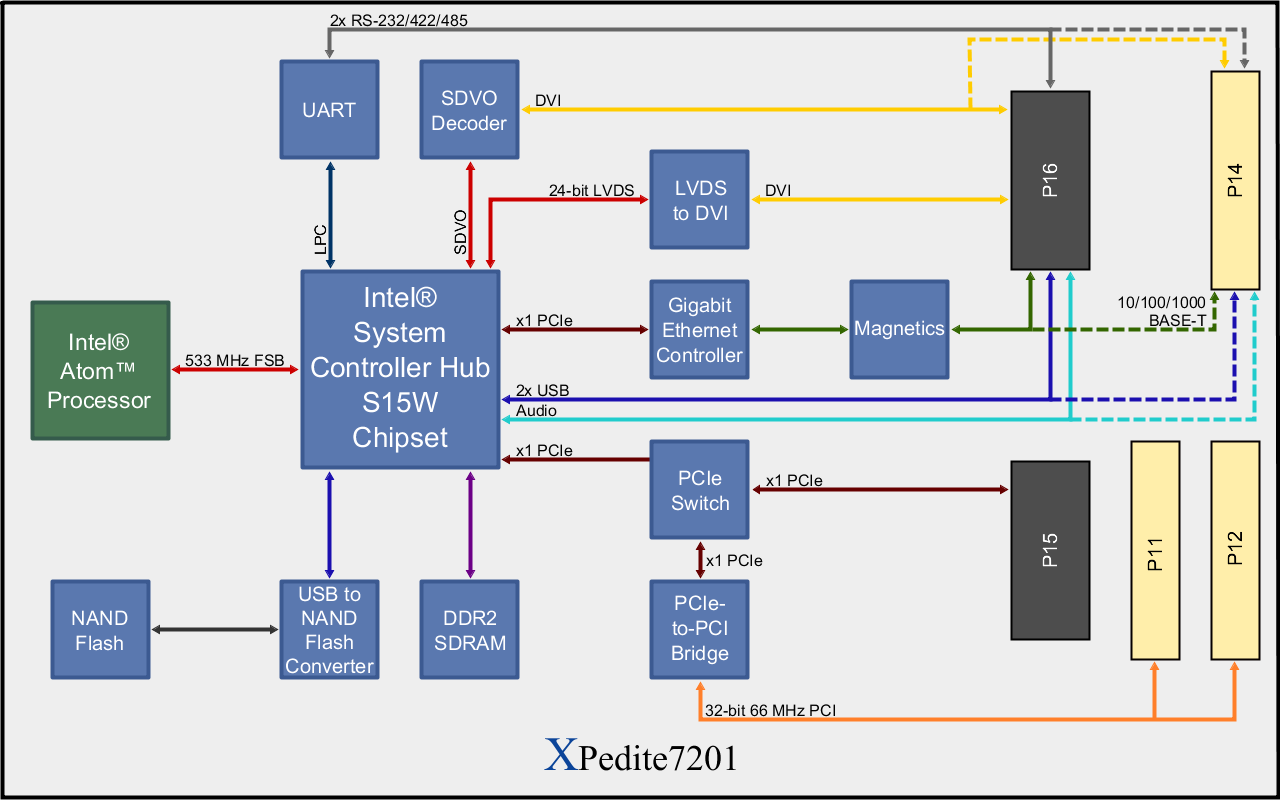

Click on the image above to view a larger version.

Processor

• Intel Atom Z530 processor at up to 1.6 GHz

Memory

• One channel of up to 1 GB of DDR2-533 SDRAM
• Up to 4 GB of NAND flash

PMC/XMC Interface

• 32-bit, 66-MHz PCI bus (PMC interface)
• x1 PCIe port (XMC interface)

P14 I/O

• Single DVI video
• Two USB 2.0 ports
• Two RS-232/RS-422/RS-485 ports
• One 10/100/1000BASE-T Ethernet port
• Audio I/O

P16 I/O

• Dual DVI video
• One 10/100/1000BASE-T Ethernet port
• Two RS-232/RS-422/RS-485 ports
• Two USB 2.0 ports
• Audio I/O

Software

• Linux LSP
• Wind River VxWorks BSP
• QNX Neutrino BSP
• Green Hills INTEGRITY BSP
• Windows drivers

Physical Characteristics

• PMC/XMC conduction-cooled form factor
• Dimensions: 149 mm x 74 mm
• 10 mm stacking height

Environmental Requirements

• Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
• Conformal coating available as an ordering option

Power Requirements

• Estimated maximum power consumption: 7 W

Accessories

• XTend202 (90070170) - Debug Module with LPC Cable
