XPort1020

Freescale MPC8270 Processor-Based Multi-Protocol Twelve-Port Serial 6U cPCI Module

Overview
Features

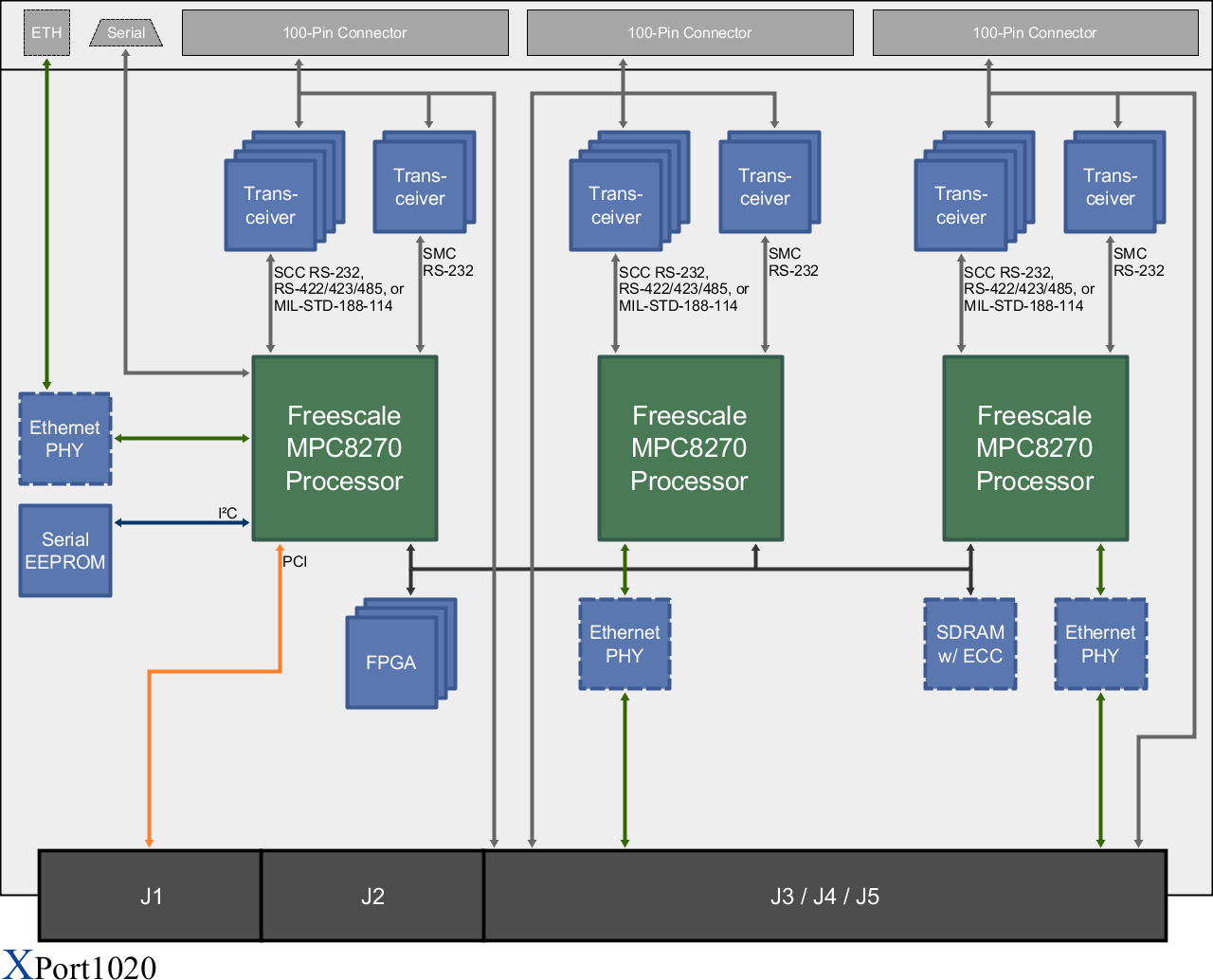

Block Diagram
Technical Specifications

The XPort1020 is a communications controller targeting high-performance yet low-cost applications. The XPort1020 combines a wide array of supported serial protocols, a broad range of serial interface standards, and a flexible I/O routing structure to pack maximum flexibility into an industry-standard cPCI form factor.

Powered by up to three Freescale MPC8270 (PowerQUICC II™) processors, the XPort1020 implements twelve serial communication ports, each providing a EIA-530-A-compliant signal set. Support for HDLC/SDLC, UART, transparent, and BiSync modes, with NRZ, NRZI, FM0, FM1, Manchester and Differential Manchester encoding is also provided. Coupled with software-configurable support for RS-232, RS-422, RS-423, RS-485, and MIL-STD-188-114, the XPort1020 provides a wide range of serial options.

For a system designer, the XPort1020 will help drive both cost and power consumption down. Because the PCI bridge is integrated on chip and the processors are linked via the 60x bus, the XPort1020 draws less power and costs less than conventional designs based on other processors that require a PCI bridge.

Up to three Freescale MPC8270 at up to 300 MHz with integrated PCI
Up to 12 SCCs supporting a variety of serial protocols
Hot swap support
Up to 512 MB SDRAM
Up to 128 MB soldered flash
512 kB socketed flash
2 kB SEEPROM
Six RS-232 SMC ports
Front panel 10/100 Mbps Ethernet and serial ports
Two 10/100 Mbps PICMG 2.16 backplane Ethernet ports
Optional rear I/O
Complies to PICMG 2.1, 2.9
Linux BSP
Wind River VxWorks BSP

Click on the image above to view a larger version.

Processor

Up to three Freescale MPC8270 processors
300 MHz max processor speed
280 Dhrystones at 200 MHz
Up to 100 MHz 60x bus
16 kB L1 instruction/data caches
32 kB internal SRAM
Integrated MMU
Core-disabled mode
32-bit, 66-MHz PCI

Memory

Up to 512 MB SDRAM
Up to 128 MB surface mount flash
2 kB SEEPROM

Front Panel Connections

Optional 10/100 Ethernet port
Optional RS-232 serial port
Three 100-pin serial I/O connectors

Backplane Connections

PICMG 2.16 Ethernet
Twelve optional 7-wire interfaces

Serial Communication Controller

HDLC, UART, transparent, and BiSync modes
DPLL supporting NRZ, NRZI, FM0, FM1, Manchester, and Differential Manchester
Independent BRGs for each SCC transceiver
Optional external custom oscillators

Software

Linux BSP
Wind River VxWorks BSP
SCC, SMC, and Ethernet drivers

Physical Characteristics

cPCI form factor

Environmental Requirements

Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
Conformal coating available as an ordering option
