Combined Temperature & Vibration Testing

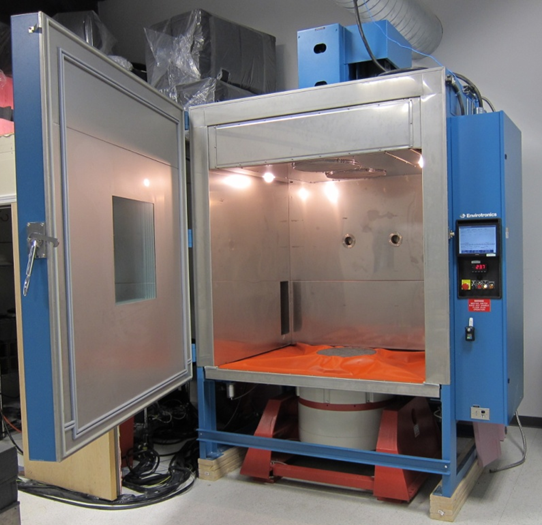

Combined temperature and vibration testing is performed with our on-site Envirotronics EV92-LN2 AGREE Chamber. The AGREE Chamber supports a temperature range of -70°C to 160°C. The LDS V850 Electrodynamic shaker can easily be wheeled into the AGREE chamber for combined temperature and vibration testing.

Liquid Nitrogen (LN2) cooled fixtures can be used to control the thermal interface temperature for conduction-cooled systems.

Combined Temperature and Vibration Tests

The following is an example of the combined temperature and vibration tests X-ES has experience performing for system- and board-level qualification efforts.

• MIL-STD-810 Combined Temperature and Vibration
