CDP-5940

The CDP-5940 system is a debug, development platform for 3U conduction-cooled systems including the Cisco 5940 Embedded Services Router. It includes the XPedite7332 3U CompactPCI SBC with an XPort6103 256 GB SSD PMC/XMC, and the Cisco® 5940 ESR with direct Ethernet and serial I/O access to each board.

The CDP-5940 backplane provides CompactPCI bus between the two slots. Ethernet, RS-232 serial I/O, and DVI are routed to RJ-45, micro DB-9, and HDMI connectors for easy access.

The CDP-5940 is the ideal solution for rapid prototyping mobile ad hoc networks (MANET) based on the Cisco 5940 ESR. The 5940 3U cPCI hardware is complemented by Cisco IOS® Software and Cisco Mobile Ready Net capabilities. With support for Dynamic Link Exchange Protocol (DLEP), the latest protocol in the Radio Aware Routing (RAR) family of protocols that enable communication between a router and a radio in a mobile ad hoc network, the 5940 provides highly secure yet scalable video, voice, and data services for mobile and embedded outdoor networks.

With an Intel Core i7 processor with dual cores and 8 GB of memory, the XPedite7332 has the performance and memory capacity to run multiple mission specific and advanced networking applications from Cisco, such as Virtual Wide Area Application Services (vWAAS), 1000V Cloud Firewall (a virtual firewall), and Security Manager. And with a 256 GB SSD, the system has ample storage capacity for Cisco applications.

• A conduction-cooled XPedite7332 Intel® Core™i7 processor system slot 3U cPCI module with 8 GB of DDR3 SDRAM
• A conduction-cooled Cisco 5940 ESR in peripheral slot
• A conduction-cooled XPort6103 Solid State Disk PMC/XMC mounted on XPedite7332
• Built-in cooling fans, integrated heatsink fins, and reset switch
• Compact PCI bus routed between slots
• One RJ-45 Gigabit Ethernet port from SBC, three RJ-45 Gigabit Ethernet ports from Cisco 5940
• RS-232 serial port from each slot, HDMI, USB 2.0, and eSATA ports from XPedite7332

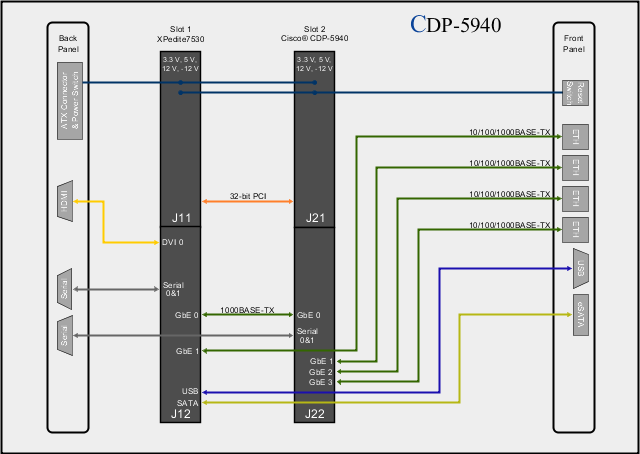

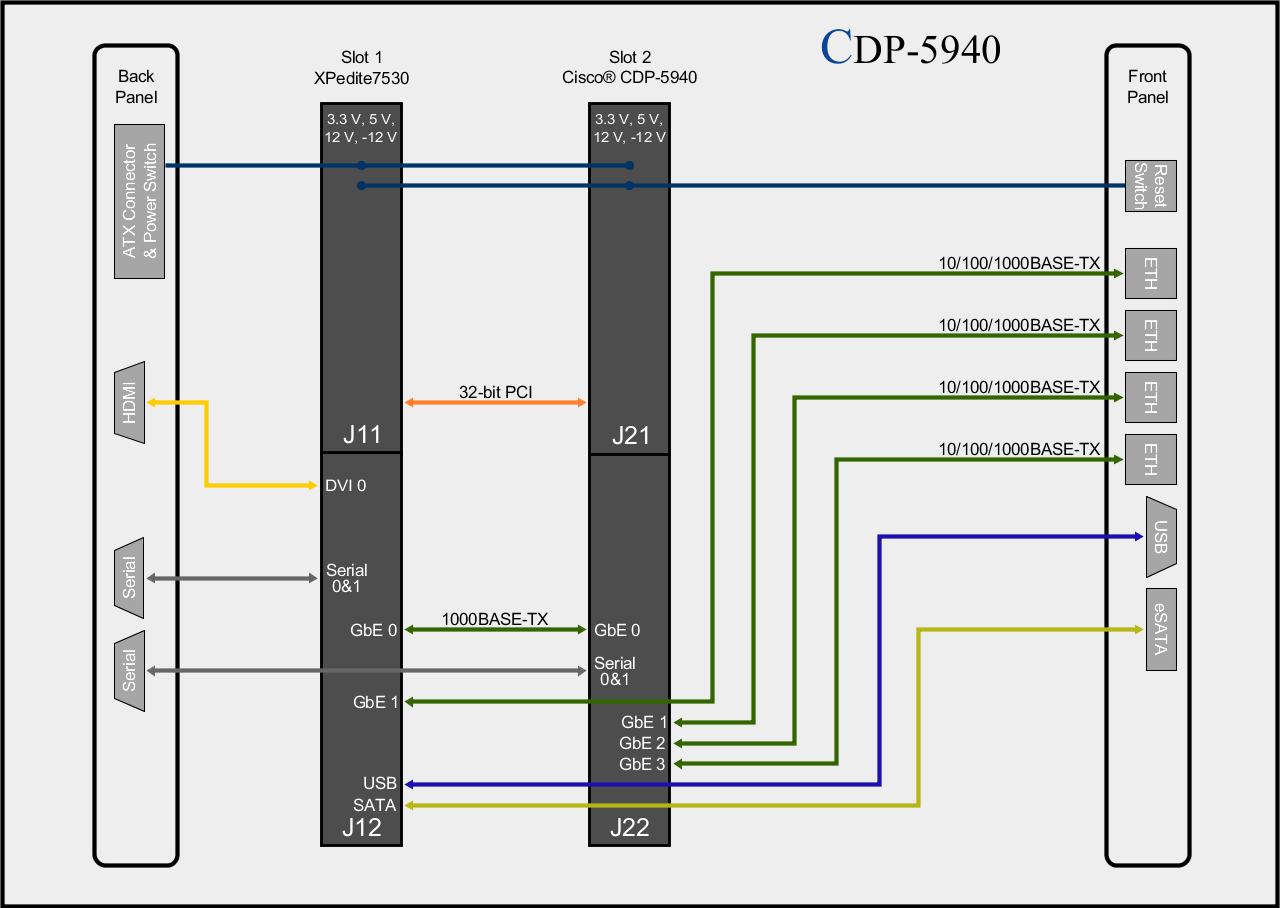

Click on the image above to view a larger version.

Connectors

• One XPedite7332 3U cPCI SBC slot
• One Cisco® 5940 slot
• ATX power supply connector
• Four RJ-45 Ethernet connectors
• One USB Type A connector
• One eSATA connector
• One HDMI connector
• Two micro DB-9 connectors

Utility Functions

• Front panel reset switch
• Back panel power switch
• Back panel power rail LED indicators

System Slot Module

• XPedite7332 Intel® Core™i7 processor-based conduction-cooled 3U CompactPCI module
• 8 GB of DDR3-1066 ECC SDRAM

Storage Module

• XPort6103 256 GB Solid State Drive (SSD) storage XMC module

Cisco 5940 Module

• Ruggedized 3U cPCI embedded router
• Cisco IOS® software

I/O Routing

• J1 (SBC slot) Ethernet Port 0 routed to J2 (Cisco 5940 slot) Ethernet Port 0
• J1 (SBC slot) Ethernet Port 1 routed to RJ-45 connector
• J2 (Cisco 5940 slot) Ethernet Ports 1 thru 3 routed to RJ-45 connectors
• J1 and J2 serial ports routed to micro DB-9 connectors

External Power Supply

• ATX power supply

Maximum Power Capacity

• 100 W total
