The XIt1000 is a 6U cPCI transition module that supports rear I/O for several products in X-ES’ product line.

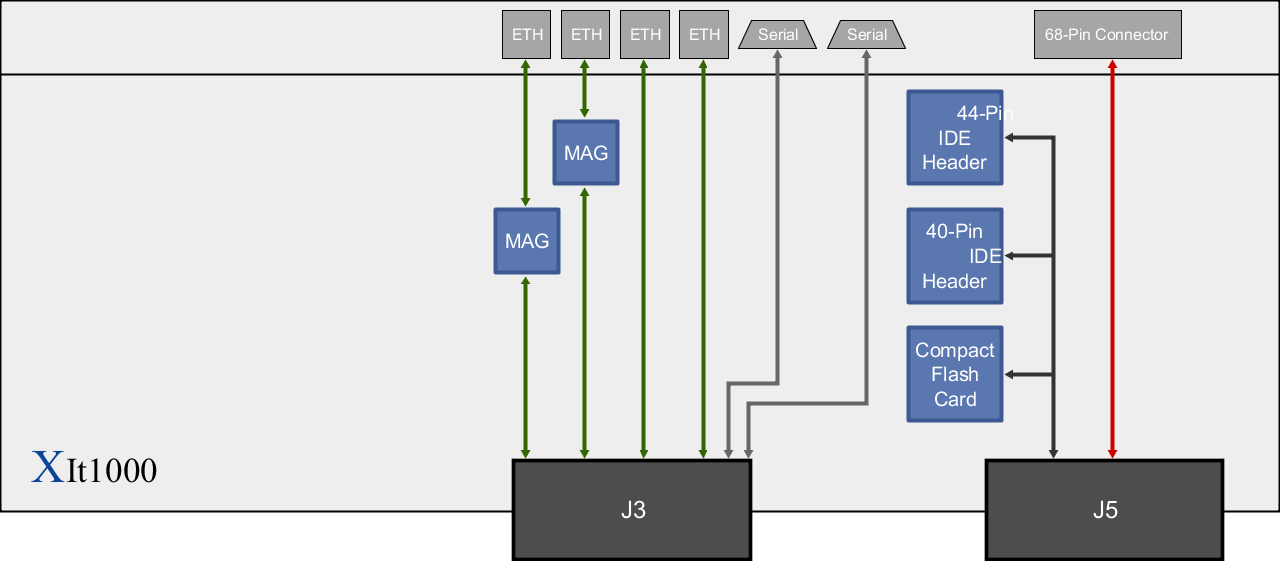

The XIt1000 supports both IDE and SCSI bulk storage interfaces. The XPort6000 SCSI card is supported via a 68-pin SCSI connector. The module also supports the XCalibur and XChange series IDE interface through 40-pin, 44-pin, and CompactFlash headers.
The transition module also breaks out PICMG 2.16 Gigabit Ethernet ports via RJ-45 connectors. Additionally, rear I/O Ethernet ports for the XPedite and XPort series of cards are also accessible. The XIt1000 also breaks out the RS-232/422 serial ports and E1/T1/J1 ports for the XChange, XPort, and XPedite series of modules.
The XIt1000 is available in multiple configurations. Not all connectors are placed on all configurations. Contact X-ES for an appropriate configuration based on your specific I/O needs.
Technical Specs
6U SBC I/O Support
- Integrated IDE via standard 40-pin header or laptop drive 44-pin header
- Two 2.16 Gigabit Ethernet ports via RJ-45 connectors
- Two RS-232/422 serial ports via RJ-45 connectors
PMC I/O Support
- 68-pin SCSI connector
- One RS-232 serial port
- Two Gigabit Ethernet ports via RJ-45 connectors
- Four T1/E1/J1 ports
Physical Characteristics
- 6U CompactPCI form factor
- Mechanically compliant to PICMG 2.0
- Dimensions: 233.35 mm x 80 mm
Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements.
Accessories
Please contact X-ES Sales at
sales@xes-inc.com or by phone at
+1 (608) 833-1155 for information on this product's accessories.
