XPand1201
3U CompactPCI Development Platform for Conduction-Cooled Modules
The XPand1201 is a low-cost, flexible, development platform. This platform supports up to ten 1 in. or 0.8 in. pitch conduction-cooled CompactPCI modules. It provides 482 W of total simultaneous power, which can be distributed as up to 16 A on 12 V, up to 40 A on 5 V, and up to 20 A on 3.3 V. The heat from the internal conduction-cooled modules is conducted to sidewall exchangers, where it is dissipated to the ambient environment by forced-air cooling. This efficient thermal design allows up to 60 W of power dissipation per slot at 30˚C ambient, while maintaining 70˚C at the module's thermal interface.
X-ES platforms, including the XPand1201, provide a feature-rich solution for system development. RTMs provide maximum I/O flexibility and rapid system prototyping. Power and reset LEDs are provided for system status. A momentary push button is provided for reset, and a switch is provided for DC power enable.
The XPand1201 is available for purchase in several rapid-development, standard configurations. Custom configurations of modules, RTMs, and backplanes are also available utilizing X-ES and third party components.
- Development platform for conduction-cooled modules
- Forced-air-cooled sidewall heat exchangers
- Supports 1 in. or 0.8 in. pitch conduction-cooled CompactPCI modules
- Standard CompactPCI configurations in stock
- PICMG CompactPCI standards-based
- Customizable with X-ES and third party components
- RTM (Rear Transition Module) support for maximum I/O flexibility
- Power and reset switches
- Power and reset LEDs
- Up to 482 W total simultaneous power with one power module
- Up to 60 W per slot at 30˚C ambient and 70˚C rail
- 2 VITA 62 power slots
- 12 V up to 16 A
- 5 V up to 40 A
- 3.3 V up to 20 A
- 110-240 VAC, 50/60 Hz power input

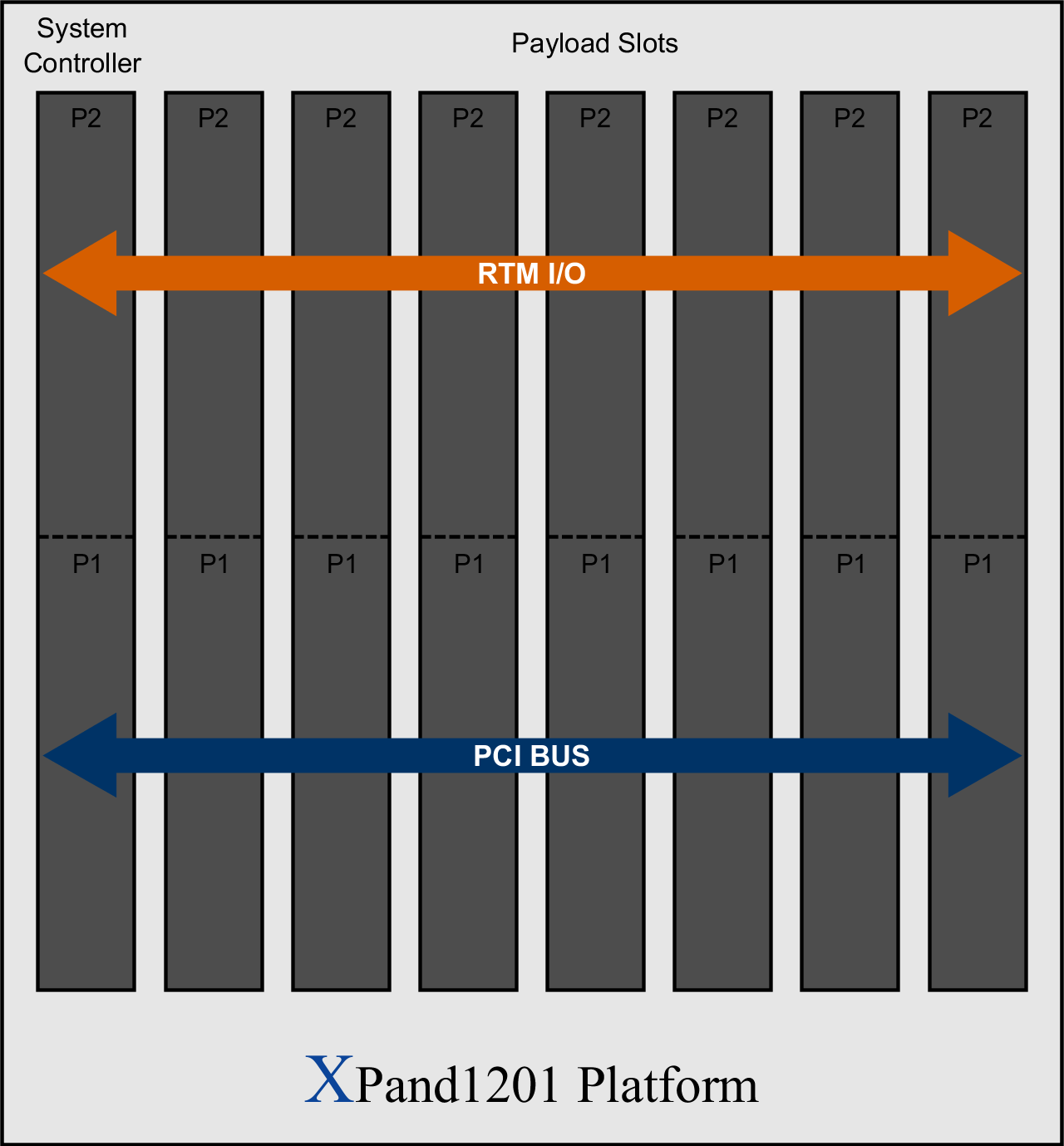

Click on the image above to view a larger version.
Form Factor
- 3U CompactPCI 1 in. or 0.8 in. pitch
- 3U CompactPCI RTM
Slots
- Ten 1.0 in. pitch slots (including power supply slots)
- Eight 1.0 in. pitch RTM slots
Power
- 110-240 VAC, 50/60 Hz power input
- 482 W total simultaneous power
- Up to 16 A on 12 V
- Up to 40 A on 5 V
- Up to 20 A on 3.3 V
- Please consult factory for additional power options
Cooling
- Up to 60 W per slot at 30˚C ambient and 70˚C rail
Physical Characteristics
- 16.5 in. (H), x 5.5 in. (W), x 11.5 in. (L)
- 20 lbs. with backplane and power supply
