XPedite5400 Freescale Eight Core P4080 PMC/XMC Single Board Computer SBC

XPedite5400

Freescale Eight-Core P4080 Processor-Based Air-Cooled PMC/XMC (PrPMC/XMC) Module with Three Gigabit Ethernet Ports

Click to enlarge product image

The XPedite5400 is a high performance PrPMC/XMC single board computer supporting Freescale QorIQ P3, P4, and P5 processors. With a number of processor options to choose from, X-ES can provide a product to meet the specific power and performance requirements of today's embedded computing applications.

The P4080 processor brings the raw power of eight e500mc cores running at up to 1.5 GHz and dual-channel DDR3 memory, delivering unparalleled multi-core performance. For applications which are more power conscious, the P3041 processor offers four e500mc cores running at up to 1.5 GHz with a single channel of DDR3 memory, all within a significantly reduced power envelope. Applications requiring the performance of a true 64-bit processor are satisfied by the P5020 processor which offers dual e5500 cores running at up to 2 GHz and beyond with high performance floating-point units and dual channel DDR3 memory. Additional reduced function processors are available to meet any power and performance budget.

The XPedite5400 provides a high-performance, feature-rich solution for current and future generations of embedded applications. Wind River VxWorks, Linux and Green Hills INTEGRITY-178 tuMP Board Support Packages (BSPs) are available.

  • Freescale P4080 processor with eight PowerPC e500mc cores at up to 1.5 GHz (alternate processors P3041, P4040, P5010, P5020)
  • Air-cooled
  • Up to 8 GB of DDR3-1333 ECC SDRAM
  • Up to 256 MB of NOR flash (with redundancy)
  • Up to 16 GB of NAND flash
  • x4 PCI Express interface to P15
  • XAUI to XMC site
  • PCI PrPMC interface
  • Three Gigabit Ethernet ports
  • Two RS-232/422/485 serial ports
  • Two USB 2.0 ports (one to P14/P16 and one to the front panel or P14/P16)
  • Two SATA 3.0 Gb/s ports to XMC site
  • Linux BSP
  • Wind River VxWorks BSP
  • Green Hills INTEGRITY-178 tuMP BSP

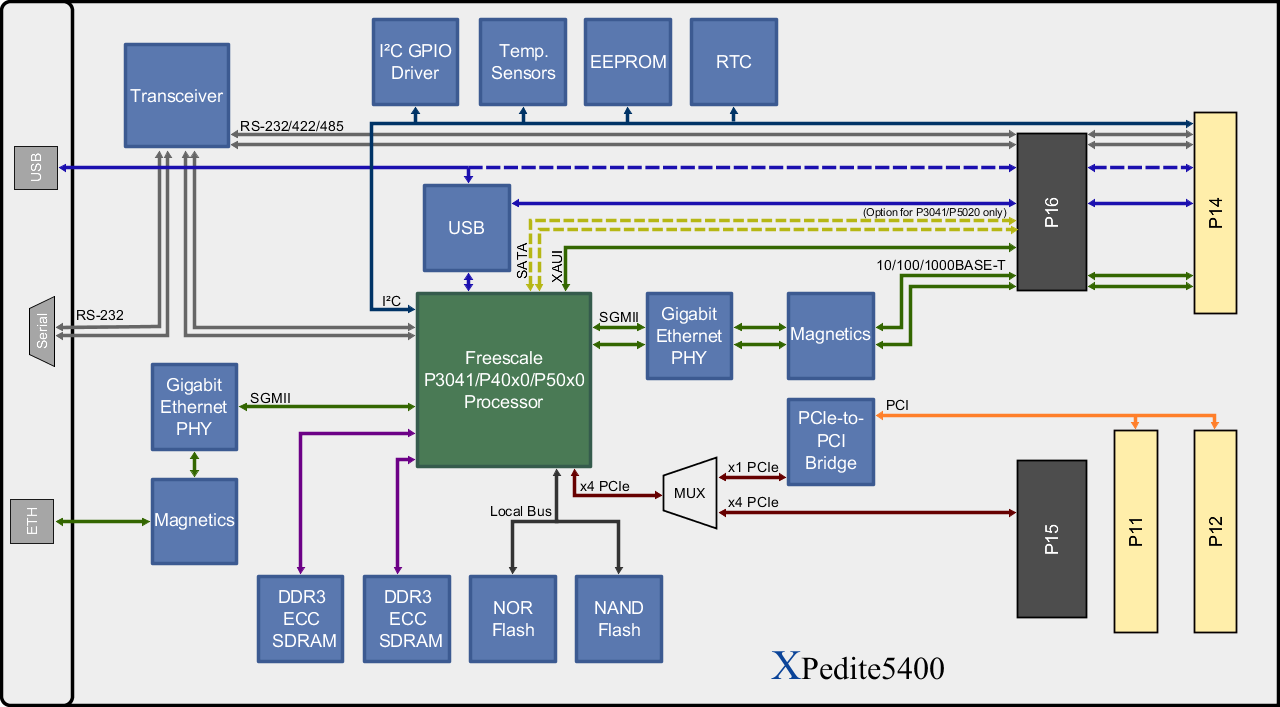

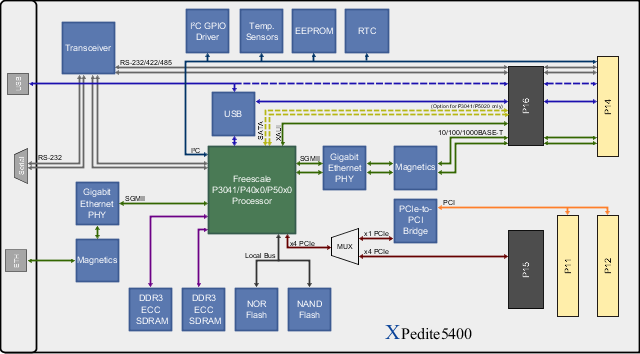

XPedite5400 Block Diagram

Click on the image above to view a larger version.

Processor

  • Freescale P4080 processor
  • Eight PowerPC e500mc cores at up to 1.5 GHz
  • 128 kB L2 cache per core
  • 1 MB L3 cache per channel
  • IEEE 754 Floating-Point Unit support
  • Alternate processor configurations offered, see below

Alternate Processor Configurations

  • P4040 processor with four PowerPC e500mc cores at up to 1.5 GHz
  • P4080 processor with eight PowerPC e500mc cores at up to 1.5 GHz
  • P3041 processor with four PowerPC e500mc cores at up to 1.5 GHz
  • P5010 processor with one 64-bit PowerPC e5500 core at up to 2 GHz
  • P5020 processor with two 64-bit PowerPC e5500 cores at up to 2 GHz

Memory

  • Up to 8 GB of DDR3-1333 ECC SDRAM
  • Up to 256 MB of NOR flash (with redundancy)
  • Up to 16 GB of NAND flash

PrPMC Interface

  • 66/33 MHz PCI
  • 32-bit bus interface

P15 XMC Interface

  • x4 configurable PCI Express

P14/P16 PMC/XMC Interface

  • Two 10/100/1000 Mbps Ethernet ports
  • Two RS-232/422/485 ports
  • 3.3 V GPIO
  • Up to two USB 2.0 ports
  • Two SATA 3.0 Gb/s ports to P16 (optional)
  • XAUI port (optional)

Front Panel I/O

  • Gigabit Ethernet port
  • Two RS-232 serial ports
  • USB 2.0 port

Software Support

  • Linux BSP
  • Wind River VxWorks BSP
  • Green Hills INTEGRITY-178 tuMP BSP

Physical Characteristics

  • Air-cooled PMC/XMC form factor
  • Dimensions: 149 mm x 74 mm, 10 mm stacking height

Environmental Requirements

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3
  • Conformal coating available as an ordering option

Power Requirements (Estimate)

  • Power will vary based on configuration and usage. Please consult factory.
