XPedite7431 Intel Core i7 3U cPCI Single Board Computer SBC

XPedite7431

Intel® Core™ i7 Processor-Based Conduction- or Air-Cooled 3U CompactPCI Module

The XPedite7431 is a high-performance, 3U CompactPCI, multiprocessing, single board computer that is ideal for ruggedized systems requiring high bandwidth processing and low power consumption. With the 2nd Generation Intel® Core™ i7 processor, the XPedite7431 delivers enhanced performance and efficiency for today's network information processing and embedded computing applications.

Complementing processor performance, the XPedite7431 features up to 8 GB of DDR3-1333 ECC SDRAM, XMC support, and up to 16 GB of NAND flash. Two Gigabit Ethernet ports are routed to J2 for additional system flexibility.

The XPedite7431 is a powerful, feature-rich solution for the next generation of compute-intensive embedded applications. Operating system support for Wind River VxWorks, QNX Neutrino, Linux Board Support Packages (BSPs) is available, as well as Microsoft Windows drivers.

  • Supports 2nd generation Intel® Core™i7 processors and 3rd generation Intel® Core™ i7 processors
  • Quad- or dual-core processor with Intel® Hyper-Threading Technology
  • 3U CompactPCI module
  • Conduction or air cooling
  • Up to 8 GB of DDR3-1333 ECC SDRAM in two channels
  • 32 MB of NOR boot flash
  • Up to 16 GB of NAND flash
  • Configurable as system controller or peripheral
  • XMC interface with rear I/O and limited front-panel I/O support (contact factory)
  • Two 10/100/1000BASE-T Ethernet ports
  • One RS-232 serial port
  • Front I/O available via plugover module
  • Wind River VxWorks BSP
  • Linux BSP
  • Microsoft Windows drivers
  • Green Hills INTEGRITY BSP (contact factory)
  • QNX Neutrino BSP (contact factory)
  • LynuxWorks LynxOS BSP (contact factory)

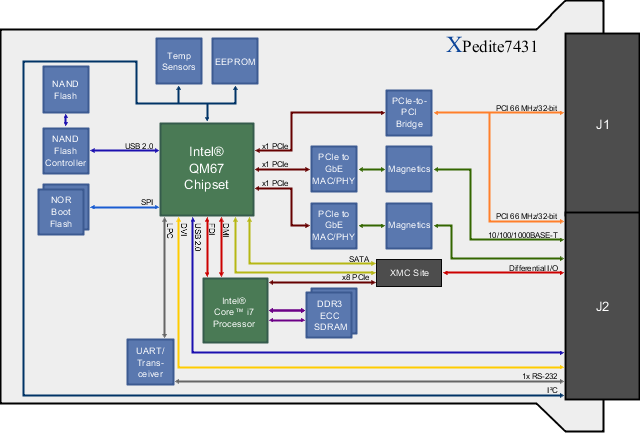

XPedite7431 Block Diagram

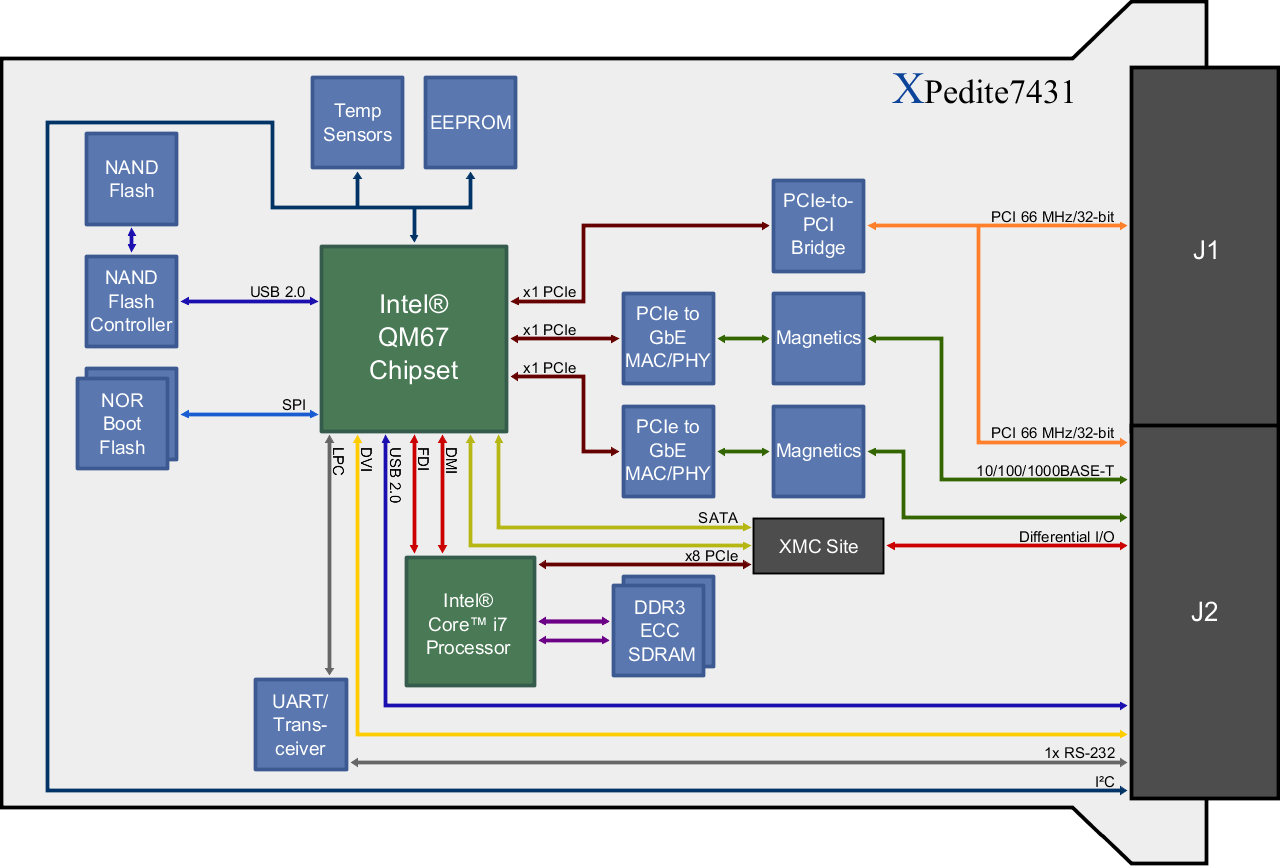

Click on the image above to view a larger version.

Processor

  • Quad- or dual-core Intel® Core™ i7
  • Intel® Turbo Boost Technology
  • Intel® Hyper-Threading Technology
  • AVX instruction set extensions
  • Integrated with Intel® QM67 chipset
  • Dual-channel integrated memory controller

Dual-Core Processor Configurations

  • Core i7-2655LE: 2.2 GHz, 4 MB cache (default)
  • Core i7-2610UE: 1.5 GHz, 4 MB cache
  • Core i7-3555LE: 2.5 GHz, 4 MB cache
  • Core i7-3517UE: 1.7 GHz, 4 MB cache

Quad-Core Processor Configurations

  • Core i7-3612QE: 2.1 GHz, 6 MB cache

Memory

  • Up to 8 GB of DDR3-1333 ECC SDRAM in two channels
  • 32 MB of NOR boot flash
  • Up to 16 GB of NAND flash

J1 cPCI Interface

  • 32-bit PCI interface operating at 33 or 66 MHz
  • System controller-capable with onboard clocking and arbitration
  • Peripheral slot-capable

J2 cPCI Interface

  • Two 10/100/1000BASE-T Ethernet ports
  • One RS-232 serial port
  • Four GPIO signals
  • One USB 2.0 port
  • HDMI/DVI-D
  • XMC I/O

XMC Site

  • x8 PCIe port
  • Two SATA 6.0 Gb/s ports

Software Support

  • Wind River VxWorks BSP
  • Linux BSP
  • Microsoft Windows drivers
  • QNX Neutrino BSP (contact factory)
  • Green Hills INTEGRITY BSP (contact factory)
  • LynuxWorks LynxOS BSP (contact factory)

Physical Characteristics

  • Conduction- or air-cooled 3U CompactPCI form factor
  • Dimensions: 100 mm x 160 mm

Environmental Requirements

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
  • Conformal coating available as an ordering option

Power Requirements

  • Power will vary based on configuration and usage. Please consult factory.
