X-ES Enterprise Linux (XEL) Supported on X-ES Embedded Computing Modules

Extreme Engineering Solutions (X-ES) is pleased to offer X-ES Enterprise Linux (XEL) – a Board Support Package (BSP) that enables the use of an Enterprise Linux distribution in conjunction with X-ES rugged, embedded computing hardware.

Enterprise Linux with Expanded Hardware Support

The X-ES Enterprise Linux (XEL) Board Support Package (BSP) operates in conjunction with a stable Enterprise Linux distribution to add full functionality and accessibility to all of an X-ES embedded computing module’s ports and I/O.

Built against kernel source code provided by a prominent enterprise-class Linux vendor and operating as a compatibility layer on top of a trusted and proven Enterprise Linux distribution, this well-supported and easy-to-use Linux package is ideal for development and deployable embedded hardware. Linux distributions compatible with XEL include, but are not limited to, Red Hat Enterprise Linux™, CentOS™, and Scientific Linux™. XEL is designed to provide full Linux support for all of X-ES’ x86 architecture embedded processor modules.

X-ES Enterprise Linux mockup

Full Compatibility via X-ES Drivers and Utilities

The X-ES Enterprise Linux (XEL) Board Support Package (BSP) adds a layer of support for X-ES hardware through an assortment of kernel modules and drivers that enable onboard devices.

The BSP’s included drivers provide access to Intel® ICH GPIO and Intel® Bay Trail devices, I²C GPIO devices, and temperature sensors, allowing customer to fully interface with our products.

XEL also provides access to I²C GPIO devices through either a sysfs or I²C character device interface, and temperature sensor support includes processors in the coretemp driver and a large AT24 serial EEPROM. Support for access to a PCI-to-VME bridge is included.

In addition to kernel modules and drivers, a host of scripts and utilities are included in the XEL BSP to support the convenience functions of X-ES hardware, such as access to readings from onboard temperature sensors, automatic I²C/SMBus device registration, and onboard LED control.

Featured Embedded Computing Modules with X-ES Enterprise Linux Support

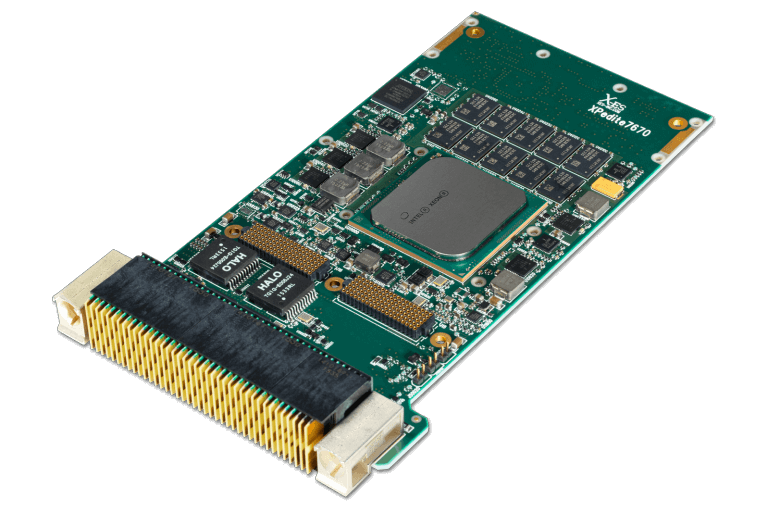

XPedite7670 3U VPX Single Board Computer

XPedite7670

3U VPX SBC

Intel® Xeon® D-1500 Family Processor-Based 3U VPX-REDI SBC with Dual 10 Gigabit Ethernet and an XMC Site

View XPedite7670

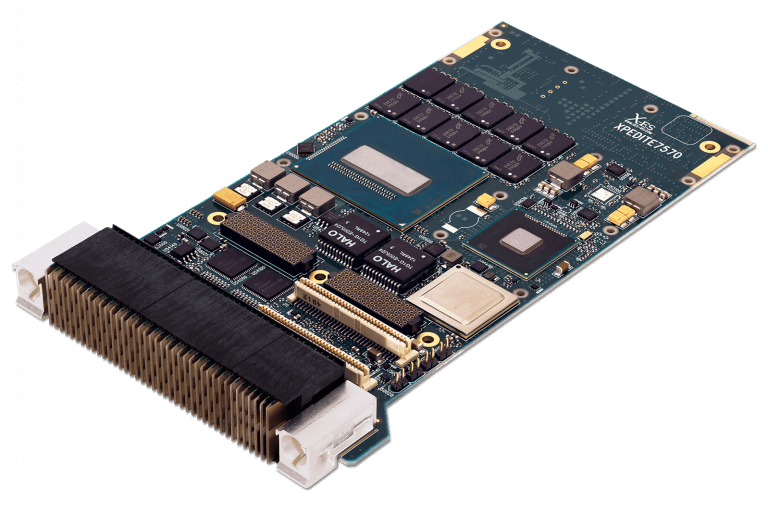

XPedite7570 3U VPX Single Board Computer

XPedite7570

3U VPX SBC

5th Gen Intel® Core™ i7 (Broadwell-H) Processor-Based Conduction- or Air-Cooled 3U VPX-REDI Single Board Computer (SBC)

View XPedite7570

XCalibur4643 6U VPX Single Board Computer

XCalibur4643

6U VPX SBC

Intel® Xeon® D-1500 Family Processor-Based 6U VPX SBC with Dual 10 Gigabit Ethernet, Dual XMC/PMC Sites, and Onboard AMD (formerly Xilinx) Kintex® UltraScale™ FPGA

View XCalibur4643

XCalibur4531 6U VME Single Board Computer

XCalibur4531

6U VME SBC

5th Gen Intel® Core™ i7 Broadwell-H Processor-Based Conduction- or Air-Cooled 6U VME Single Board Computer (SBC)

View XCalibur4531
Optimized for Embedded Applications

Enterprise-Level Support to Match Enterprise-Level Computing

Streamline the development process by working with XEL and Enterprise Linux’s thoroughly documented software, which is also supported by X-ES’ dedicated team of Linux developers. Our direct engineer and developer support provides rapid responses to minimize downtime and helps expedite development.

Information Assurance for Modern Systems

Due to increasing demand for Enterprise Linux support, XEL board support package releases are being made available to customers as a standard product.

X-ES currently supports most Enterprise Linux 6 versions both in the x86_64 and i686 architectures, all versions of Enterprise Linux 7, and RedHawk 7.2 and 7.2.3 in the x86_64 architecture. X-ES will continue to provide Gentoo-based Linux BSPs.

XEL source code is open-source under the GNU General Public License, and can be obtained in Source RPM format with each release through our add-on repository, the X-ES Open Source Software Portal.

The XEL add-on repository is intended for use on top of an existing compatible Linux installation, allowing customers to choose their distribution while supporting X-ES hardware though add-on packages. Out-of-the-box support is available for most base Enterprise Linux distributions.

Embedded Computing Solutions by X-ES

Speak to our X-ES Enterprise Linux Experts Today!

Let X-ES’ team of talented Linux developers and software engineers assist with your next embedded Linux project, utilizing our X-ES Enterprise Linux (XEL) software package to provide rapid development solutions.
