Products
FPGAs
X-ES provides a line of high-performance, embedded FPGA processing modules which include features such as FMC sites and daughter cards to simplify I/O compatibility for many different applications.
With the combination of superior signal processing capabilities as well as high speed A/D and D/A conversion, these modules are ideal solutions for high-end RF signal acquisition, SDR, and DSP requirements.
Showing all 8 results
-
XCalibur5090
Form Factor: 6U LRM
Processor: Xilinx Virtex-7
Memory: 1 GB DDR3
Serial: 1 High-Speed Serial
Single-Ended I/O: 96
ADC Input Channels: 4
DAC Output Channels: 4Dual Virtex-7 Based Digital Signal Processing 6U LRM FPGA with Quad 2500 MSPS DAC and 3200 MSPS ADC
-
XPedite2600
Form Factor: XMC
Processor: Xilinx Zynq® UltraScale+™ XCZU11EG
Memory: 16 GB DDR4
Ethernet: 1 10/100/1000BASE-T, 2 1000BASE-X
USB: 2 USB 2.0
Serial: 2 RS-232/422/485, 8 High-Speed Serial
LVDS I/O: 41 PairsXilinx Zynq® UltraScale+™ MPSoC-Based Conduction- or Air-Cooled XMC Module
-
XPedite2570
Form Factor: 3U VPX
Processor: Xilinx Kintex® UltraScale™ XCKU115
Memory: 8 GB DDR4
Serial: 2 High-Speed Serial
LVDS I/O: 44 Pairs
Single-Ended I/O: 10
Optical Transmitters: 12
Optical Receivers: 123U VPX Xilinx Kintex® UltraScale™ FPGA-Based Fiber-Optic I/O Module
-

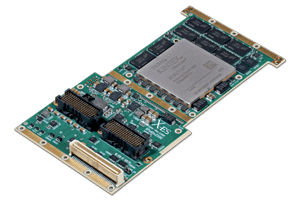

XPedite2500
Form Factor: XMC
Processor: Xilinx Kintex® UltraScale™ XCKU115
Memory: 8 GB DDR4
Serial: 8 High-Speed Serial
LVDS I/O: 45 PairsXilinx Kintex® UltraScale™ FPGA-Based Conduction- or Air-Cooled XMC Module
-
XPedite2470
Form Factor: 3U VPX
Processor: Xilinx Virtex-7
Memory: 4 GB DDR3
Serial: 11 High-Speed Serial
LVDS I/O: 56 Pairs3U VPX Xilinx Virtex-7 FPGA Module with FMC Site
-
XPedite2403
Form Factor: XMC
Processor: Xilinx Virtex-7
Memory: 8 GB DDR3
Serial: 8 High-Speed Serial
LVDS I/O: 19 Pairs
Optical Receivers: 24Xilinx Virtex-7 FPGA-Based Conduction- or Air-Cooled Fiber-Optic I/O XMC Module
-
XPedite2402
Form Factor: XMC
Processor: Xilinx Virtex-7
Memory: 8 GB DDR3
Serial: 8 High-Speed Serial
LVDS I/O: 18 Pairs
Single-Ended I/O: 2
Optical Transmitters: 12
Optical Receivers: 12Xilinx Virtex-7 FPGA-Based Conduction- or Air-Cooled Fiber-Optic I/O XMC Module
-
XPedite2400
Form Factor: XMC
Processor: Xilinx Virtex-7
Memory: 4 GB DDR3
Serial: 8 High-Speed Serial
LVDS I/O: 51 PairsXilinx Virtex-7 FPGA-Based Conduction- or Air-Cooled Digital Signal Processing XMC Module
End of Life FPGAs
Looking for End of Life (EOL) and Not Recommended for New Designs (NRND) products?
