Xilinx FPGA Technology

Choose a Xilinx FPGA family below to learn more about X-ES' expertise with it.

Xilinx Kintex UltraScale FPGAs

Cutting-Edge 20 nm Technology

The Xilinx Kintex UltraScale FPGA brings ASIC-class performance, clock management, and power management to a highly capable, next-generation 20 nm chip.

This user-programmable, reconfigurable FPGA enables increased system performance from its 8.2 TeraMACs of DSP compute performance, multiple speed grades, and 16G backplane-capable transceivers.

Kintex UltraScale keeps a focus on cost-effective, performance-oriented logic processing with its next-generation stacked silicon interconnect (SSI) technology and high DSP and block RAM-to-logic ratios.

Scalable, Rapid-Transmitting Signaling

Boasting more than half a million LEs, 424,000 logic cells, and almost 2,000 DSP slices, as well as Gen3 PCI Express interfaces, the highly-capable Kintex UltraScale FPGA is able to rapidly receive and transmit signals in even the harshest of environments to ensure signal integrity when it matters most.

X-ES offers an FPGA Development Kit (FDK) for our boards that support the Kintex UltraScale FPGA, which includes an X-ES tested and proven example design that assists developers and allows them to focus on application development and not on hardware integration.

View the X-ES FPGA Development Kit to learn more about utilizing its extensive resources.

Featured Xilinx Kintex UltraScale FPGA Products

XPedite7674 3U VPX Single Board Computer (SBC)

XPedite7674

Intel® Xeon® D processor-based 3U VPX-REDI single board computer (SBC) with dual 10 Gigabit Ethernet and user-configurable Xilinx Kintex® Ultrascale™ FPGA for secure processing.

XCalibur4643 6U VPX SBC

XCalibur4643

Intel® Xeon® D processor-based 6U VPX module with quad 10GbE, dual XMC/PMC sites, and onboard Xilinx Kintex® Ultrascale™ FPGA module for user-programmable custom logic applications.

XPedite2570 3U VPX Fiber-Optic I/O Module

XPedite2570

Xilinx Kintex® Ultrascale™ FPGA-based 3U VPX module with multiple high-speed fabric interfaces, x8 PCI Express Gen3, 12 high-speed fiber-optic transceivers, and 8 GB of DDR4-2400 SDRAM.

XCalibur1412 AdvancedTCA (ATCA) Blade

XCalibur1412

Intel® Xeon® E5-2600 v4 family processor-based AdvancedTCA (ATCA) blade with a tightly coupled Xilinx Kintex® UltraScale™ security FPGA and up to 56 Gb/s InfiniBand or 40/56 Gigabit Ethernet ports.

Xilinx Virtex-7 FPGAs

Incredible Logic Performance in a Small Package

The Xilinx Virtex-7 family of FPGAs offer unprecedented levels of logic processing and performance, all confined within a power-efficient, 28 nm chip.

Its scalable architecture offers up to two million logic cells, 6.8 billion transistors, and 12.5 Gb/s serial transceivers in a single device.

X-ES takes advantage of the Virtex-7’s high-bandwidth, low-latency processing in order to deliver unparalleled performance in rugged environments on 3U VPX, XMC, and 6U LRM FPGA processor cards.

Achieve New Levels of Signal Processing

Virtex-7 FPGAs are precision-engineered to deliver cutting-edge performance all packed into a single chip, which offers further reduced power consumption than comparable multi-chip solutions.

Even the most demanding logic-processing applications will benefit from the ultra-high-end bandwidth, high throughput, and capacity that Virtex-7 FPGAs can consistently deliver.

X-ES offers an FPGA Development Kit (FDK) for our Virtex-7 FPGA modules, which includes an X-ES tested and proven example design that assists developers and allows them to focus on application development and not on hardware integration. View the X-ES FPGA Development Kit to learn more about utilizing its extensive resources.



Featured Xilinx Virtex-7 FPGA Products

XPedite2470 3U VPX FPGA

XPedite2470

3U VPX FPGA with 4 GB of DDR3L SDRAM in four channels and an NXP (formerly Freescale) QorIQ processor for DSP and logic applications.

XPedite2402 XMC FPGA Module

XPedite2402

XMC FPGA module with dual x8 PCIe Gen3 interfaces, external memory, & twelve high-speed fiber-optic transceivers.

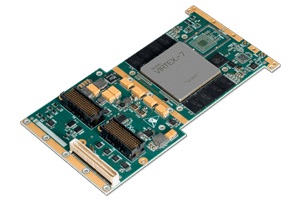

XPedite2400 XMC FPGA Module

XPedite2400

XMC FPGA module with a x8 PCI Express interface, external memory, and flexible, high-density I/O for high-performance data processing.

XCalibur5090 6U LRM FPGA-Based Module

XCalibur5090

Dual Virtex-7 FPGA-based module with quad 2500 MSPS DAC and Dual 3200 MSPS ADC in rugged 6U form factor.

Xilinx Artix-7 FPGAs

Twice the Performance, Half the Power

The Xilinx Artix-7 is a low-density family of FPGAs and an industry leader in transceiver optimization. The Xilinx Artix-7 family offers the highest performance for the lowest power of any low-end FPGA on the market.

Based on TSMC’s 28 nm process technology, the Xilinx Artix-7 incorporates 6.6 Gb/s transceivers permitting 211 Gb/s ultimate bandwidth while operating on 50% less power than preceding Series 7 generations.

Xilinx Artix 7 on XCalibur4531
Xilinx Artix-7 XCalibur1931 & XCalibur4531

Boosting Innovation in Embedded Systems

Xilinx Artix-7 FPGAs meet the unique requirements of size, weight, power, and cost (SWaP-C) required by the aerospace, defense, and communications industries.

Highly versatile and cost-effective, the Xilinx Artix-7 boasts an impressive array of features while maintaining the industry’s best performance-to-power ratio among low-end FPGAs. Its remarkable efficiency makes the Xilinx Artix-7 an excellent choice for a diverse set of applications including medical, software-defined radio, and military equipment.

Why We Use the Xilinx Artix‑7

X-ES primarily uses the Xilinx Artix-7 as an FPGA-based VME-to-PCIe bridging solution. Chosen for its long life, high performance-per-watt, and cost efficiency, the Xilinx Artix-7 has proven to be an effective substitute for the discontinued Tsi148 VME bridge.

The Xilinx Artix-7 is also a familiar architecture for our engineers, who have incorporated Xilinx Artix-, Kintex-, and Virtex-7 FPGAs into many X-ES board designs. Our extensive experience with the Xilinx 7 Series serves as the basis for continued innovation.

Featured Xilinx Artix-7 FPGA Products

XCalibur1931 6U VME SBC

XCalibur1931

6U VME SBC with 8 GB of DDR3-1866 ECC SDRAM and an NXP (formerly Freescale) QorIQ T2080 processor with four dual-threaded e6500 cores running at up to 1.8 GHz.

XCalibur4531 6U VME SBC

XCalibur4531

5th Gen Intel® Core™ i7 Broadwell-H Processor-Based 6U VME SBC featuring up to 16 GB of DDR3L-1600 ECC SDRAM, two XMC/PrPMC slots, and numerous I/O ports.

XCalibur1832 6U VME SBC

XCalibur1832

NXP (formerly Freescale) QorIQ T4240 12-core processor-based 6U VME SBC with three Gigabit Ethernet ports and optional XIM site supporting dual XAUI ports.

XChange4003 6U VME Carrier

XChange4003

VME64x carrier card that facilitates connectivity of XMC/PMC modules to the VMEBus by utilizing a Xilinx Artix-7 FPGA-based VME bridging solution.
