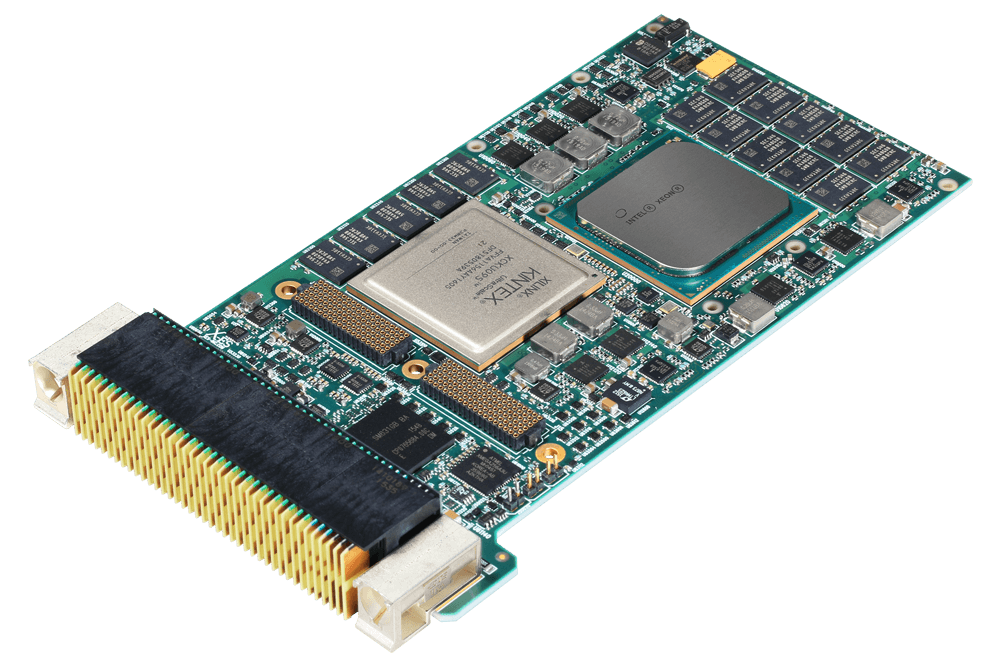

XPedite7674 no shadow
Embedded Computing Applications

VPX Products

X-ES provides a comprehensive line of 3U VPX and 6U VPX embedded computing products, including Intel® VPX, PowerPC VPX, and QorIQ VPX Single Board Computers (SBCs), carriers, switches, and I/O cards for embedded computing applications.

Since the environmental and SWaP constraints associated with rugged, deployed solutions complicate the design and integration of these systems, X-ES provides system-level components such as backplanes, power modules, development platforms, and rugged, deployable systems.

Explore Products

3U VPX SBCs

XPedite7572 3U VPX SBC

X-ES provides 3U VPX Single Board Computers based on the latest Intel® and NXP (formerly Freescale) QorIQ processors. These Single Board Computers from X-ES are available in air-cooled and conduction-cooled versions to support a wide variety of applications across multiple industries.

View 3U VPX SBCs

6U VPX SBCs

XCalibur4643 6U VPX SBC

X-ES provides 6U VPX Single Board Computers based on the latest Intel® and NXP (formerly Freescale) QorIQ processors. These Single Board Computers from X-ES are available in air-cooled and conduction-cooled versions to support a wide variety of applications across multiple industries.

View 6U VPX SBCs

3U VPX FPGAs

XPedite2470 3U VPX FPGA

X-ES provides a high-performance FPGA processing module in the industry-standard 3U VPX form factor. This configurable module includes features such as FMC sites and daughter cards to simplify I/O compatibility for many different applications.

View 3U VPX FPGAs

VPX Rugged Systems

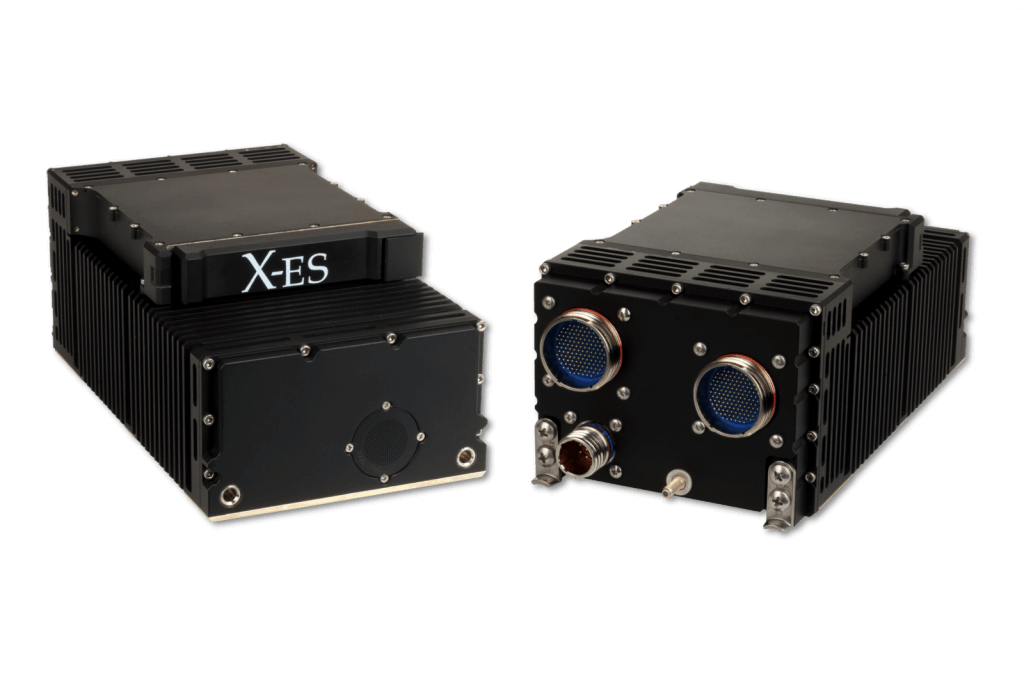

XPand6208 Rugged COTS System

X-ES provides a line of high-performance, rapid-development 3U VPX Rugged COTS-Based Systems. These forced-air-cooled, fully ruggedized chassis are designed to meet the rigorous standards of MIL-STD-810 F/G and DO-160 while integrating the latest power-saving and performance-enhancing technology.

View VPX Rugged Systems

VPX Development Systems

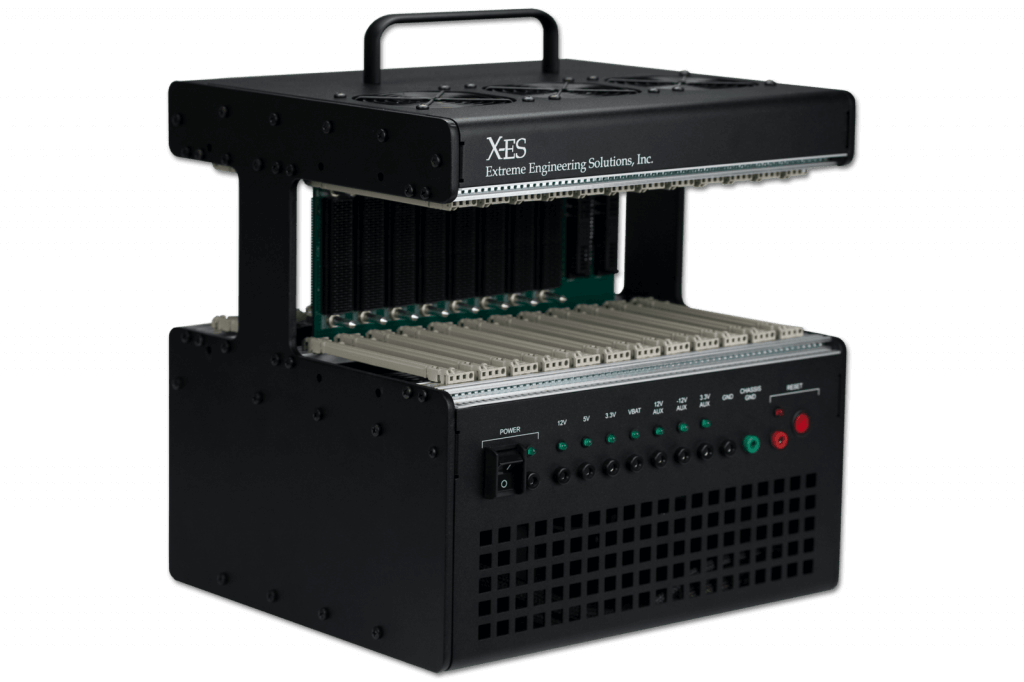

XPand1300 3U VPX Development System

X-ES provides a line of high-performance, flexible 3U VPX VITA 67 Development Systems. These conduction- and air-cooled, rapid-development platforms are designed to simplify development while integrating the latest power-saving and performance-enhancing technology.

View VPX Development Systems

3U VPX Switches

XChange3021 3U VPX Embedded Ethernet Switch

X-ES provides 3U VPX Gigabit and 10 Gigabit Ethernet switch modules. These boards are designed for maximum port density and performance, and are tested for use within extreme environments. They can be configured as a fully-managed Layer 2 switch, and can support compliance to the VICTORY specification as an Infrastructure Switch and Router.

View 3U VPX Switches

6U VPX Switches

XChange3100 6U VPX Ethernet Switch

X-ES provides a 6U VPX 10 Gigabit Ethernet switch module that supports various configurations of up to twenty-two 10 Gigabit Ethernet ports, twelve 10/100/1000BASE-T Ethernet ports, and eighty-eight 1000BASE-X Ethernet ports. It can be configured as a fully-managed Layer 2 switch or optionally as a Layer 3 Router, and can support compliance to the VICTORY specification as an Infrastructure Switch and Router.

View 6U VPX Switches

3U VPX Power Supplies

XPm2222 3U VPX Power Supply

High-performance and extremely rugged 3U VPX power supplies from X-ES enable integrators to reduce the SWaP, cost, and complexity from their system. These power supplies have been designed and tested to a number of Military standards, including MIL-STD-704, MIL-STD-1275, MIL-STD-461, and MIL-STD-810.

X-ES power supplies can also be integrated into our rugged systems and development systems.

View 3U VPX Power Supplies

3U VPX Carriers

XChange3000 3U VPX XMC/PMC Carrier Card

X-ES provides a 3U VPX-REDI Carrier card solution, the XChange3000. It can support a single-width XMC or PrPMC card. The XChange3000 provides easy integration of standard mezzanine cards into modern VPX backplanes.

X-ES offers a wide variety of XMC/PMC mezzanine boards to pair with our 3U VPX carrier.

View 3U VPX Carriers

3U VPX Storage

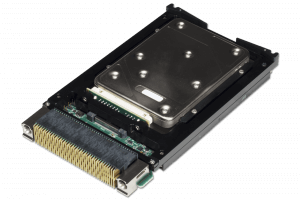

XPort6175 3U VPX Storage Module

X-ES provides a 3U VPX-REDI Solid-State Drive (SSD) Storage solutions. They are capable of operating within the demanding environments of MIL-STD-810F including harsh temperatures from -40°C to 85°C as well as rigorous shock and vibration conditions.

X-ES 3U VPX SSD Storage can support up to two, ruggedized 2.5″ drives for a total of 2 TB of storage, and its SLC NAND flash components allow it to support a minimum of 100,000 program/erase cycles.

View 3U VPX Storage Modules

3U VPX RTMs

XIt1085 3U VPX RTM

X-ES provides 3U VPX Rear Transition Modules (RTMs) that enable I/O expansion and access for a variety of products, such as 3U VPX SBCs and switches. Features include access to as many as fourteen Gigabit Ethernet ports, a JTAG header, micro-DB-9 connectors, RS-232/422/485 serial, SATA, DisplayPort interfaces, and USB.

X-ES 3U VPX RTMs can provide I/O expansion to our rugged systems and development systems.

View 3U VPX RTMs

6U VPX RTMs

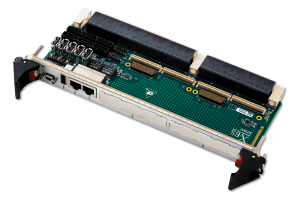

XIt1041 6U VPX RTM

X-ES provides 3U VPX Rear Transition Modules (RTMs) that enable I/O expansion and access for a variety of products, such as 6U VPX SBCs and switches. Features include access to as many as fourteen Gigabit Ethernet ports, a JTAG header, micro-DB-9 connectors, RS-232/422/485 serial, SATA, DisplayPort interfaces, and USB.

X-ES 6U VPX RTMs can provide I/O expansion to our rugged systems and development systems.

View 6U VPX RTMs

3U VPX Backplanes

XTend4131 3U VPX Backplane

X-ES provides 3U VPX backplanes that are designed in accordance with the OpenVPX™ system architecture specifications. These backplanes can support up to two 3U VPX centralized switches, and can support an expansion plane leaf node connection for each slot connected to the centralized switch. With support for up to six 3U VPX payload slots, DC-DC power supply support, VITA 46.10 RTM support, and more, X-ES is certain to have a backplane to support your development needs.

View 3U VPX Backplanes
