XPand6904 Development Kit

Rapid-Prototyping Development Kit for the XPand6904 Rugged System

The kit breaks out the XPand6904's I/O to development-friendly commercial connectors and includes power supplies for powering the unit from standard 120 VAC wall outlets.

The XPand6904 Development Kit is available as an accessory to select X-ES products and is not sold separately.

End of Life

Please contact X-ES Sales for assistance with choosing a recommended replacement product.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90073050 Category:
XPand6904 Development Kit

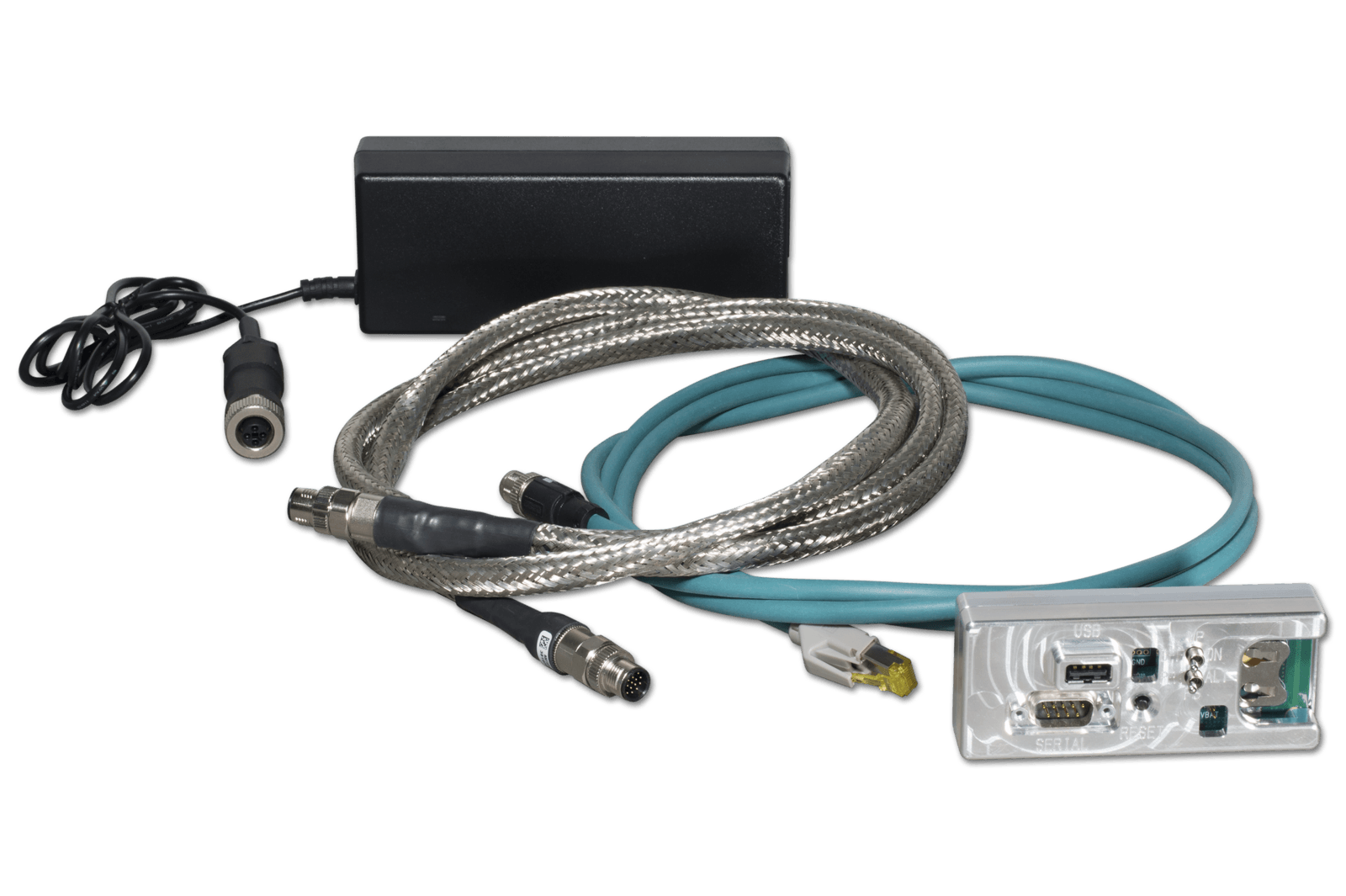

The XPand6904 Development Kit is provided to simplify and speed up development with the XPand6904 rugged system. The kit breaks out the XPand6904’s I/O to development-friendly commercial connectors and includes power supplies for powering the unit from standard 120 VAC wall outlets.

The XIt9025 I/O breakout development fixture, included in the XPand6904 Development Kit, offers an RS-232 serial port via a DB-9 connector, a USB port, and reset switches. The kit also includes the XTend5040 pass-through cable to connect the XIt9025 to the XPand6904. A standard X-coded to RJ-45 cable for Gigabit Ethernet is also included, which can be connected to either J12 or J13.

The XIt9026 I/O breakout adapter for J6, J7, and J8 connectors is not included with the XPand6904 Development Kit but is available as an optional accessory. The XIt9026 breaks out to two DB-9 connectors and can be connected to the XPand6904 using the XTend5041 pass-through cable. Please contact the factory for more information about these accessories.

Features

  • Circular connector pass-through cable available for connecting development fixture to the XPand6904
  • Development fixture breaks out I/O to standard commercial connectors
  • Includes 120 VAC to DC power supply and cables for powering the XPand6904
  • Additional accessories available to access I/O from other connectors

Technical Specs

XIt9025 I/O Breakout Station

  • RS-232 serial port via DB-9 connector
  • USB 2.0 port
  • Write-protect toggle switch
  • Flash-select toggle switch
  • Reset push-button switch
  • VBAT holder for 20.0 mm battery

Cables

  • Circular connector pass-through cables to connect the XPand6904 to the XIt9025
  • Standard X-coded to RJ-45 cable for Gigabit Ethernet connection, usable on either J12 or J13

Power Supply

  • Includes the XPm9007 120 VAC to DC power supply and cable for powering the XPand6904

Accessories

  • XIt9025 (90073195) - I/O breakout development fixture with RS-232 serial port via DB-9 connector, USB port, and reset switches
  • XIt9026 (90073200) - Optional I/O breakout adapter for J6, J7, and J8 connectors
  • XPm9007 (90073110) - 120 VAC to DC power supply
  • XTend5040 (90073240) - Pass-through cable to connect XIt9025 to XPand6904
  • XTend5041 (90073245) - Optional pass-through cable to connect XIt9026 to XPand6904

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram

Additional Information

Datasheet


View the XPand6904 Development Kit Datasheet PDF


Download Datasheet

Rugged System


View the XPand6904 Rugged System


View Product
