XTend4131

3U VPX Development Backplane with Centralized Switching and Leaf Node Support

When one switch is used, the XTend4131 provides a single star centralized switching topology on the control plane and three fat pipes on the data plane. When two centralized switches are installed, the XTend4131 supports redundancy on the control plane with a dual star implementation.

End of Life (EOL)

Please contact X-ES Sales for assistance with choosing a recommended replacement product.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90020145 Category:

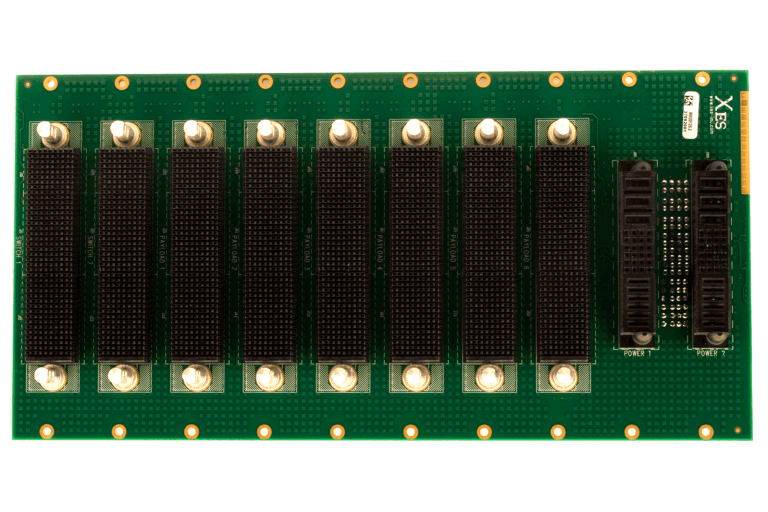

XTend4131 3U VPX Backplane

The XTend4131 is a 3U VPX development backplane designed in accordance with OpenVPX™ system architecture specifications that supports one or two centralized switches. When one switch is used, the XTend4131 provides a single star centralized switching topology on the control plane and three fat pipes on the data plane.

When two centralized switches are installed, the XTend4131 supports redundancy on the control plane with a dual star implementation. The XTend4131 supports an expansion plane leaf node connection for each slot connected to the centralized switch.

The XTend4131 provides VITA 46.10 RTM connectors for each payload slot and switch slot, and supports connectors for up to two parallel power supply slots. The XTend4131 also supports power sourced from a development DC-DC power supply.

X-ES backplanes are available as an integrated component of our embedded systems, and are not sold separately.

Features

  • OpenVPX™-compliant
  • Six 3U VPX payload slots
  • One switch slot
  • Redundant switch slot (optional)
  • Two power supply slots
  • Supports development DC-DC power supply
  • Fat Pipe data plane with leaf node support
  • Ultra Thin Pipe control plane in dual star topology
  • VITA 46.10 RTM support for all payload and switch slots
  • 1.0 in. pitch

Technical Specs

Payload Slots

  • Six 3U VPX payload slots
  • One or Two x4 Fat Pipes per slot (data/expansion plane)
  • Two x1 Ultra Thin Pipes per slot (control plane)

Switch Slots

  • Redundant switch configuration options available
  • Three x4 Fat Pipes on primary slot (data plane)
  • Six x1 Ultra Thin Pipes per slot (control plane)
  • Supports XMC I/O from switch
  • XChange3012-compatible

Power Slots

  • Two power supply slots
  • Supports development DC-DC power supply
  • 12 V, 5 V, 3.3 V and ±12 V_AUX, 3.3 V_AUX
  • Up to 50 W per slot (400 W max)

VITA 46.10 RTM

  • VITA 46.10 RTM connectors on each payload and switch slot for rear I/O

Bandwidth

  • Data plane routing supports up to 5 Gbaud transfer rates
  • Control plane routing supports up to 5 Gbaud transfer rates
  • Expansion plane routing supports up to 5 Gbaud transfer rates

Physical Dimensions

  • 3U VPX form factor
  • 129 mm x 258 mm

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
  • Conformal coating available as an ordering option

Accessories

Please contact X-ES Sales at sales@xes-inc.com or by phone at +1-608-833-1155 for information on this product's accessories.

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram

Additional Information

Datasheet

View the XTend4131
Datasheet PDF

Download Datasheet

3U VPX Backplanes

View the full selection of 3U VPX Backplanes from X-ES

View All
