XPedite5301

NXP (formerly Freescale) Dual-Core MPC8572E PowerQUICC™ III Processor-Based Conduction-Cooled XMC/PMC Mezzanine Module

With dual PowerPC e500 cores running at up to 1.5 GHz, the NXP (formerly Freescale) MPC8572E delivers enhanced performance and efficiency for today's network information processing and other embedded computing applications.

End of Life

Please contact X-ES Sales for assistance with choosing a recommended replacement product.

Learn more about this product below »

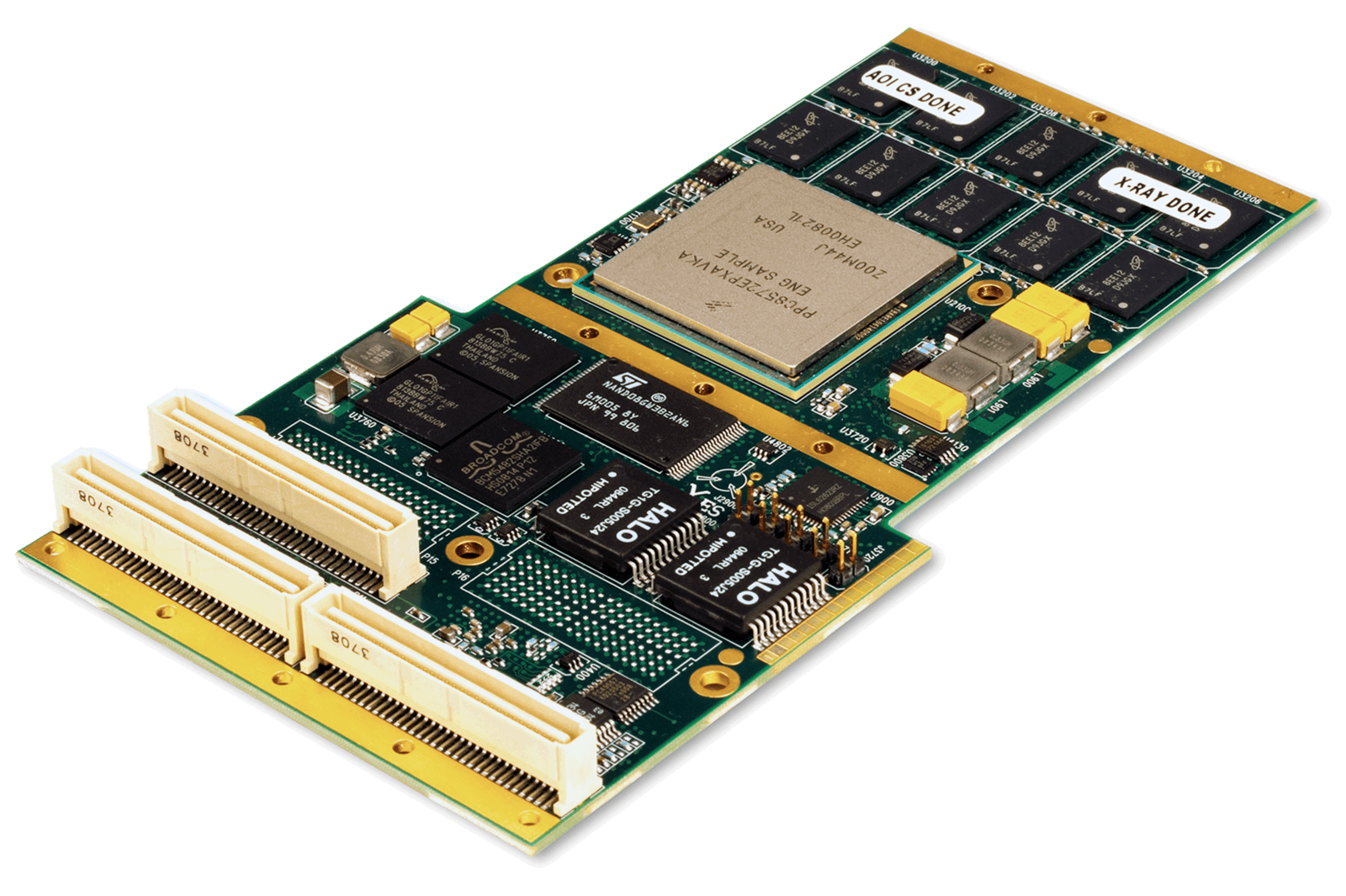

XPedite5301 XMC/PMC Module

The XPedite5301 is a conduction-cooled XMC/PMC mezzanine module based on the NXP (formerly Freescale) PowerQUICC™ III MPC8572E processor. With dual PowerPC e500 cores running at up to 1.5 GHz, the MPC8572E delivers enhanced performance and efficiency for today’s network information processing and other embedded computing applications.

Complementing processor performance, the XPedite5301 features two separate channels of up to 1 GB each of DDR2-800 ECC SDRAM. A software-configurable SerDes interface (PCI Express or Serial RapidIO) to the XMC connector and a conventional PCI interface to the PMC connectors provide ample bandwidth to the MPC8572E. Two Gigabit Ethernet ports and two RS-232/422/485 ports are routed to P14 or P16 for additional system flexibility. A detachable front panel provides one 10/100/1000BASE-T Ethernet port and one RS-232 serial port for development.

The XPedite5301 provides a high-performance, feature-rich solution for current and future generations of embedded applications. Operating system support packages for the XPedite5301 include Wind River VxWorks,QNX Neutrino, Green Hills INTEGRITY, and Linux 2.6.

Features

  • NXP PowerQUICC™ III MPC8572E processor with dual PowerPC e500 cores at up to 1.5 GHz
  • Conduction cooling
  • Extended shock and vibration tolerance
  • Up to 2 GB (1 GB each) of DDR2-800 ECC SDRAM in two channels
  • x4 PCI Express or Serial RapidIO interface to P15
  • PCI PrPMC interface
  • Two Gigabit Ethernet ports to P14 or P16
  • Two RS-232/422/485 serial ports to P14 or P16
  • Up to 256 MB of NOR flash (with redundancy)
  • Up to 4 GB of NAND flash
  • Detachable front panel for development
  • Linux BSP
  • Wind River VxWorks BSP
  • QNX Neutrino BSP
  • Green Hills INTEGRITY BSP

Technical Specs

Processor

  • NXP (formerly Freescale) PowerQUICC™ III MPC8572E processor
  • Dual PowerPC e500 cores at up to 1.5 GHz
  • 1 MB of shared L2 cache

Memory

  • Up to 2 GB (1 GB each) of DDR2-800 ECC SDRAM in two channels
  • Up to 256 MB of NOR flash (with redundancy)
  • Up to 4 GB of NAND flash

PrPMC Interface

  • 66/33 MHz PCI
  • 32-bit bus interface

P15 XMC Interface

  • x4 configurable PCI Express or Serial RapidIO

P14/P16 XMC/PMC Interface

  • Two 10/100/1000BASE-T Ethernet ports
  • Two RS-232/422/485 serial ports
  • 3.3 V GPIO

Software Support

  • Linux BSP
  • Wind River VxWorks BSP
  • QNX Neutrino BSP
  • Green Hills INTEGRITY BSP

Physical Characteristics

  • Conduction-cooled XMC/PMC form factor
  • Dimensions: 143.75 mm x 74 mm, 10 mm stacking height

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 5
  • Conformal coating available as an ordering option

Power Requirements

  • Maximum power consumption: 26 W (with 1.5 GHz processor), 23 W (with 1.33 GHz processor)

Accessories

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram

XPedite5301 XMC/PMC Module
XPedite5301 — XMC/PMC Mezzanine Module
