Introducing the XPedite2570 with Xilinx Kintex® UltraScale™ FPGA

A Cost-Optimized Embedded Computing Solution for High-Bandwidth Applications

Extreme Engineering Solutions (X-ES) introduces the XPedite2570, a rugged FPGA processing module with a high-speed optical front-end interface.

Equipped with an integrated Xilinx Kintex® UltraScale™ FPGA, the XPedite2570 optimizes both cost and performance for high-bandwidth embedded computing applications such as packet processing, signal processing, and DSP-intensive applications.

View XPedite2570

XPedite2570 FPGA Processing Module

Xilinx Kintex® UltraScale™ FPGAs

Great Performance Without Great Cost

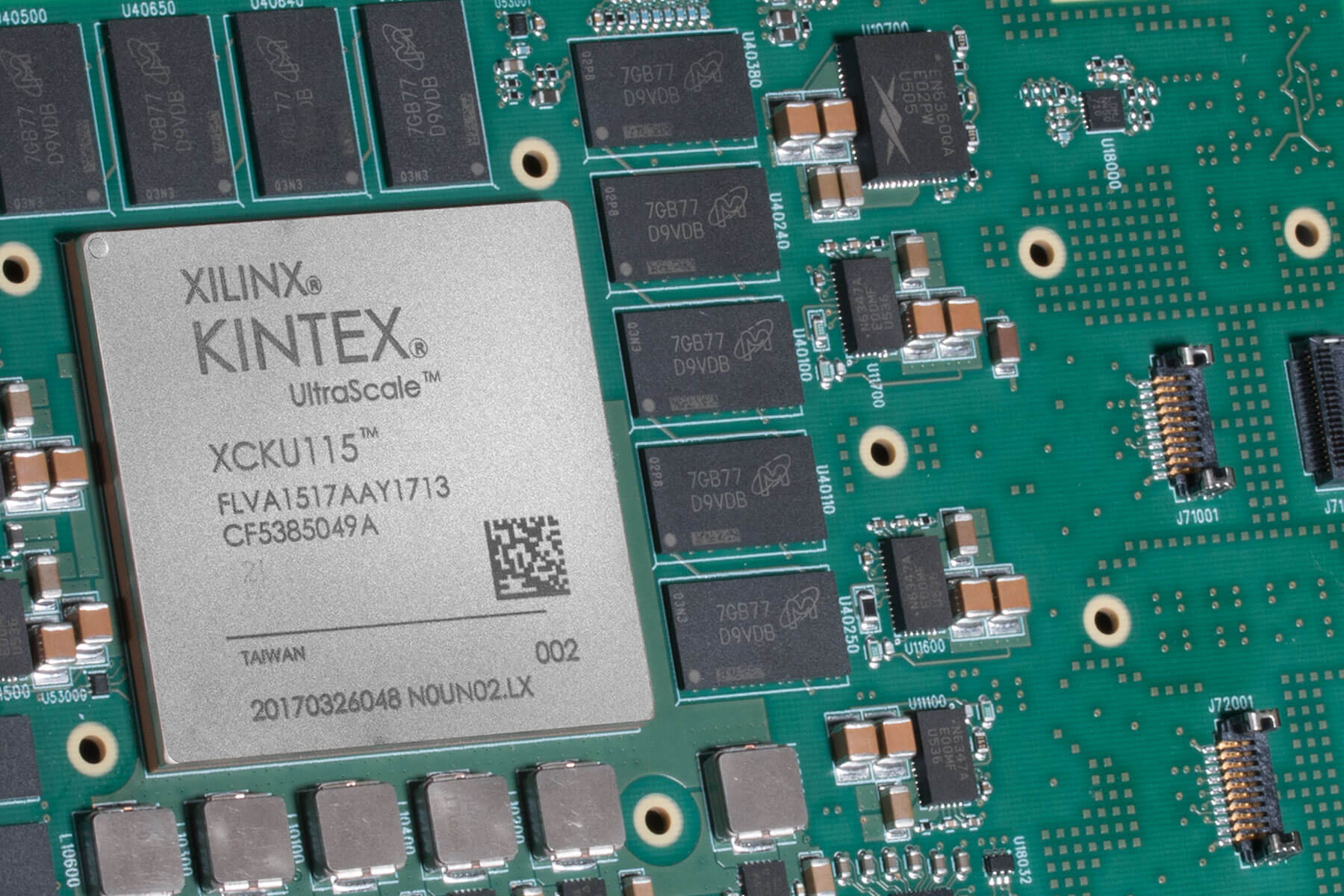

The XPedite2570 is a high-performance, conduction-cooled 3U VPX FPGA processing module based on the Xilinx Kintex® UltraScale™ XCKU115 FPGA. The Xilinx Kintex® UltraScale™ family of FPGAs provides the best price/performance/watt at 20 nm, as well as the highest signal processing bandwidth for a mid-range device.

Ideal for programs that need to optimize both cost and capability, the Kintex® UltraScale™ XCKU115 packs over 1.4M system logic cells, 5,520 DSP slices, and 75.9 Mb of block RAM into a cost-effective package. It also provides a straightforward upgrade path for legacy systems, offering up to 40% power savings compared to the previous generation of FPGAs.

Optimized for High-Bandwidth Applications

The XPedite2570 is a reconfigurable FPGA resource designed to meet the demands of high-bandwidth applications. On-board features include:

  • 12 rugged, protocol-independent fiber optic transceivers operating at up to 10.3125 Gb/s
  • 8 GB of DDR4 ECC SDRAM in two channels capable of up to 38 GB/s aggregate bandwidth
  • Several options for high-performance backplane I/O, including a x8 PCI Express Gen3 interface, dual GTH transceivers with a maximum data rate of 16.375 Gb/s, and up to 44 LVDS transceivers for user I/O

Application Developers Can Hit the Ground Running

X-ES’ board support package for the XPedite2570 includes an FPGA Development Kit for Xilinx Vivado complete with a reference design, IP Integrator IP blocks, HDL, test benches, and Linux drivers, so developers can jump right into application development without having to work through hardware integration issues.

XPedite7670 3U VPX SBC

Build a Rugged COTS System with Compatible X-ES Products

For lower development costs and faster deployment, pair the XPedite2570 with a 3U VPX single board computer (SBC) and install them together in the XPand6215, a Commercial-Off-the-Shelf (COTS) rugged system designed to meet the rigorous standards of MIL-STD-704F and MIL-STD-461.

The XPand6215 can support several SBCs from the XPedite767x product line, such as the XPedite7670. This family of high-performance SBCs is based on the Intel® Xeon® D processor, which provides up to 16 Xeon®-class cores in a single, power-efficient System-on-Chip (SoC) package.

Want to learn more about the XPedite2570?

Contact X-ES
