XCalibur1002

IBM 750GX Processor-Based Conduction- or Air-Cooled 6U cPCI Single Board Computer (SBC)

The XCalibur1002 is a 6U CompactPCI single-board computer with a PICMG 2.16 Gigabit Ethernet backplane interface and a 1.0 GHz IBM PowerPC 750GX Processor. The XCalibur1002 is well-suited for telecom, industrial, and general computing applications.

End of Life

Please contact X-ES Sales for assistance with choosing a recommended replacement product.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90050030 Category:

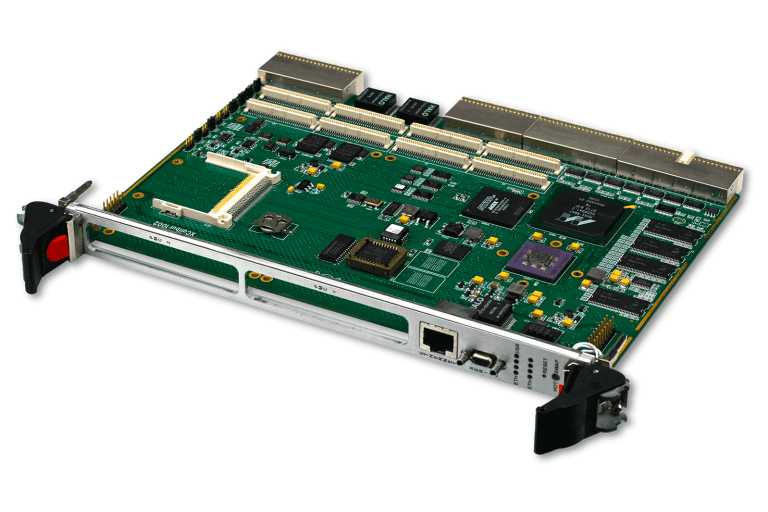

XCalibur1002 6U cPCI SBC

The XCalibur1002 is a 6U CompactPCI single-board computer with a PICMG 2.16 Gigabit Ethernet backplane interface and a 1.0 GHz IBM PowerPC 750GX Processor. The XCalibur1002 is well-suited for telecom, industrial, and general computing applications.

The XCalibur1002 provides a highly-configurable processing platform. Its DDR-400 SDRAM provides up to 1 GB of local memory. An optional CompactFlash interface accepts up to 1 GB of non-volatile memory. Two PCI-X PrPMC slots are available for high bandwidth I/O.

Hot Swap support allows the XCalibur1002 to be installed into a live system without disrupting cPCI bus activity. In addition, system management bus support allows the card to be powered down and reset remotely through the IPMI interface.

For the system designer, the XCalibur1002 provides a feature-rich solution to support the next generation of embedded applications.

Features

  • IBM 750 GX PowerPC 1.0 GHz processor
  • Dual PCI-X PrPMC slots
  • Autosense system/peripheral slot
  • Hot Swap support
  • Up to 1 GB DDR-400 SDRAM
  • Up to 144 MB soldered NOR flash
  • CompactFlash socket
  • Front panel serial port
  • Front panel 10/100/1000 Gigabit Ethernet ports
  • Two PICMG 2.16 backplane Ethernet ports
  • Complies with PICMG 2.0, 2.1, 2.3, 2.9, and 2.16
  • VxWorks BSP
  • Linux BSP
  • OSE BSP
  • QNX Neutrino BSP
  • Green Hills INTEGRITY BSP

Technical Specs

Processor

  • IBM PowerPC 750GX processor
  • 1.0 GHz max processor speed
  • 200 MHz 60x bus speed
  • 32 kB L1 instruction/data caches
  • 1 MB L2 cache

Memory

  • Up to 1 GB DDR-400 SDRAM
  • Up to 144 MB soldered NOR flash
  • 512 kB socketed flash
  • 512 byte SEEPROM
  • 32 kB FRAM

cPCI

  • PICMG 2.1 (Hot Swap support)
  • PICMG 2.3 (routes PMC I/O to P3 and P5)
  • PICMG 2.9 (dedicated IPMI controller)
  • PICMG 2.16 (two 10/100/1000BASE-T Ethernet ports)

PCI-X PMC Slots

  • Maximum aggregate bandwidth of 1 Gb/s
  • Processor PMC (PrPMC) support
  • 10 mm stacking height

Software Support

  • Linux BSP
  • Wind River VxWorks BSP
  • OSE BSP
  • QNX Neutrino BSP
  • Greens Hills INTEGRITY BSP
  • Ethernet and IPMI drivers

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
  • Conformal coating available as an ordering option

Power Requirements

  • 3.3 V, 3.03 A, 10 W
  • 5 V, 2.5 A, 12.5 W

Accessories

Please contact X-ES Sales at sales@xes-inc.com or by phone at +1 (608) 833-1155 for information on this product's accessories.

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram
