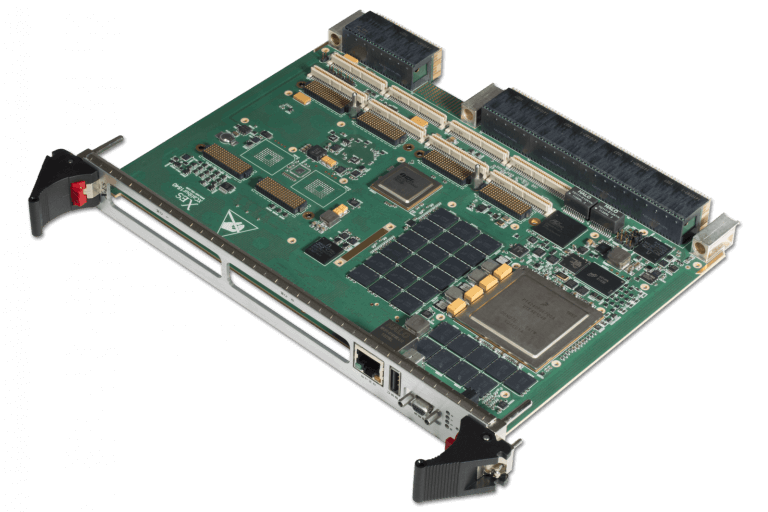

The XCalibur1840 is a high-performance, 6U VPX, single board computer supporting NXP (formerly Freescale) QorIQ T4 processors. With 12 dual-threaded Power Architecture® e6500 cores running at up to 1.8 GHz, the T4240 delivers enhanced performance and efficiency for today’s embedded computing applications.
The T4240 brings raw multi-core power, along with three-channel DDR3 memory and a high-performance 128-bit AltiVec unit per core to deliver unparalleled performance. For more power-conscious applications, the T4160 processor offers eight dual-threaded e6500 cores and the T4080 processor offers four dual-threaded e6500 cores, both running at up to 1.8 GHz with two-channel DDR3 memory and all within a significantly reduced power envelope.
The XCalibur1840 is a powerful, feature-rich solution for the next generation of compute-intensive embedded applications. Wind River VxWorks, Linux, and Green Hills INTEGRITY-178 tuMP Board Support Packages (BSPs) are available. Wind River VxWorks and Linux BSPs may optionally be paired with the NXP hypervisor software to facilitate secure partitioning.
Technical Specs
Processor
- NXP QorIQ T4240 processor
- 12 dual-threaded PowerPC e6500 cores at up to 1.8 GHz
- 2 MB L2 cache per quad
- 512 kB platform cache per channel (3)
- IEEE 754 Floating-Point Unit (FPU) support
- 128-bit AltiVec engine per core
Alternate Processor Configurations
- T4160 processor with eight dual-threaded Power Architecture® e6500 cores at up to 1.8 GHz
- T4080 processor with four dual-threaded Power Architecture® e6500 dual cores at up to 1.8 GHz
Memory
- Up to 24 GB of DDR3 ECC SDRAM in three channels
- Up to 512 MB of NOR flash (with redundancy)
- Up to 64 GB of CPU NAND flash
- Up to 64 GB SATA NAND flash (optional)
VPX
- VITA 46.0
- VITA 46.11 (System Management on VPX)
- VITA 46.4 (Four x4 PCIe lanes to P1)
- VITA 46.7 (Two 1000BASE-BX Ethernet ports to P4)
- VITA 46.9 (XMC and PMC I/O to P3, P4, P5, P6, mapping P3w1P4-P64s+X12d+X8d)
Back Panel I/O
- Two SATA ports capable of 3 Gb/s
- Up to two USB 2.0 ports
- Two RS-232/422/485 serial ports
- Two 10/100/1000BASE-T Ethernet ports
- Up to two 1000BASE-BX Ethernet ports
- XMC and PMC I/O
- 10GbE XAUI (optional)
- Four x4 PCI Express Gen2 interfaces
Front Panel I/O (Optional)
- Dual RS-232 serial ports
- Gigabit Ethernet port
- USB 2.0 port
- General-purpose LEDs
- Two 10GBASE-T Ethernet ports to front panel using I/O mezzanine card
XMC/PrPMC
- PCI-X (64/32-bit, 100/66 MHz)
- PCI (64/32-bit, 66/33 MHz)
- PCI Express to XMC sites (x4 to XMC 0, x8 to XMC 1)
IPMI
- Onboard management controller
- VITA 46.11 Tier 1 and Tier 2 IPMI Controller (IPMC)
Software Support
- Wind River VxWorks BSP with optional NXP hypervisor support for secure partitioning
- Linux BSP with optional NXP hypervisor support for secure partitioning
- Green Hills INTEGRITY-178 tuMP BSP
- Contact factory for availability of QNX Neutrino and LynuxWorks LynxOS BSPs
Physical Characteristics
- 6U VPX-REDI conduction- or air-cooled form factor
- Dimensions: 233 mm x 160 mm
- 0.8 in. pitch
- 1.0 in. pitch Two-Level Maintenance (2LM)
Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements.
- Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
- Conformal coating available as an ordering option
- Thermal performance will vary based on CPU frequency and application
Power Requirements
- Power will vary based on configuration and usage. Please consult factory.
