XPand1011

Two-Slot 6U VPX Development Platform for Conduction-Cooled Modules with RTM I/O

XPand1011 supports up to two 0.8 in. or 1.0 in. 6U VPX boards and utilizes RTMs to simplify I/O access and support rapid system prototyping.

Power and reset LEDs are provided for system status. A momentary push button is provided for reset, and a switch is provided for DC power enable. Power can be provided via an ATX power supply or via the VPX VITA 62 power supply slot.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90072275 Categories: ,
XPand1011 6U VPX Development Platform

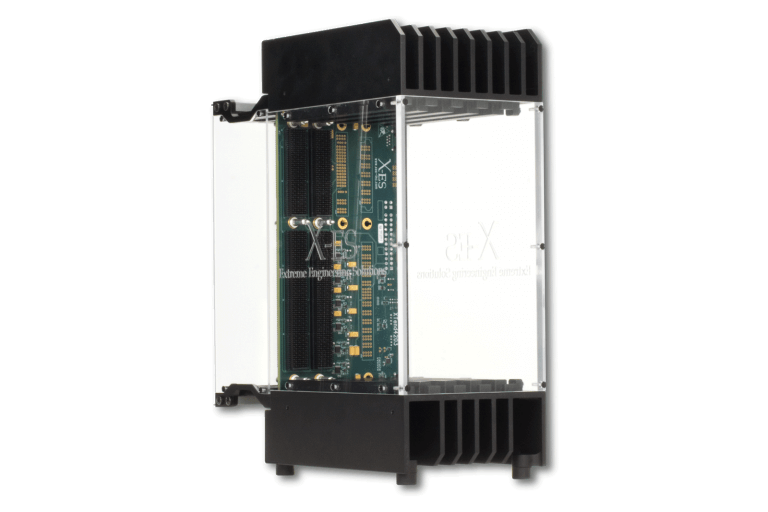

The XPand1011 system is a low-cost development platform for conduction-cooled 6U VPX cards. It supports up to two 0.8 in. or 1.0 in. 6U VPX boards and utilizes RTMs to simplify I/O access and support rapid system prototyping.

Power and reset LEDs are provided for system status. A momentary push button is provided for reset, and a switch is provided for DC power enable. Power can be provided via an ATX power supply or via the VPX VITA 62 power supply slot.

The XPand1011 provides a connector for accessing utility plane I/O to enable chaining together multiple systems. The XPand1011 dissipates heat from the conduction-cooled modules to sidewall heat exchangers, where it is quietly dissipated to the ambient environment by forced-air cooling.

The XPand1011 is currently available for purchase in several rapid-development standard configurations. Custom configurations of modules, RTMs, and backplanes are also available utilizing X-ES and third-party components.

Features

  • Development platform for two conduction-cooled 6U VPX modules
  • Compatible with multiple OpenVPX™ profiles
  • Utilizes RTMs (Rear Transition Modules) for I/O access
  • Utility plane I/O access for chaining multiple systems
  • Forced-air-cooled sidewall heat exchangers
  • Supports 0.8 in. or 1.0 in. pitch conduction-cooled VPX modules
  • Supports VITA 48.2 REDI
  • Standard VPX configurations in stock
  • Customizable with X-ES and third-party components
  • Power and reset switches
  • Power and reset LEDs
  • Per-slot voltage and current monitoring
  • Designed for lab use up to 30°C ambient
  • Input power is factory-configurable via an ATX supply or a VITA 62 power slot

Technical Specs

VPX Slot Features

Power

  • ATX or VITA 62 3U VPX or 6U VPX power slot configurations available
  • Per-slot voltage monitoring via I²C ADCs and test loops
  • Per-slot current monitoring via I²C ADCs and test loops

Physical Characteristics

  • Dimensions: 17.5 in. (L) x 5.6 in. (W) x 9.3 in. (H)
  • 17 lbs. with backplane

Accessories

  • ATX Power Supply (70003134)

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram

Additional Information

Datasheet


View the XPand1011
Datasheet PDF

Download Datasheet

VPX Development Systems

View the full selection of VPX Development Systems by X-ES

View All
