6U CPCI REAR TRANSITION MODULE · SKU 90060030
XIt1003

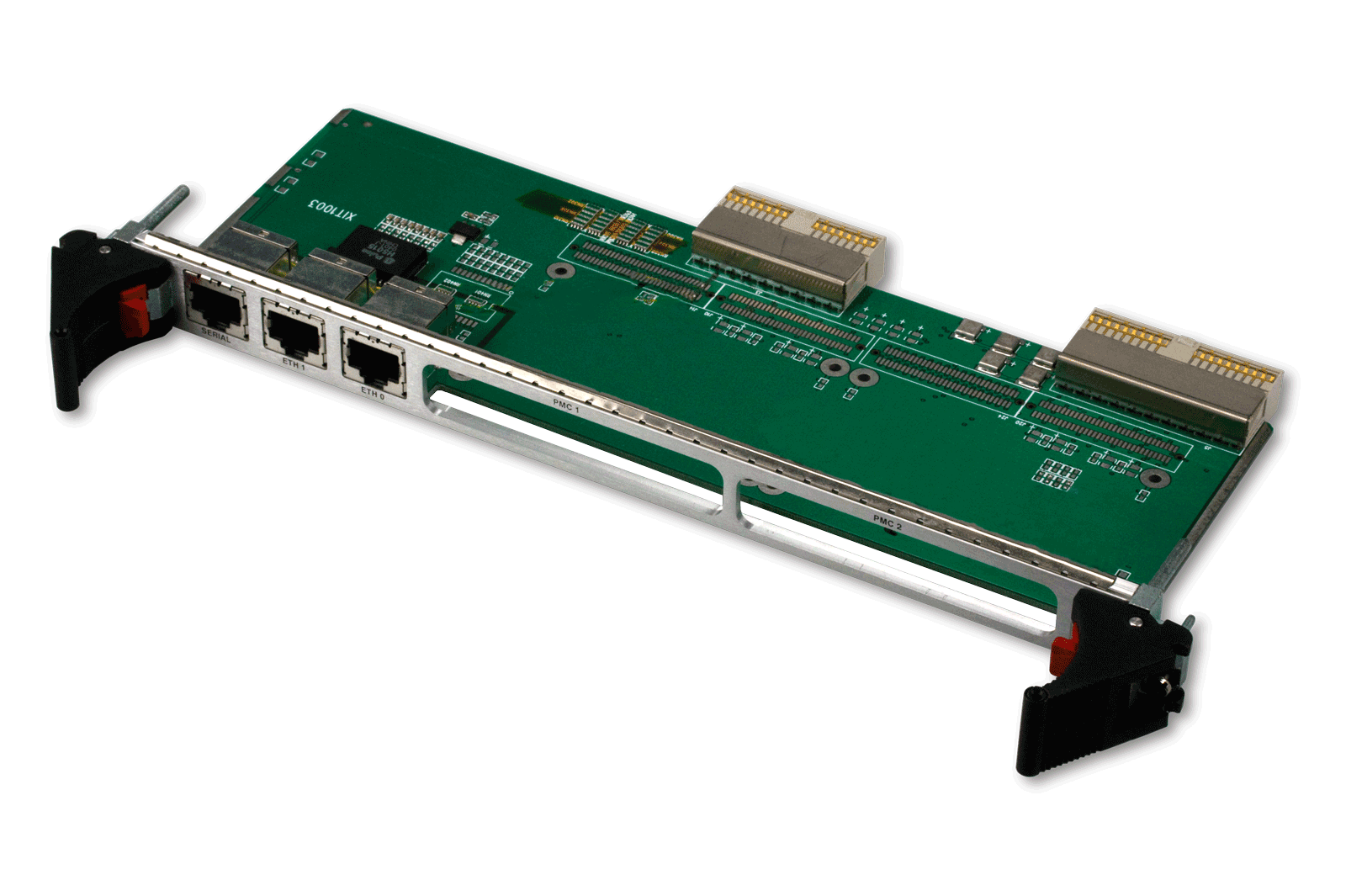

The XIt1003 is a 6U cPCI transition module that hosts two PIM interfaces and supports backplane I/O for several devices in X-ES’ product line.
Product Lifecycle
X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Introduction to XIt1003
The XIt1003 is a 6U cPCI transition module that hosts two PIM interfaces and supports backplane I/O for several devices in X-ES’ product line.
PIM Interfaces
The XIt1003 supports two PIM interfaces to bring P14 I/O from two PMC modules out the rear panel. The PIM interfaces can support all standard PMC I/O modules.
Ethernet I/O
The transition module also breaks out PICMG 2.16 Gigabit Ethernet ports via RJ-45 connectors. Isolation on the Ethernet signals is a configurable option.
PIM Support
- Supports two PMC I/O Module (PIM) interfaces
6U Backplane I/O Support
- Two PICMG 2.16 Gigabit Ethernet ports via RJ-45 connectors
Physical Characteristics
- 6U cPCI
- Mechanically compliant to PICMG 2.0
- Dimensions: 233.35 mm x 80 mm
Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements.
- Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
- Conformal coating available as an ordering option
XIt1003
6U CompactPCI Rear Transition Module (RTM) for Two PMC I/O Modules
