XIt4000

COM Express® I/O Module with Gigabit Ethernet and Local Bus

The XIt4000 is used to break out the non-standard additional Ethernet ports for Type 5FS and Type 10FS to RJ-45 connectors.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90060315 Categories: ,

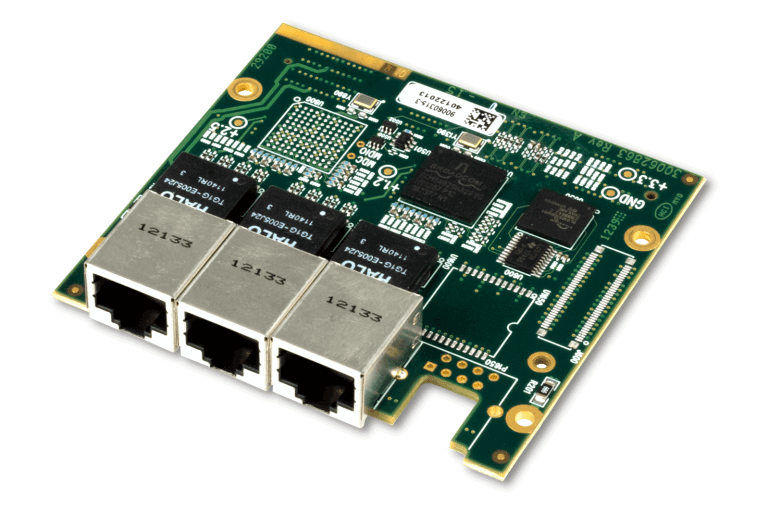

XIt4000 COM Express RTM

The XIt4000 is a COM Express® I/O module, which is intended to support the Type 5FS and Type 10FS X-ES implementations of the COM Express® standard. The XIt4000 is used to break out the non-standard additional Ethernet ports for Type 5FS and Type 10FS to RJ-45 connectors.

Features

  • COM Express® I/O module
  • Two 10/100/1000BASE-T Ethernet ports to RJ-45 connectors
  • Four 1000BASE-X Ethernet to 1000BASE-T Ethernet ports to RJ-45 connectors
  • Enhanced Local Bus header for development

Technical Specs

Ethernet

  • Two 10/100/1000BASE-T Ethernet ports to RJ-45 connectors
  • Four 1000BASE-X Ethernet to analog 1000BASE-T Ethernet breakout ports to RJ-45 connectors

Local Bus

  • Header to accommodate Local Bus development
  • 128 MB NOR flash

Physical Characteristics

  • COM Express® I/O module
  • Dimensions: 74 mm x 69 mm

Environmental Requirements

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
  • Conformal coating available as an ordering option

Accessories

Please contact X-ES Sales at sales@xes-inc.com or by phone at +1-608-833-1155 for information on this product's accessories.

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram

Additional Information

Datasheet

View the XIt4000
Datasheet PDF

Download Datasheet
