Features
- Freescale MPC8548E PowerQUICC III processor at up to 1.333 GHz
- Two front-panel Gigabit Ethernet interfaces
- 133-MHz, 64-bit PCI-X
- x8 PCI Express or x4 Serial RapidIO
- Up to 2 GB DDR2-400/533 SDRAM
- 512-KB L2 cache
- Double-precision FPU
- 16-256 MB soldered NOR flash
- Up to 2 GB NAND flash
- 2 UARTs
- VxWorks driver and BSP
- INTEGRITY BSP
- Linux LSP
Description

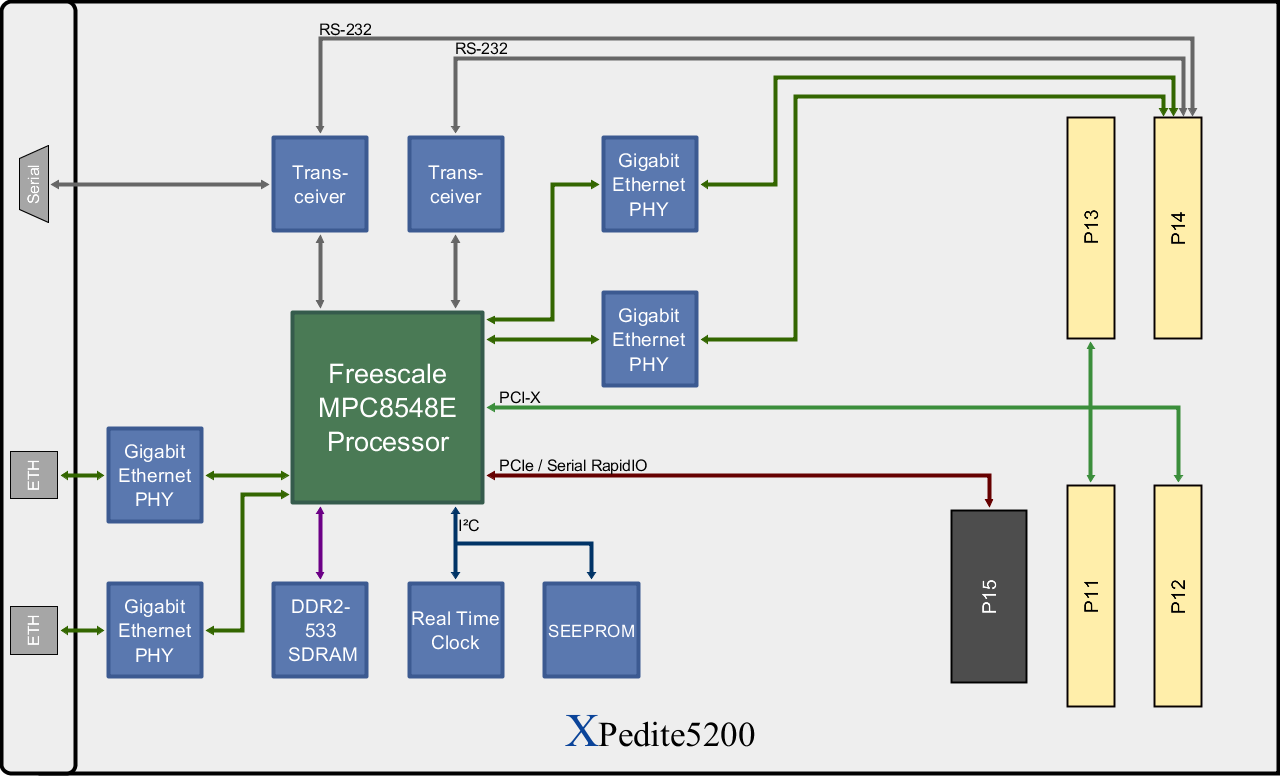

The XPedite5200 is a high-performance Processor PCI Mezzanine Card (PrPMC) / Express Mezzanine Card (XMC) featuring the Freescale MPC8548E PowerQUICC III processor running at up to 1.333 GHz. The on-board PowerQUICC III provides integrated 64-bit PCI-X, DDR2-400/533 SDRAM, PCI Express / Serial RapidIO, and four Gigabit Ethernet interfaces, making the XPedite5200 an optimal solution for communications processing and general computing applications alike.
When used as an XMC (VITA 42) module, either the x8 PCI Express or x4 Serial RapidIO interfaces can be used, in parallel or in substitution of the PCI-X interface. With software supplied by Extreme Engineering Solutions, the XPedite5200 can be installed on standard VME and CompactPCI (cPCI) platforms as well as custom motherboards that support PMC sites.
The XPedite5200 provides two Gigabit Ethernet interfaces via the front panel and supports an additional two via the P14 backplane connector.
Technical Specifications
Processor
- Freescale MPC8548E PowerQUICC III processor
- Embedded PowerPC e500 core at 1.0 to 1.333 GHz
- 3065 MIPS at 1.333 GHz
- 32 KB L1 instruction/data caches
- 512 KB L2 cache
- Double-precision floating point unit
- Integrated MMU
- DDR2-533 SDRAM interface
- x8 PCI Express or x4 Serial RapidIO
- 133-MHz, 64-bit PCI-X 1.0a interface
- Four 10/100/1000-Mbps, IEEE 802.3-compliant Ethernet controllers
- Two serial controllers
- Two I²C controllers
Memory
- 512 MB to 2 GB DDR2-400/533 SDRAM
- 16-256 MB NOR flash
- 1-2 GB NAND flash
- 2 KB serial EEPROM
XMC
- x8 PCI Express (VITA 42.3)
- x4 Serial RapidIO (VITA 42.2)
- IPMI support
- GPIO on user data
RTC
- M41T00 I²C Timekeeper
- 60-hour clock retention
Front Panel I/O
- Two Gigabit Ethernet ports
- One RS-232 serial port
- Link and activity LEDs
Rear I/O
- Two Gigabit Ethernet ports
- Four GPIO pins
- Two RS-232 serial ports
Software Support
- VxWorks driver and BSP
- INTEGRITY BSP
- Linux LSP
Physical Characteristics
- PMC/XMC form factor
- Dimensions: 149 mm x 74 mm, 10-mm stacking height
Environmental Requirements
- Operating temperature: 0 to 55 ºC (ambient, at board)
- Humidity: 0% to 85%
- Storage temperature: -40 to 70 ºC
Power Requirements
- +3.3 V, 1.125 A, 3.7125 W
- +5.0 V, 0.89 A, 4.45 W
