XCalibur4301

The XCalibur4301 is a high-performance, 6U CompactPCI, single-board, multiprocessing computer that is ideal for ruggedized systems requiring high bandwidth processing and low power consumption. With the Intel Core i7 processor, the XCalibur4301 delivers enhanced performance and efficiency for today's network information processing and embedded computing applications.

The XCalibur4301 provides two separate channels of up to 8 GB of DDR3-1066 ECC SDRAM, two PrPMC/PrXMC slots, 32 MB of NOR flash, and up to 128 GB of NAND flash. The XCalibur4301 also supports Gigabit Ethernet, I²C, USB, PMC I/O, XMC I/O, and DVI dual-head graphics out the connectors.

The XCalibur4301 is a powerful, feature-rich solution for the next generation of compute-intensive embedded applications. Operating system support for Wind River VxWorks, QNX Neutrino, Linux, and Windows drivers is available.

• Intel Core i7-610E, -620LE, -620UE, and -660UE processors
• Dual-core with hyper-threading technology
• CompactPCI 6U module
• Conduction or air cooling
• Up to 8 GB of DDR3-1066 ECC SDRAM in two channels
• 32 MB NOR boot flash
• Up to 128 GB of NAND flash
• Front-panel Gigabit Ethernet port
• Dual rear-panel Gigabit Ethernet ports
• Two PMC/XMC interfaces
• Front and rear graphics ports
• Complies with PICMG 2.0, 2.1, 2.3, 2.9, 2.16
• Linux BSP
• Wind River VxWorks BSP
• QNX Neutrino BSP
• Green Hills INTEGRITY BSP
• Microsoft Windows drivers

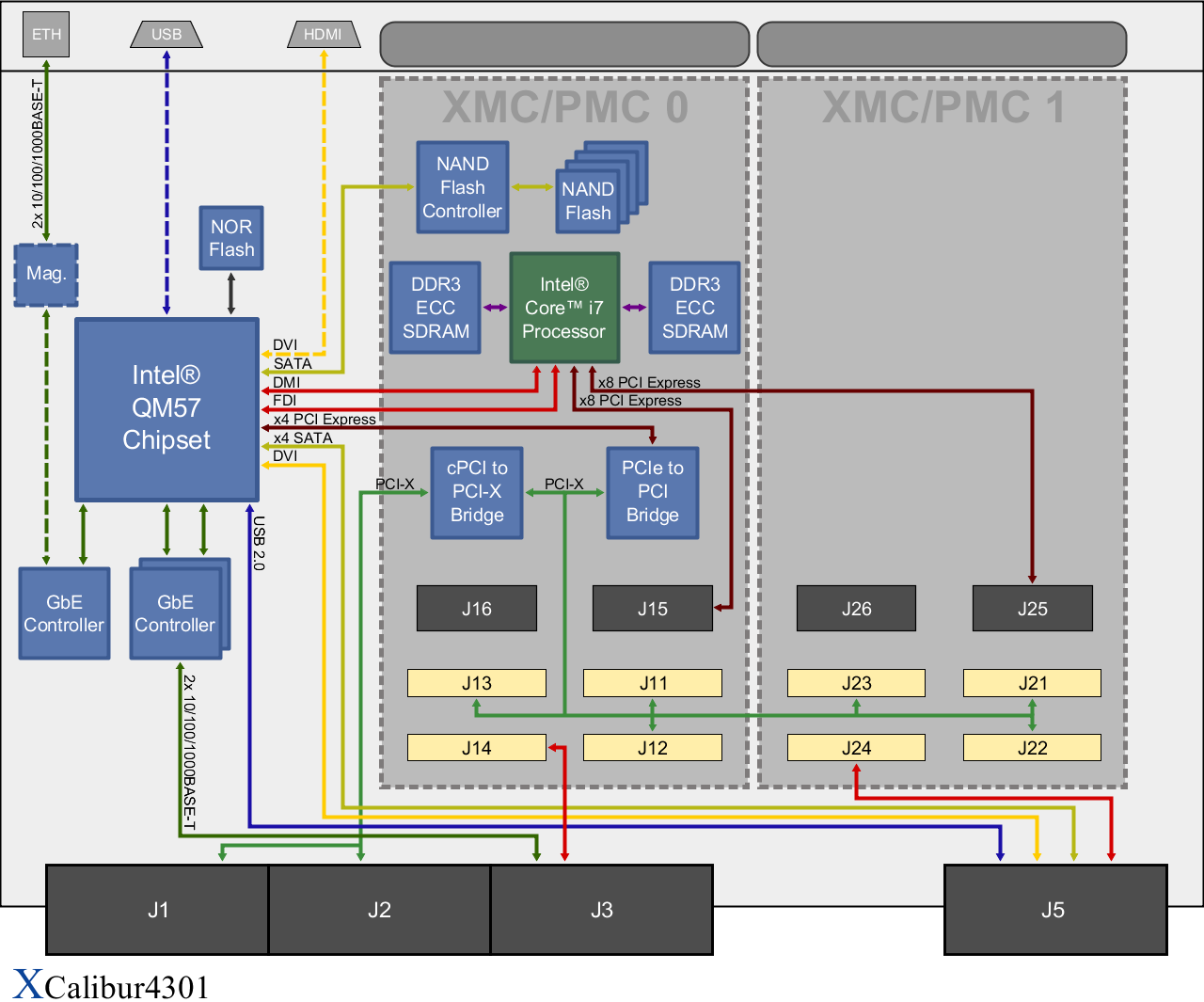

Click on the image above to view a larger version.

Processor

• Intel Core i7 processor operating at 2.53, 2.0, 1.06, or 1.33 GHz
• Dual-core with hyper-threading technology
• Intel QM57 chipset
• Dual-channel integrated memory controller
• Integrated graphics controller
• 4 MB of shared cache

Memory

• Two channels of DDR3-1066 ECC SDRAM, up to 8 GB
• 32 MB NOR flash
• Up to 128 GB of NAND flash
• 16 kB I²C EEPROM

cPCI

• 66 MHz 64-bit PCI interface to J1 and J2
• PICMG 2.1 (Hot swap support)
• PICMG 2.3 (PMC I/O to P3 and P5)
• PICMG 2.9 (Dedicated IPMI Controller)
• PICMG 2.16 (Two 10/100/1000 Base-T Ethernet ports)

PMC

• PCI-X (32/64-bit, 66/100-MHz)
• PCI (32/64-bit, 33/66-MHz)

XMC

• x8 Gen2 at 2.5 GT/s PCI Express port to J15 and J25

Graphics

• Front- and rear-panel DVI

Front Panel I/O (Optional)

• HDMI video
• Gigabit Ethernet
• USB 2.0

Back Panel

• Two RS-232/422/485 serial ports
• Two 10/100/1000BASE-T Ethernet ports
• PMC I/O
• DVI video
• Four SATA 3.0 Gb/s ports
• Two USB 2.0 ports

Software Support

• Linux BSP
• Wind River VxWorks BSP
• QNX Neutrino BSP
• Green Hills INTEGRITY
• Microsoft Windows drivers

Environmental Requirements

• Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
• Conformal coating available as an ordering option

Power Requirements

• Power will vary based on CPU frequency and application. Please consult factory.
