XIt4104

The XIt4104 provides an expansive array of I/O connectors for X-ES's XCalibur4101 6U cPCI SBC module hosting dual 8-port Ethernet switch mezzanines. The XIt4014 shown above supports rear-panel connectors for two SBC Ethernet ports and 16 Ethernet ports from two mezzanines, one USB port, one DVI port, one eSATA port, and two RS-232/422/485 serial ports. Additional board connectors are provided for a second USB port and a second SATA port.

• 6U transition module
• One dual-link DVI connector
• Two PICMG 2.16 10/100/1000BASE-T Ethernet ports for module I/O
• Sixteen 10/100/1000BASE-T Ethernet ports from mezzanine I/O
• One USB 2.0 type A connector and one internal type A connector
• One eSATA connector and one internal SATA connector
• Two micro-DB-9 connectors for two RS-232/RS-422/RS-485 ports
• GPIO header

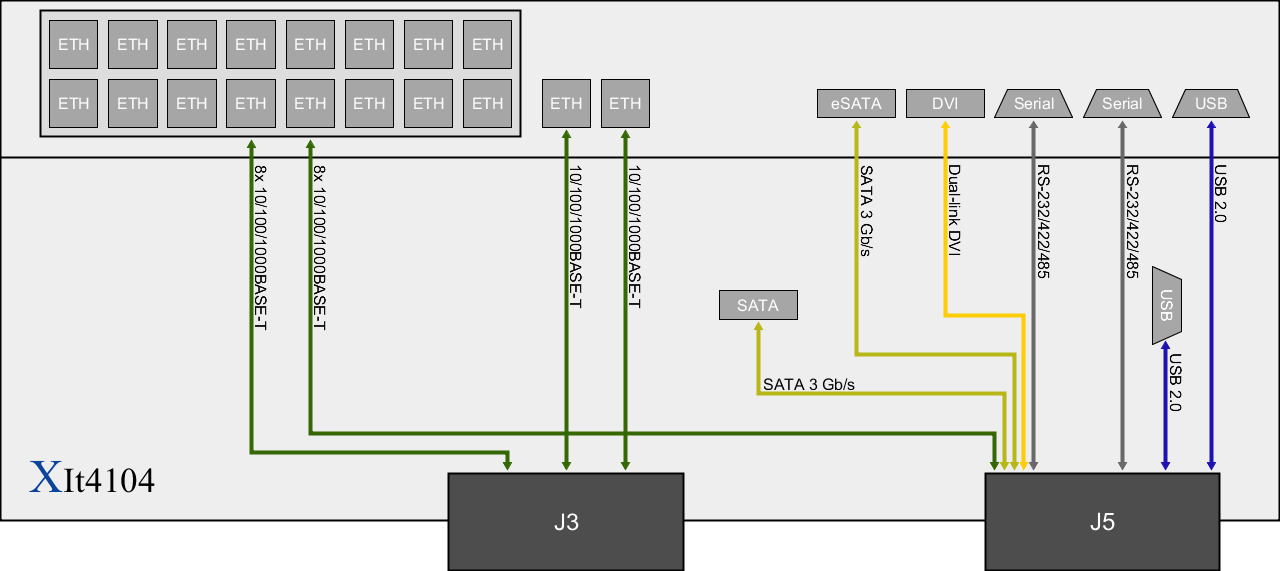

Click on the image above to view a larger version.

DVI Graphics

• One external dual-link DVI-D connector

SATA

• One external eSATA connector
• One internal SATA connector

Ethernet

• Two RJ-45 Gigabit Ethernet connectors for module I/O
• Sixteen RJ-45 Gigabit Ethernet connectors for mezzanine I/O

USB

• One external USB type A connector
• One internal USB type A connector

Serial

• Two external micro-DB-9 serial connectors

Physical Characteristics

• 6U cPCI transition module form factor
• Dimensions: 233.35 mm x 80 mm

Environmental Requirements

• Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
• Conformal coating available as an ordering option
