XChange4000

Conduction- or Air-Cooled 6U VME PMC Carrier Card

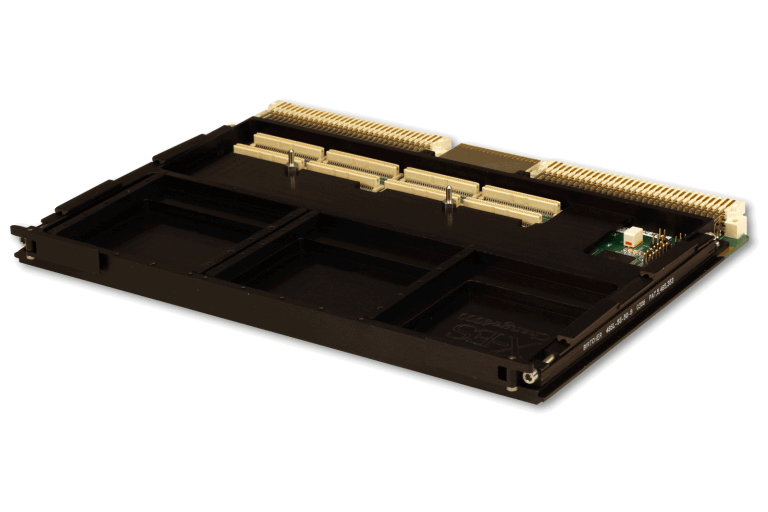

The XChange4000 is a versatile conduction- or air-cooled 6U VME64x dual PCI-X PrPMC carrier card. With PCI-X support between the two PrPMC slots and the VME64x 2eSST bridge, the XChange4000 is ideal for applications requiring the high bandwidth and flexibility that PrPMC modules offer.

Not Recommended for New Designs

Please contact X-ES Sales for assistance with choosing a recommended replacement product.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90050095 Category:
XChange4000 6U VME PMC Carrier Card

The XChange4000 is a versatile conduction- or air-cooled 6U VME64x dual PCI-X PrPMC carrier card. With PCI-X support between the two PrPMC slots and the VME64x 2eSST bridge, the XChange4000 is ideal for applications requiring the high bandwidth and flexibility that PrPMC modules offer.

The XChange4000 includes a local +3.3 V power supply, so backplane +3.3 V is not required. When high-powered PrPMCs are required, the XChange4000 may be built up to use backplane 3.3 V power instead of the local supply.

Features

  • 6U VME64x, supporting VME64, VME64x, and 2eSST
  • Two Processor PCI Mezzanine Card (PrPMC) sites
  • Conduction or air cooling
  • 32/64-bit local PCI bus
  • 33/66 MHz PCI operation
  • 66/100 MHz PCI-X operation
  • VITA 31.1 Gigabit Ethernet backplanes

Technical Specs

VME

  • VME64 (ANSI/VITA 1-1994 R2002)
  • VME64x (ANSI/VITA 1.1-1997 R2003)
  • 2eSST (ANSI/VITA 1.5-2003)

PCI

  • Either PrPMC may be monarch
  • 64- or 32-bit wide PCI bus
  • 33 MHz or 66 MHz frequency PCI operation
  • 66 MHz or 100 MHz frequency PCI-X operation
  • 133 MHz PCI-X operation possible when a single, supported PrPMC is used
  • +3.3 V PCI VIO

IPMI

  • IPMI system management support options are available

Physical Characteristics

  • 6U VME form factor
  • Dimensions: 233.35 mm x 160 mm
  • 10 mm stacking height

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
  • Conformal coating available as an ordering option

Power Requirements

  • 5 V, 0.6 A, 3 W

Accessories

Please contact X-ES Sales at sales@xes-inc.com or by phone at +1-608-833-1155 for information on this product's accessories.

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram

Additional Information

Datasheet

View the XChange4000
Datasheet PDF

Download Datasheet
