XCalibur1331

NXP (formerly) Freescale MPC8640D Processor-Based Conduction- or Air-Cooled 6U VME Single Board Computer (SBC)

The XCalibur1331 provides up to 4 GB DDR2-533 ECC SDRAM in two separate channels, two XMC/PrPMC slots, as well as 256 MB of NOR flash (with redundancy). The XCalibur1331 also supports four Gigabit Ethernet ports, I²C, XMC I/O, PMC I/O, and two RS-232/422/485 serial ports out the front panel and/or P2/P0 connectors.

End of Life

Please contact X-ES Sales for assistance with choosing a recommended replacement product.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90050165 Category:

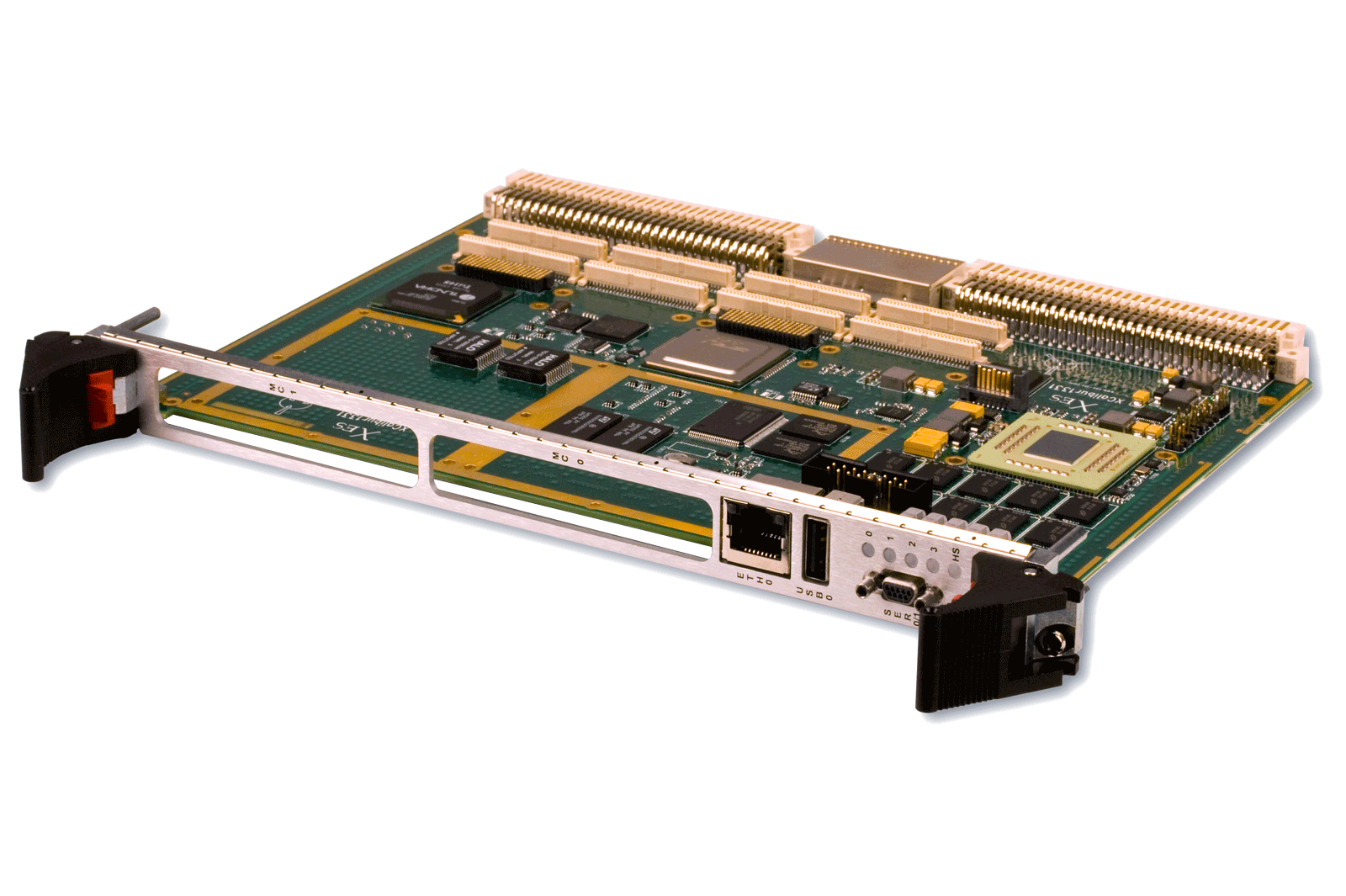

XCalibur1331 6U VME SBC

The XCalibur1331 is a high-performance, multiprocessing, 6U VME, single board computer that is ideal for ruggedized systems requiring high bandwidth processing and low power consumption. With dual PowerPC e600 cores running at up to 1.25 GHz, the NXP (formerly Freescale) MPC8640D delivers enhanced performance with AltiVec technology and IEEE 754 dual-precision Floating-Point Unit, and it offers efficiency for today’s network information processing and other embedded computing applications.

The XCalibur1331 provides up to 4 GB DDR2-533 ECC SDRAM in two separate channels, two XMC/PrPMC slots, as well as 256 MB of NOR flash (with redundancy). The XCalibur1331 also supports four Gigabit Ethernet ports, I²C, XMC I/O, PMC I/O, and up to three serial ports out the front panel and/or P2/P0 connectors.

The XCalibur1331 is a powerful, feature-rich solution for the next generation of compute-intensive embedded applications. Operating system support for Wind River VxWorks, Green Hills INTEGRITY, QNX Neutrino, and Linux is available.

Features

  • NXP MPC8640D processor with dual PowerPC e600 cores at up to 1.25 GHz
  • 6U VME module
  • Conduction or air cooling
  • Up to 4 GB DDR2-533 ECC SDRAM in two channels
  • Up to 256 MB of NOR flash (with redundancy)
  • Up to 4 GB of NAND flash
  • Four Gigabit Ethernet ports
  • Dual-precision Floating-Point Unit (FPU)
  • Integrated AltiVec unit
  • x8 PCI Express XMC sites
  • Two RS-232/422/485 serial ports
  • Two XMC/PrPMC interfaces
  • Linux BSP
  • Wind River VxWorks BSP
  • QNX Neutrino BSP
  • Green Hills INTEGRITY BSP

Technical Specs

Processor

  • NXP MPC8640D processor
  • Dual PowerPC e600 cores at up to 1.25 GHz
  • 1 MB of L2 cache per core
  • Integrated AltiVec unit
  • IEEE 754 Floating-Point Unit

Memory

  • Up to 4 GB of DDR2 ECC SDRAM in two channels
  • Up to 4 GB of NAND flash
  • Up to 256 MB of NOR flash (with redundancy)
  • 16 kB I²C SEEPROM

XMC/PrPMC

  • PCI-X (64/32-bit, 100/66 MHz)
  • PCI (64/32-bit, 66/33 MHz)
  • x8 PCIe interface to P15 and P25 (XMC)

VME

  • VME64 (VITA 1-1994 R2002)
  • VME64x (VITA 1.1-1997 R2003)
  • 2eSST (VITA 1.5-2003)
  • Ethernet on VME64x (VITA 31.1-2003)
  • PMC I/O on VME (VITA 35-2000)

Front Panel

  • Two RS-232 serial ports
  • One Gigabit Ethernet port
  • General purpose LEDs

Back Panel

  • Two RS-232/422/485 serial ports
  • Three Gigabit Ethernet ports
  • PMC I/O

Software Support

  • Linux BSP
  • Wind River VxWorks BSP
  • QNX Neutrino BSP
  • Greens Hills INTEGRITY BSP

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
  • Conformal coating available as an ordering option

Power Requirements

  • Power will vary based on configuration and usage. Please consult factory.

Accessories

Please contact X-ES Sales at sales@xes-inc.com or by phone at +1-608-833-1155 for information on this product's accessories.

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram

Additional Information

Datasheet

View the XCalibur1331
Datasheet PDF

Download Datasheet

6U VME SBCs

View the full selection of 6U VME SBCs from X-ES

View All
