1U RACKMOUNT SERVER · SKU 90075815

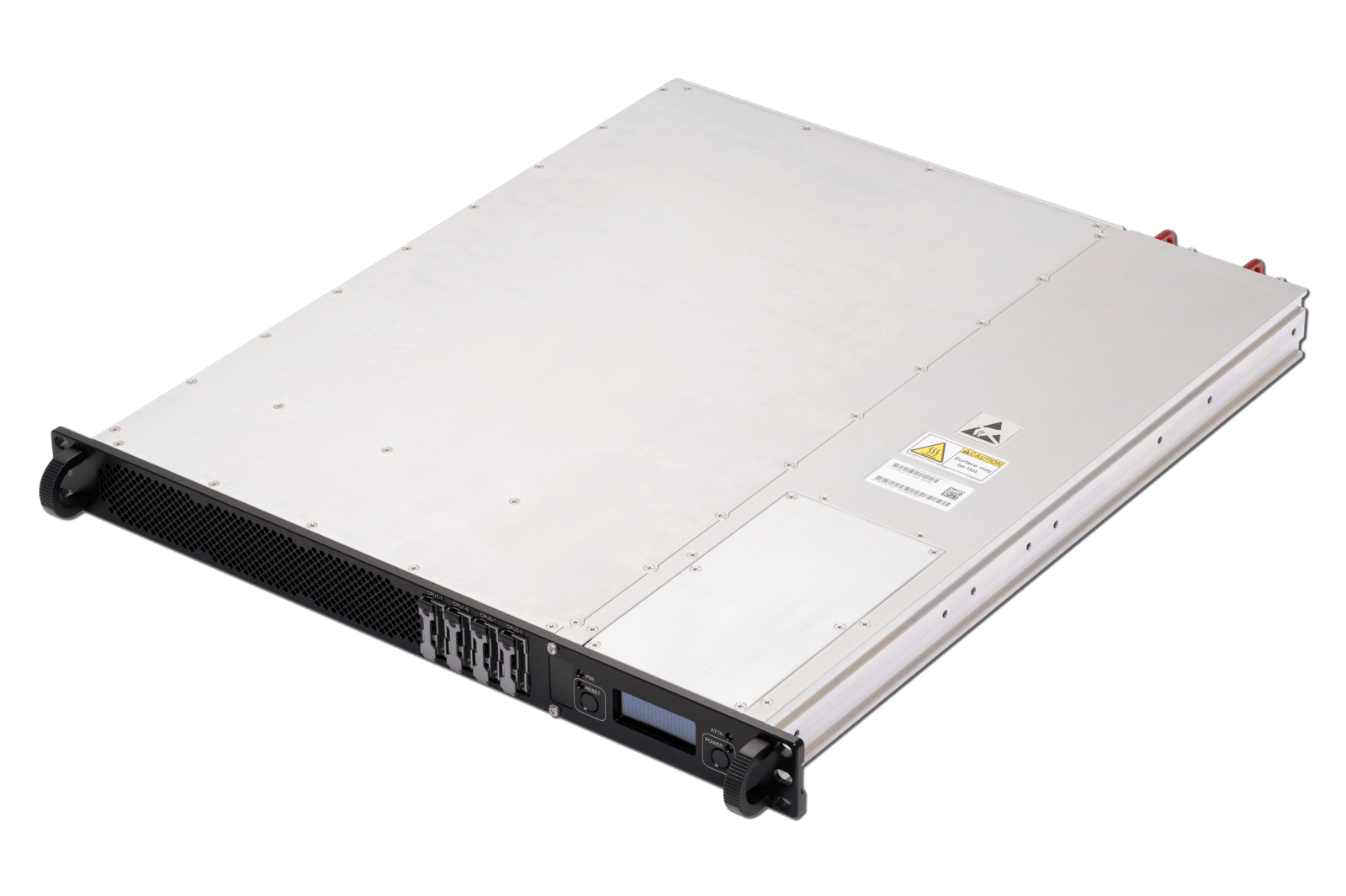

XPand9320
The XPand9320 provides an industry-leading combination of security, performance, and flexibility for a rackmount server. It features dual Intel® Xeon® D-2800 series (formerly Eddy Lake) processors with a tightly coupled AMD (formerly Xilinx) Versal™ Prime VM1402 security ACAP, and four 100 Gigabit Ethernet ports.
Product Lifecycle
X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Introduction to XPand9320
The XPand9320 provides an industry-leading combination of security, performance, and flexibility for a rackmount server.
It features dual Intel® Xeon® D-2800 series (formerly Eddy Lake) processors with a tightly coupled AMD (formerly Xilinx) Versal™ Prime VM1402 security ACAP, and four 100 Gigabit Ethernet ports.
Ruggedized, Standards-Based Design
Supporting a standard 1U rackmount form factor with a PCI Express Gen4-capable expansion site, the XPand9320 is a true Open Systems Architecture (OSA) design.
It also integrates ruggedization features that enable it to perform in environmentally challenging applications without modifications or enhancements.
Software Support
X-ES Enterprise Linux (XEL) and Linux Yocto Board Support Packages (BSPs) are standard.
Please contact the factory for additional OS support options.
Processor
- Dual Intel® Xeon® D-2800 series (formerly Eddy Lake) processors
- Up to 128 GB of DDR4 ECC SDRAM across four channels per socket, for a total of 256 GB
Rear I/O
- Four 100 Gigabit Ethernet ports to QSFP cages
- Two 10/100/1000BASE-T Ethernet ports
- Two FPGA 1000BASE-T Ethernet ports
- Two IPMC 10/100BASE-TX Ethernet ports
- Three USB 2.0 ports
- Four RS-232 serial ports
- Eight RS-232 ports via two quad UARTs on a USB-C hub
Internal Storage
- Four E1.S bays (x4 Gen3-capable PCIe each)
- One 256 GB eMMC SSD per Intel CPU, one FPGA 256 GB eMMC SSD (three eMMCs total)
IPMI
- PICMG 3.0 R3.0-based IPMI support
PCI Express Expansion Sites
- One x16 PCI Express Gen4-capable full-height full-length (FHFL) single-slot expansion site
- One OCP 3 expansion site with x16 PCI Express Gen4-capable interface
FPGA
- AMD (formerly Xilinx) Versal® Prime VM1402 security ACAP
- 16 GB of LPDDR4 ECC SDRAM in two channels
- Two 1000BASE-T Ethernet ports
- 4 Gbit of QSPI FPGA configuration flash
- One x4 PCI Express Gen3-capable interface to each processor subsystem (two total)
Physical Characteristics
- 1U rackmount server (20 in. deep)
- Air-cooled
- Dimensions: 20 in. (L) x 17.43 in. (W) x 1.75 in. (H)
Environmental Requirements
Contact factory if your requirements are outside of our advertised levels.
- Operating temperature range of 0°C to 55°C (contact factory for details)
- Storage temperature of -40°C to +85°C ambient
- Conformal coating available as an ordering option for the motherboard
Software Support
- X-ES Enterprise Linux (XEL) BSP for Xeon® D subsystems
- Linux Yocto BSP for Versal® subsystem
- Contact factory for additional OS support
Power
- Redundant power supplies
- Power will vary based on configuration and usage. Please consult factory
Accessories
- XTend230 (90074610) – Development Module for Programming and Diagnostic Interfaces
- XTend300 (90070180) – Dual RS-232 Serial Adapter for X-ES Products with Micro-DB-9 Connectors
XPand9320
Intel® Xeon® D-2800 Processor-Based 1U Rackmount Server with Quad 100GbE and PCI Express Expansion Site
