6U VPX REAR TRANSITION MODULE  ·  SKU 90060485

XIt1052

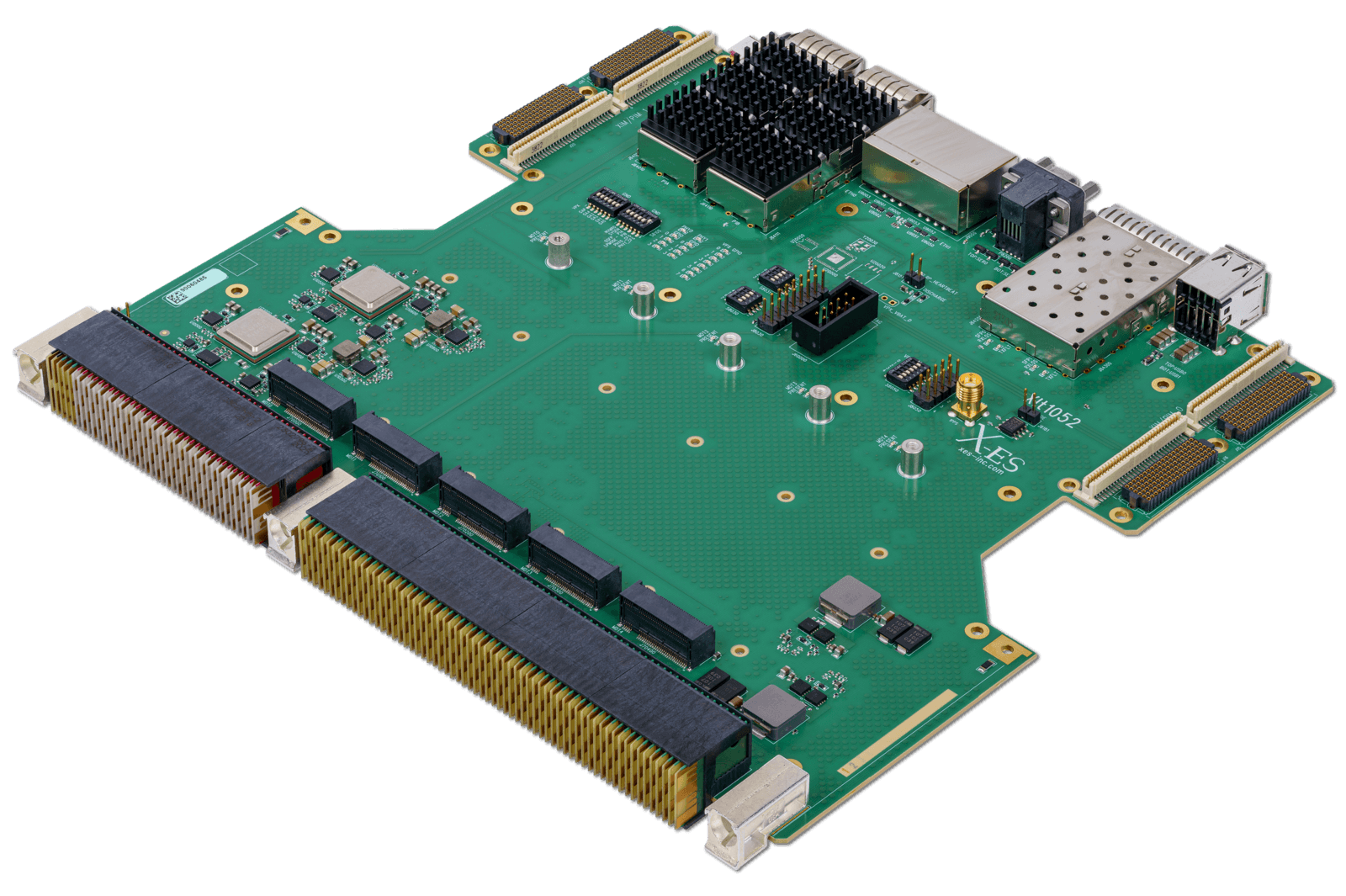

The XIt1052 provides I/O expansion for 6U VPX single board computers based on the Intel® Xeon® D-2800 series (formerly Eddy Lake) and D-1700 series (formerly Ice Lake-D) of processors.



01At a Glance

Form Factor
6U VPX
VITA 46

Compatible Host Modules
Select X-ES Processor Boards
Contact Sales for exact pairings

Ruggedization
Development
Air-cooled

Product Lifecycle

X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.

Engineered for Extended Reliability

All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.

Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.



02Core Capabilities

Introduction to XIt1053

The XIt1052 provides I/O expansion for 6U VPX single board computers based on the Intel® Xeon® D-2800 series (formerly Eddy Lake) and D-1700 series (formerly Ice Lake-D) of processors.

Its elongated design fits in VITA 46.10 RTM slots and allows for convenient access to more I/O connectors than standard VITA 46.10 RTMs.

I/O Connectivity

The XIt1052 features two SFP+ connectors for two 1000BASE-KX Ethernet ports, plus two zQSFP+ connectors that can be configured for either two 100GBASE-KR4 Ethernet ports or eight 25GBASE-KR Ethernet ports. Two RJ-45 connectors support a pair of 10/100/1000BASE-T Ethernet ports.

The XIt1052 also supports two RS-232/422/485 serial ports and two USB 2.0 ports.

Additional I/O

Two XIM/PIM sites allow for access to the P64s signals from P3 and P5 and access to the X8d and X12d signals from P4 and P6. Optional XIM trays can be installed to support XIM/PIM modules (contact factory for details).

Multiple M.2 sites can support up to five x4 PCI Express interfaces.



03Block Diagram



04Technical Specifications

Back Panel I/O

  • Two zQSFP+ connectors for two 100GBASE-KR4 Ethernet ports or eight 25GBASE-KR Ethernet ports
  • Two SFP+ connectors for two 1000BASE-KX Ethernet ports
  • Two USB 2.0 ports
  • Two micro-DB-9 connectors for two RS-232/422/485 serial ports
  • Two RJ-45 connectors for two 10/100/1000BASE-T Ethernet ports
  • Two XIM/PIM sites to support X8d, X12d, and P64s breakout

Internal I/O

  • Five M.2 sites to support five x4 PCI Express interfaces
  • GPIO header

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
  • Conformal coating available as an ordering option

Physical Characteristics

  • 6U VPX RTM form factor
  • Fits in VITA 46.10 RTM slots
  • Overall dimensions: 233.20 mm x 212.28 mm (does not include backplane connectors)
  • 1.0 in. pitch

Accessories

  • Cable (30075004) – Serial, Micro D to DB-9, F to M, 3 ft.



XIt1052 is also available as a fully customizable, derivative design.

Through our derivative design services, X-ES can modify the standard pinout, I/O, form factor, and other key attributes to meet specific requirements, providing the proven performance of a COTS foundation with the tailored fit of a custom solution.



05Request Information

XIt1052 6U VPX Rear Transition Module (RTM)

XIt1052

6U VPX Rear Transition Module with 100 Gigabit or 40 Gigabit Ethernet, USB, Serial, and XIM/PIM Sites

Connect with a product expert today



06Documentation & Resources

Access technical documentation, board support packages, software, and other resources for working with the XIt1052. All X-ES products are backed by our four-hour customer support guarantee.

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documentation

SupportNet is your source for hardware manuals, technical support, and software downloads.

Access SupportNet

6U VPX RTMs

View the full selection of 6U VPX Rear Transition Modules from X-ES.

View All
