XIt3012

3U VPX Rear Transition Module for the XChange3012

The XIt3012 provides access to the two 10/100/1000BASE-T ports from the XChange3012 integrated PCI Express and Gigabit Ethernet switch. The XIt3012 also provides a micro-DB-9 connector for interfacing with RS-232 I/O from an XMC installed on the XChange3012.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90060190 Categories: ,

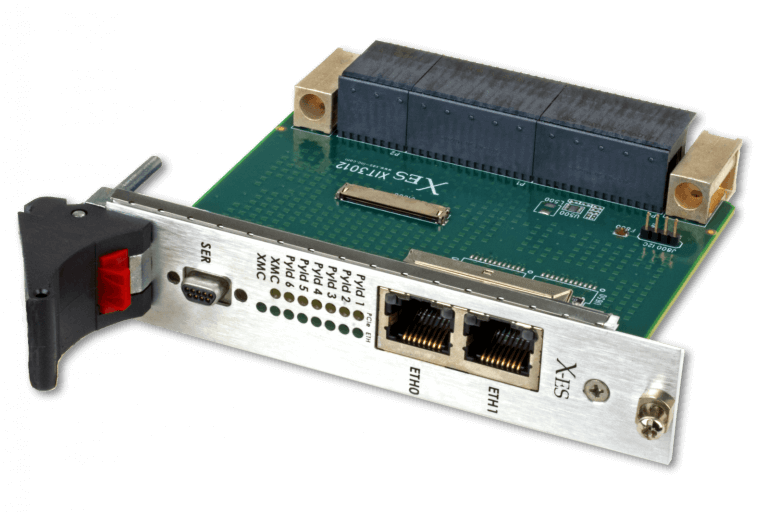

XIt3012 3U VPX RTM for XChange3012

The XIt3012 provides access to the two 10/100/1000BASE-T ports from the XChange3012 integrated PCI Express and Gigabit Ethernet switch. The XIt3012 also provides a micro-DB-9 connector for interfacing with RS-232 I/O from an XMC installed on the XChange3012.

Features

  • 3U VPX Rear Transition Module (RTM)
  • Support for 3U VPX integrated PCI Express and Gigabit Ethernet fabric switch
  • Two RJ-45 connectors for dual 10/100/1000BASE-T ports from the XChange3012
  • One micro-DB-9 connector for RS-232 port from an optional XMC mounted on the XChange3012
  • 1.0 in. pitch

Technical Specs

Back Panel I/O

  • Two RJ-45 connectors for two 10/100/1000BASE-T ports
  • One micro-DB-9 connector for XMC RS-232 port

Physical Characteristics

  • 3U VPX RTM (VITA 46.10) form factor
  • Dimensions: 100 mm x 81.5 mm
  • 1.0 in. pitch

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
  • Conformal coating available as an ordering option

Accessories

  • Cable (90000075) - Serial, Micro D to DB-9, F to M, 3 ft.

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram

Additional Information

Datasheet

View the XIt3012
Datasheet PDF

Download Datasheet

3U VPX RTMs

View the full selection of 3U VPX RTMs from X-ES

View All
