XPand6104

Intel® Core™ i7 COM Express® Module (XPedite7450) Small Form Factor System (SFF)

The natural convection-cooled XPand6104 is an Intel® Core™ i7 processor COM Express® system based on the XPedite7450 module.

An Ethernet port, two serial ports, a USB port, graphics port, and a SATA port from the XPedite7450 are brought out to standard commercial connectors on the front panel.

End of Life

Please contact X-ES Sales for assistance with choosing a recommended replacement product.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90071445 Category:
XPand6104 Small Form Factor (SFF) Rugged System

The natural convection-cooled XPand6104 is an Intel® Core™ i7 processor COM Express® system based on the XPedite7450 module. The XPedite7450 supports quad- and dual-core 2nd and 3rd generation Intel® Core™ i7 processors with up to 16 GB of DDR3-1600 memory. An Ethernet port, two serial ports, a USB port, graphics port, and a SATA port from the XPedite7450 are brought out to standard commercial connectors on the front panel.

An optional 1.8 in. or Slim SATA SSD memory module provides the convenience of high-capacity off-the-shelf storage and the ruggedness of solid-state non-volatile memory. X-ES maximizes power supply performance per cubic inch, supporting an integrated MIL-STD-704 28 VDC power supply and MIL-STD-461 EMI filtering. An external 110 VAC input AC/DC power supply is provided for convenience.

Features

  • Natural convection-cooled Small Form Factor (SFF)
  • Includes XPedite7450, a ruggedized Intel® Core™ i7 processor COM Express® module
  • 1.8 in. or Slim SATA SSD memory module (optional)
  • Integrated MIL-STD-704 28 VDC power supply
  • Integrated MIL-STD-461E/F EMI filtering
  • Standard commercial front panel I/O connectors
  • Back panel power connector

Technical Specs

Physical Characteristics

Dimensions do not include connectors

  • 7.70 in. (L) x 4.88 in. (W) x 2.10 in. (H)
  • Weighs less than 4 lbs.

Configuration

  • Includes XPedite7450 Intel® Core™ i7 ruggedized COM Express® module
  • 1.8 in. SSD module

Front Panel I/O

  • One RJ-45 Ethernet connector to 10/100/1000BASE-T Gigabit Ethernet port
  • One USB 2.0 connector to USB 2.0 port
  • One eSATA connector to SATA port capable of 3 Gb/s
  • Two micro-DB-9 connectors to RS-232 serial ports
  • One DisplayPort connector for graphics
  • Reset and power switches
  • Status LEDs

Power Supply Options

  • Integrated MIL-STD-704 28 VDC input voltage power supply with MIL-STD-461 EMI filtering
  • External AC/DC 110 VAC input voltage power supply for development

Accessories

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

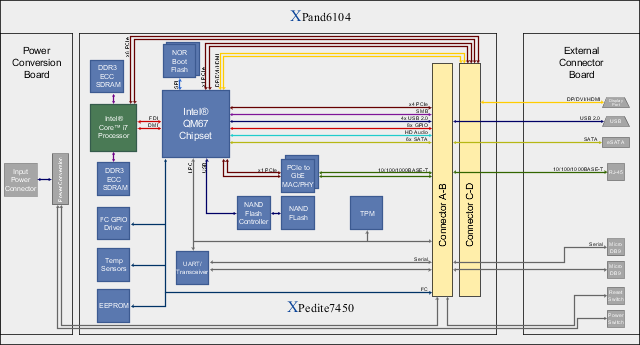

Block Diagram

Additional Information

Product Brief


Rugged COTS Systems
Product Brief


View Brief

Datasheet


View the XPand6104
Datasheet PDF


Download Datasheet

COM Express® Rugged Systems

View the full selection of
COM Express® Rugged Systems from X-ES

View All
