XCalibur1700

NXP (formerly Freescale) QorIQ P2020 Processor-Based Conduction- or Air-Cooled 6U cPCI Single Board Computer (SBC)

The XCalibur1700 provides up to 8 GB DDR3-800 ECC SDRAM, two XMC/PrPMC slots, as well as 512 MB of NOR flash (with redundancy). The XCalibur1700 also supports three Gigabit Ethernet ports, I²C, XMC I/O, PMC I/O, and RS-232/422/485 serial ports out the front panel or J5 connector.

End of Life

Please contact X-ES Sales for assistance with choosing a recommended replacement product.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90050250 Category:

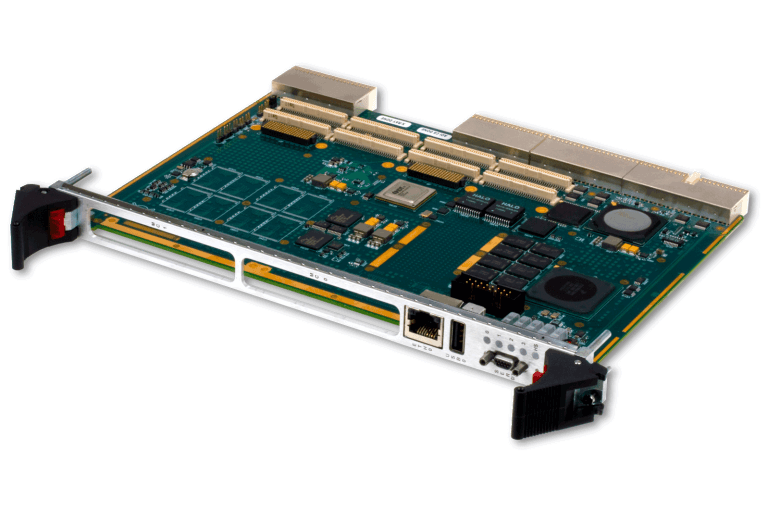

XCalibur1700 6U cPCI SBC

The XCalibur1700 is a high-performance, multiprocessing, 6U CompactPCI, single board computer that is ideal for ruggedized systems requiring high bandwidth processing and low power consumption. With dual Power Architecture® e500 cores running at up to 1.2 GHz, the NXP (formerly Freescale) QorIQ P2020 delivers enhanced performance and efficiency for today’s embedded computing applications.

The XCalibur1700 provides up to 8 GB DDR3-800 ECC SDRAM, two XMC/PrPMC slots, as well as 512 MB of NOR flash (with redundancy). The XCalibur1700 also supports three Gigabit Ethernet ports, I²C, XMC I/O, PMC I/O, and RS-232/422/485 serial ports out the front panel or J5 connector.

The XCalibur1700 is a powerful, feature-rich solution for the next generation of compute-intensive embedded applications. For customers seeking a lower power option, the XCalibur1700 can be designed with the NXP QorIQ P1020 processor offering a reduction of approximately 7 W. Operating system support for Wind River VxWorks, Green Hills INTEGRITY-178, QNX Neutrino, and Linux is available.

Features

  • NXP QorIQ P2020 processor with dual Power Architecture® e500 cores at up to 1.2 GHz
  • Conduction or air cooling
  • Up to 8 GB DDR3-800 ECC SDRAM
  • Up to 512 MB of NOR flash (with redundancy)
  • Up to 32 GB of CPU NAND flash
  • Three Gigabit Ethernet ports
  • x4 PCI Express to XMC sites
  • One USB 2.0 port
  • Two RS-232/422/485 serial ports
  • Two XMC/PrPMC interfaces
  • Linux BSP
  • Wind River VxWorks BSP
  • QNX Neutrino BSP
  • Green Hills INTEGRITY-178 BSP

Technical Specs

Processor

  • NXP (formerly Freescale) QorIQ P2020 processor
  • Dual Power Architecture® e500 cores at up to 1.2 GHz
  • 512 kB of shared L2 cache

Memory

  • Up to 8 GB DDR3-800 ECC SDRAM
  • Up to 512 MB of NOR flash (with redundancy)
  • Up to 32 GB of NAND flash

cPCI

  • 66 MHz 64-bit PCI interface to J1 and J2
  • PICMG 2.1 (Hot Swap support)
  • PICMG 2.3 (PMC I/O to J3 and J5)
  • PICMG 2.9 (dedicated IPMI controller)
  • PICMG 2.16 (two 10/100/1000BASE-T Ethernet ports)

XMC/PrPMC

  • PCI-X (64/32-bit, 100/66 MHz)
  • PCI (64/32-bit, 66/33 MHz)
  • x4 PCI Express to J15 and J25 (XMC)

Front Panel

  • Two RS-232/422/485 serial ports
  • One Gigabit Ethernet port
  • One USB 2.0 port
  • General purpose LEDs

Back Panel

  • Two RS-232/422/485 serial ports
  • Two Gigabit Ethernet ports
  • PMC I/O
  • One USB 2.0 port (optional)

Software Support

  • Linux BSP
  • Wind River VxWorks BSP
  • QNX Neutrino BSP
  • Greens Hills INTEGRITY-178 BSP

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
  • Conformal coating available as an ordering option

Power Requirements

  • Power will vary based on configuration and usage. Please consult factory.

Accessories

  • XIt4103 (90060165) - 6U cPCI RTM
  • XTend300 (90070180) - 1x Female DB-9 to 2x Male DB-9 Serial Port Converter
  • Cable (90000075) - Serial, Micro D to DB-9, F to M, 3 ft.
